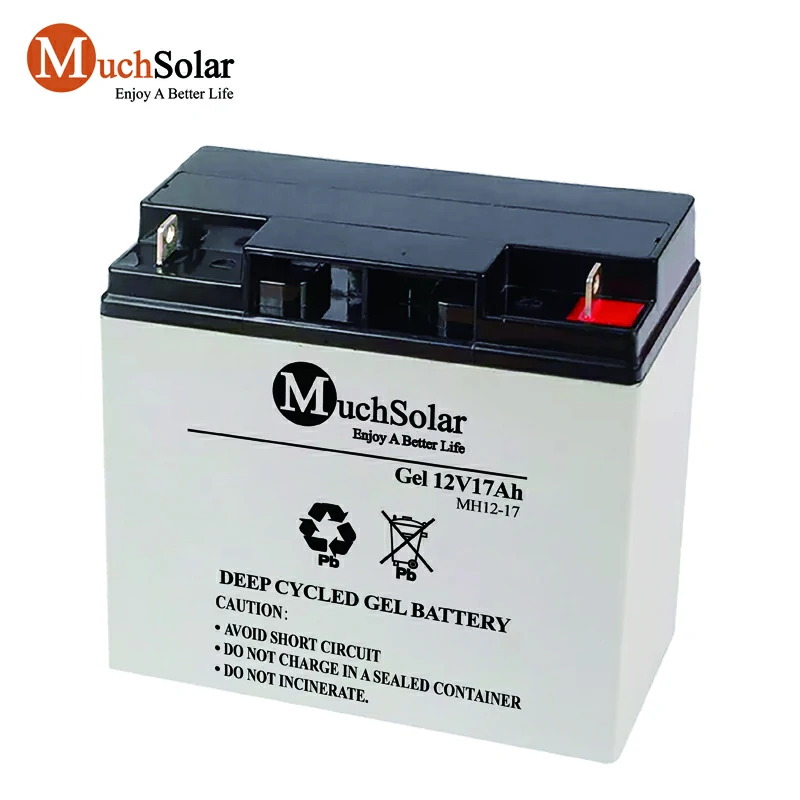

The Best 12V 20Ah 18Ah 17Ah Deep Cycle Sealed Lead Acid Gel Agm Storage Battery for Off Grid Solar Power

Description

Key Features :
♦Gelled electrolyte made by mixing sulfuric acid with silica fume.
♦The electrolyte is gel like ,immobile and does not leak ,enabling
uniform reaction of each part of the plate .
♦High rate discharge performance due to tight assembly technology
♦Strong heat dissipation and wide operating temperature range
♦Avoid acid mist being separated out , environment friendliness
♦Efficient venting system release excessive gas automatically

Applications :
♦EPS and UPS battery backup
♦Solar and wind energy storage system
♦Telecommunication Equipment
♦Power plant and transmission system
♦Signal system , emergency lighting system , security system

Parameter

Model:MH 12V 20AH / MH 12V 18AH / MH 12V 17AH
Capacity:20Ah /18AH /17AH
Container Material:ABS
Product size:181*76*167mm
Weight:5KG / 5.05KG / 5.1KG
Warranty (months):24 Months
Customized Packing & Brand Name:Yes
OEM & ODM Service:Yes

Much Solar 12V 17AH 18AH 20AH Agm Battery Specification
ModelMH12-17MH12-18MH12-20
Nominal Voltage12V12V12V
Nominal Capacity (10 hour rate)  17Ah18Ah20Ah
Battery(L×W×H)mm181*76*167
Weight5KG5.05KG5.1KG
Capacity 25℃(77°F)20 hour rate 17Ah18Ah20Ah
10 hour rate 14.4AH14.5AH16AH
5 hour rate 11.7AH11.8AH13AH
Internal ResistanceFull Charged Battery 25℃(77°F)≤5mΩ≤5mΩ≤5mΩ
Cyclic Life50%(C10) Depth of discharge700Times700Times700Times
Float Life25℃(77°F) Float charge at 13.8VAbout 5 YearsAbout 5 YearsAbout 5 Years
Capacity
affected by Temperature  (10 hour )
40℃ (104°F)102.00%102.00%102.00%
25℃ (77°F)100.00%100.00%100.00%
0℃ (32°F)85.00%85.00%85.00%
-15℃ (5°F)65.00%65.00%65.00%
Self-Discharge
25℃(77°F)
Capacity after 3 month storage90.00%90.00%90.00%
Capacity after 6 month storage80.00%80.00%80.00%
Capacity after 12 month storage62.00%62.00%62.00%
Charge
(Constant Voltage)
 25℃(77°F)
CycleInitial Charging Current
Less than 5.1A
Initial Charging Current
Less than 5.4A
Initial Charging Current
Less than 6A
Voltage 14.6-15.0VVoltage 14.6-15.0VVoltage 14.6-15.0V
FloatVoltage 13.5-13.8VVoltage 13.5-13.8VVoltage 13.5-13.8V
