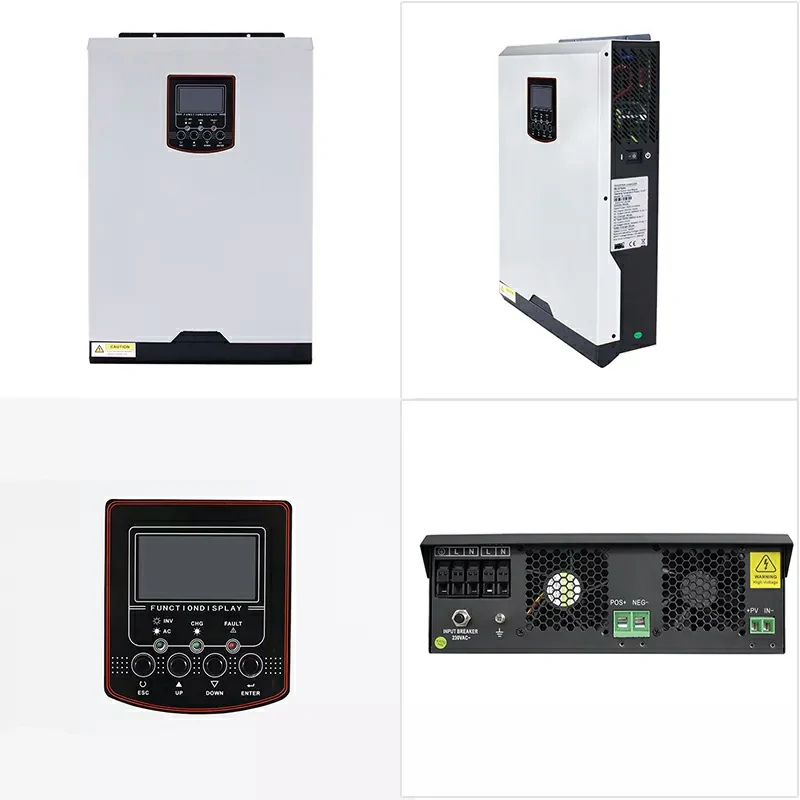

Hybrid Solar Inverter 3KVA 5KVA 5KW 3500W 5500W with Solar Battery Charging

Product Description

Features :
1.Pure sine wave inverter
2.Configurable input voltage range for home appliances and personal computers via LCD setting
3.Configurable battery charging current based on applications via LCD setting

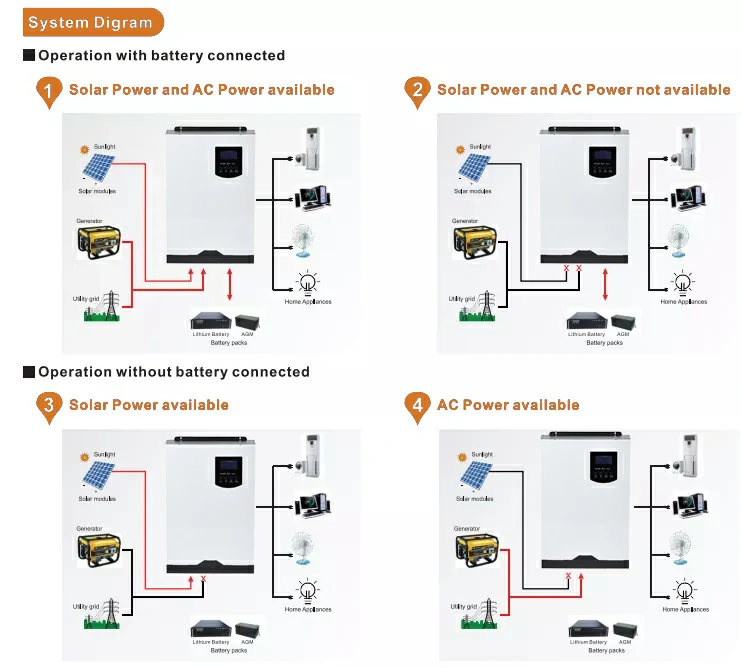

4.Configurable AC/Solar Charger priority via LCD setting
5.Compatible to mains voltage or generator power
6.Auto restart while AC is recovering
7.Overload / Over temperature / short circuit protection
8.mart battery charger design for optimized battery performance
9.Cold start function

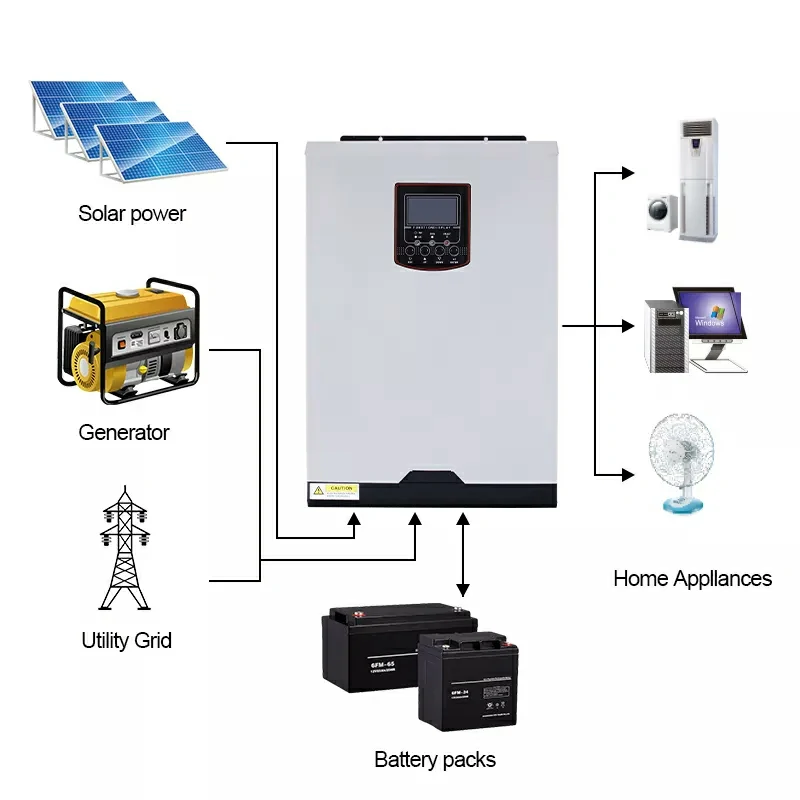

Application for :
This inverter can power all kinds of appliances in home or office environment, including motor-type appliances such as tube light, fan, refrigerator and air conditioner.

Key Features

Model:3500W / 5500W
Inverter Type :Pure Sine Wave Inverter
Controller Type: MPPT 500V 100A

Model	3.5KW	5.5KW
Rated Power	3500VA/3500W	5500VA/5500W
Input
Voltage	230VAC
Selectable Voltage Range	170～280VAC(For Personal Computers)
	90～280VAC(For Home Appliances)
Frequency Range	50Hz/60Hz(Auto sensing)
Output
AC Voltage Regulation(Batt.Mode)	230VAC±5%
Surge Power	7000VA	11000VA
Efficienc(Peak)PV to INV	97%
Efficienc(Peak)Battery to INV	94%
Transfer Time	10ms(For Pensonal Computers);20ms(For Home Appliances
Battery & AC Charger
Battery Voltage	24VDC	48VDC
Floating Charge Voltage	27VDC	54VDC
Overcharge Protection	33VDC	63VDC
Maximum Charge Current	100A	100A
Solar Charger
Maximum PV Array Power	5000W	6000W
MPPT Range @ Operating Voltage	120～450VDC
Maximum PV Array Open Circuit Voltage	500VDC
Maximum Charging Current	100A	100A
Maximum Efficiency	98%
Physical
Dimension,DWH(mm)	100300440
Package Dimension(mm)	575377207
N.W/G.W (KKG)	10.0/11.0	10.5/11.5
Communication Interface	USB/RS485
Operating Environment
Mumidity	5% to 95% Relative Humidity(Non～condensing)
Operating Temperature	0℃～55℃
Storage Temperature	-15℃～60℃
