Feature:
●Super fast maximum power tracking speed while ensuring tracking efficiency
●Accurate identification and trackina of the maximum power point of multi-wave peak
●Reliable maximum input power of pv array to ensure the safety ofequipment

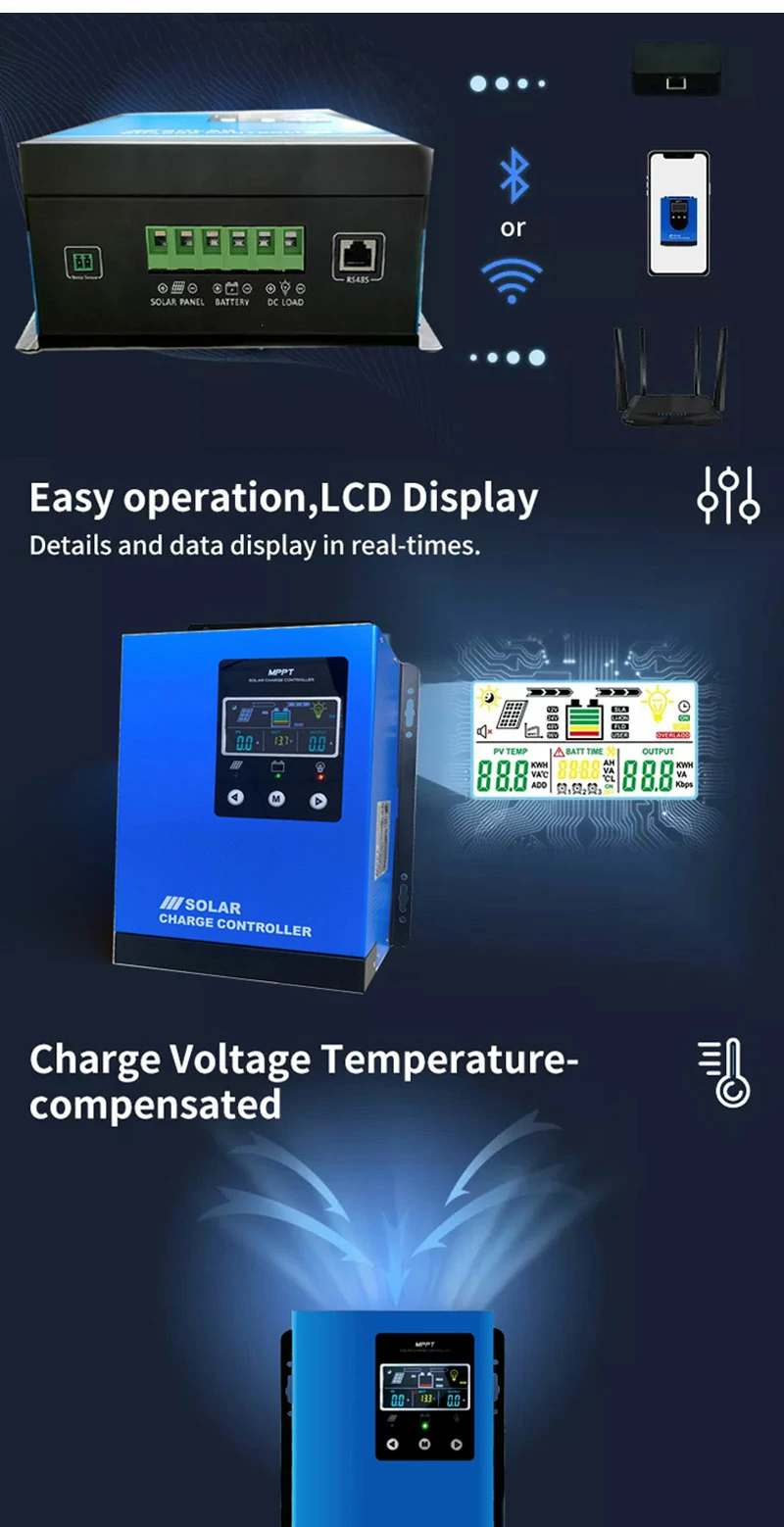

●The LCD is designed to dynamically display the operation data and working status of the
equipment
●Various load controlmodes:general modeliaht control mode. dual time mode, pure charger mode
●Seal.GEL.Flooded.LifePO4 and Li(NiCoMnO2 batterv types are available
●The function of battery temperature compensation.
● Power statistics recordingfunction
● solar charge controller MPPT support lithium ion battery and lead acid battery .
● 12V/24V/36V/48V 10A 20A 30A 40A 50A 60A 80A 100A 120A 150A 180A 200A MPPT charger controller for solar panel system .
● identification system voltage, 12/24V/36v/48v automatic detection Humanized LCD display and double button operation of human .

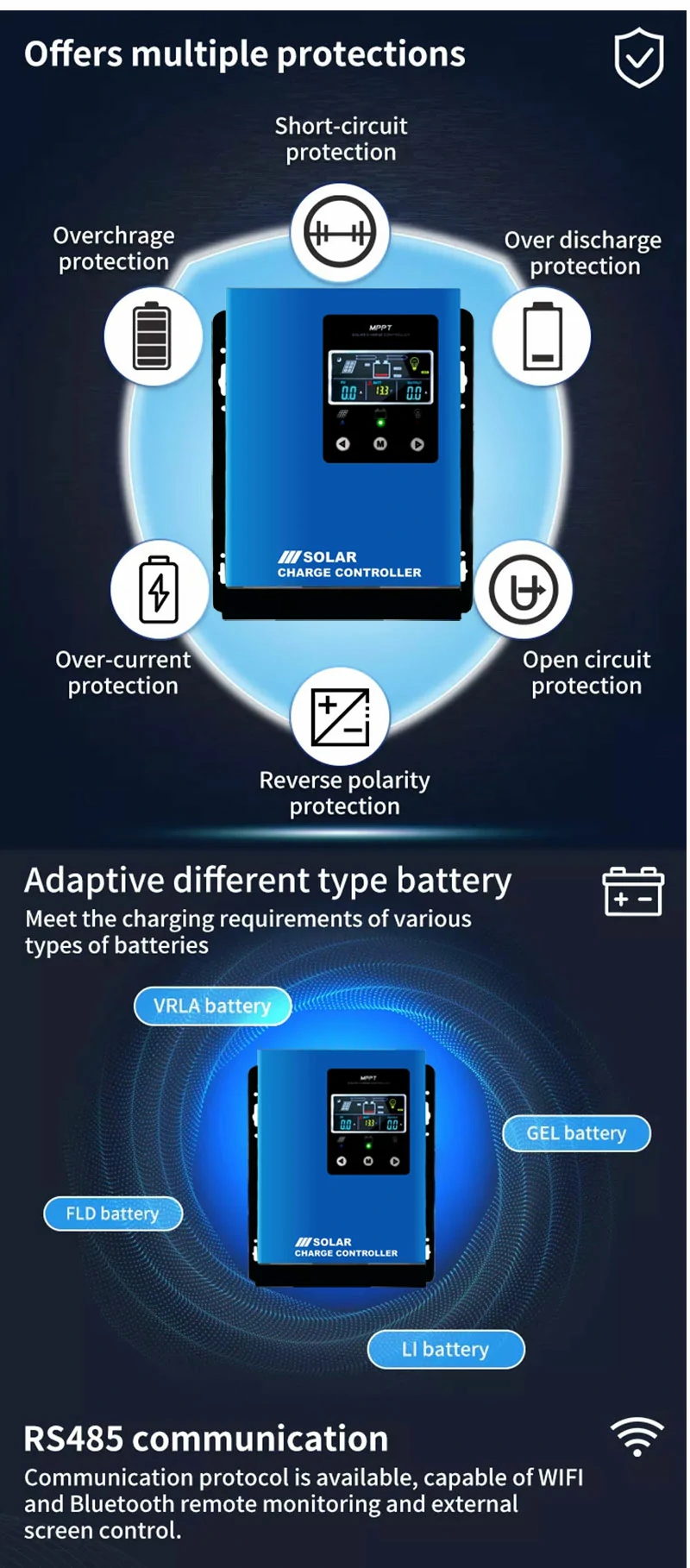

● machine interface Reliable overvoltage protection, short circuit protection, overload protection, overcharge protection,
overcharge protection, overcharge protection. Precise temperature compensation, automatic correction of charge and discharge

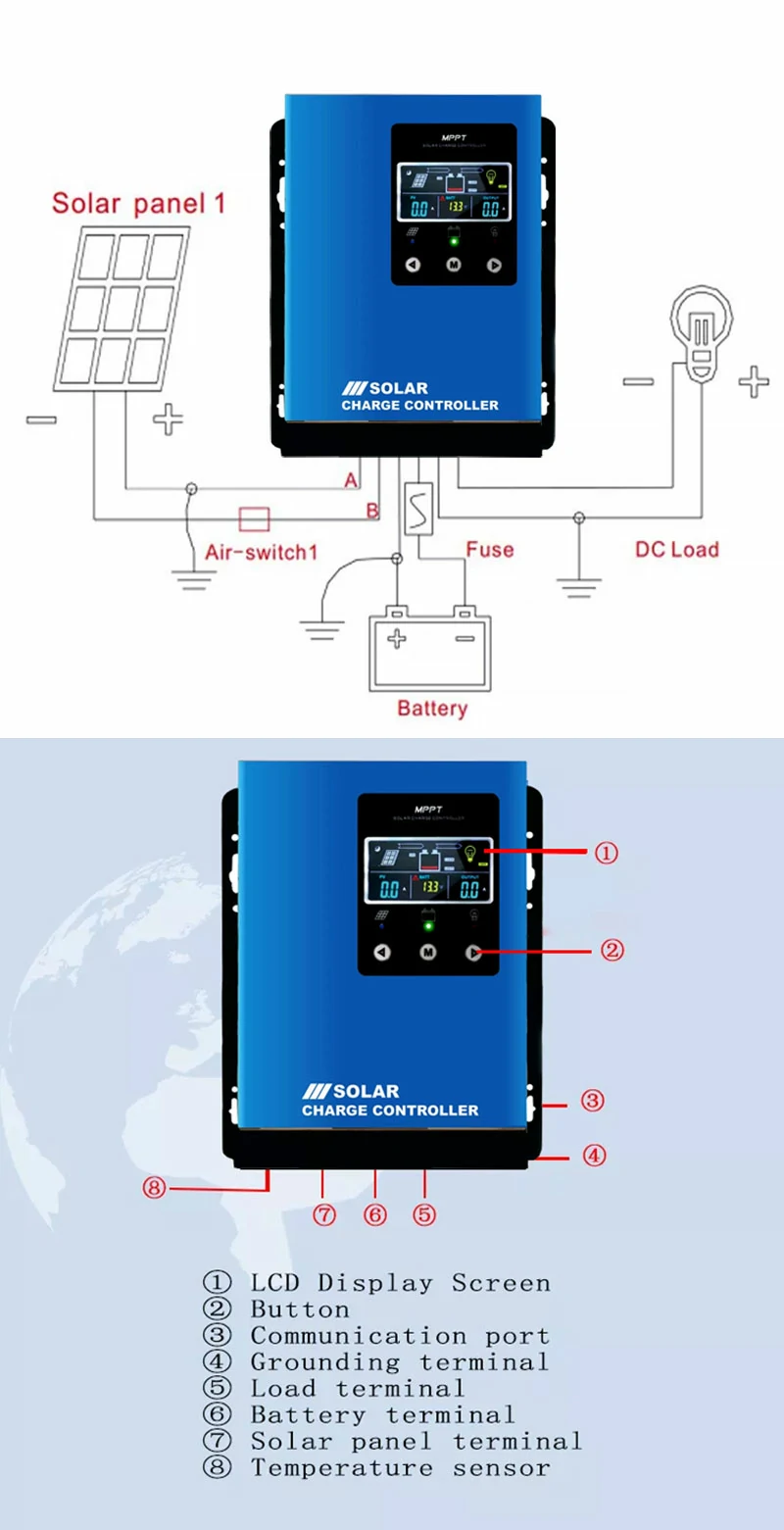

voltage, improves battery life Solar panels, battery and solar charge controllers plus poles are all connected together .
| Model | DC Voltage(Auto) | Maximum Charge Current | PV Maximum Input Voltage | Q’ty/Ctn | Carton Dimension |
| MH-MPK2-4048-30A | 12/24/48V | 30A | 150V | 8 | 585*475*300mm |
| MH-MPK2-4048-40A | 12/24/48V | 40A | 150V | 8 | 585*475*300mm |
| MH-MPK2-6048-50A | 12/24/48V | 50A | 150V | 4 | 585*475*300mm |
| MH-MPK2-6048-60A | 12/24/48V | 60A | 150V | 4 | 585*475*300mm |
| MH-MPK2-8048-80A | 12/24/48V | 80A | 150V | 4 | 565*435*375mm |
| MH-MPK2-10048-100A | 12/24/48V | 100A | 150V | 4 | 565*435*375mm |
