DC Brushless Solar Submersible Water Pump 24V 48V 72V 96V 110V - Factory Direct with External Controller

Features

4/6iSC Stainless Steel Impeller

4iSC Stainless Steel Impeller

4iLR Plastic Impeller

4iPC Plastic Impeller

3iSC Stainless Steel Impeller

3iPC Plastic Impeller

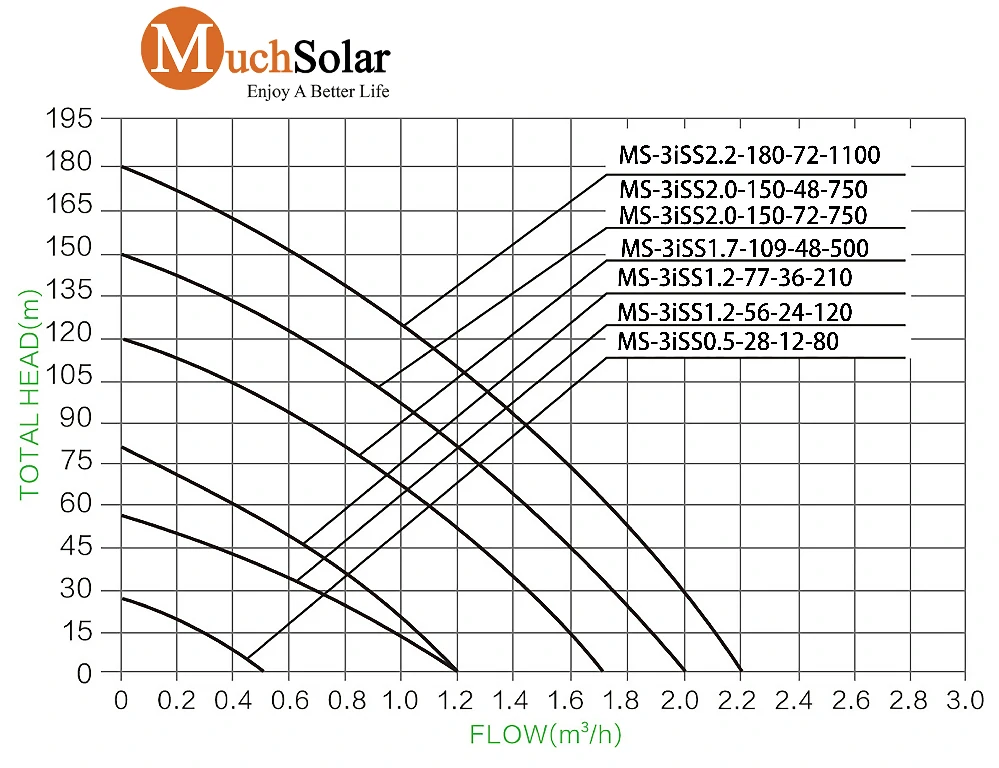

3iSS SCREW

Features

4/6iSC Stainless Steel Impeller

Much Solar 4/6″ — 4/6iSC Stainless Steel Impeller Solar Water Pump

#	Model	Pump Voltage (DC)	Optimum Input Voltage (Vmp)	Max. Power	Max. Flow	Head	Outlet	Cable	Solar Panel Open Circuit Voltage (VOC)	Solar Panel Power
1	MS-4/6iSC30-19-72-1100	72V	90V-120V	1100W	30m³/h	19m	3″	2m	<170V	≥1.3*Pump Power
2	MS-4/6iSC30-19-110-1100	110V	110V-150V	1100W	30m³/h	19m	3″	2m	<220V	≥1.3*Pump Power
3	MS-4/6iSC30-31-110-1500	110V	110V-150V	1500W	30m³/h	31m	3″	2m	<220V	≥1.3*Pump Power
4	MS-4/6iSC36-22-110-1500	110V	110V-150V	1500W	36m³/h	22m	3″	2m	<220V	≥1.3*Pump Power

Performance Data for 4/6iSC Stainless Steel Impeller Series Pump Much Solar

Model 1: MS-4/6iSC30-19-72-1100 (Max Flow: 30 m³/h, Max Head: 19m)
Head (m)	1	3	5	7	9	11	13	15	17	19
Flow (m³/h)	30.00	28.33	26.66	24.99	23.32	21.65	19.98	18.31	16.64	0.10

Model 2: MS-4/6iSC30-19-110-1100 (Max Flow: 30 m³/h, Max Head: 19m)
Head (m)	1	3	5	7	9	11	13	15	17	19
Flow (m³/h)	30.00	28.34	26.67	25.00	23.33	21.66	19.99	18.32	16.65	0.10

Model 3: MS-4/6iSC30-31-110-1500 (Max Flow: 30 m³/h, Max Head: 31m)
Head (m)	1	4	7	10	13	16	19	22	25	31
Flow (m³/h)	30.00	28.00	26.00	24.00	22.00	20.00	18.00	16.00	14.00	0.10

Model 4: MS-4/6iSC36-22-110-1500 (Max Flow: 36 m³/h, Max Head: 22m)
Head (m)	1	3	5	7	9	11	13	15	17	22
Flow (m³/h)	36.00	34.29	32.58	30.87	29.16	27.45	25.74	24.03	22.32	0.10

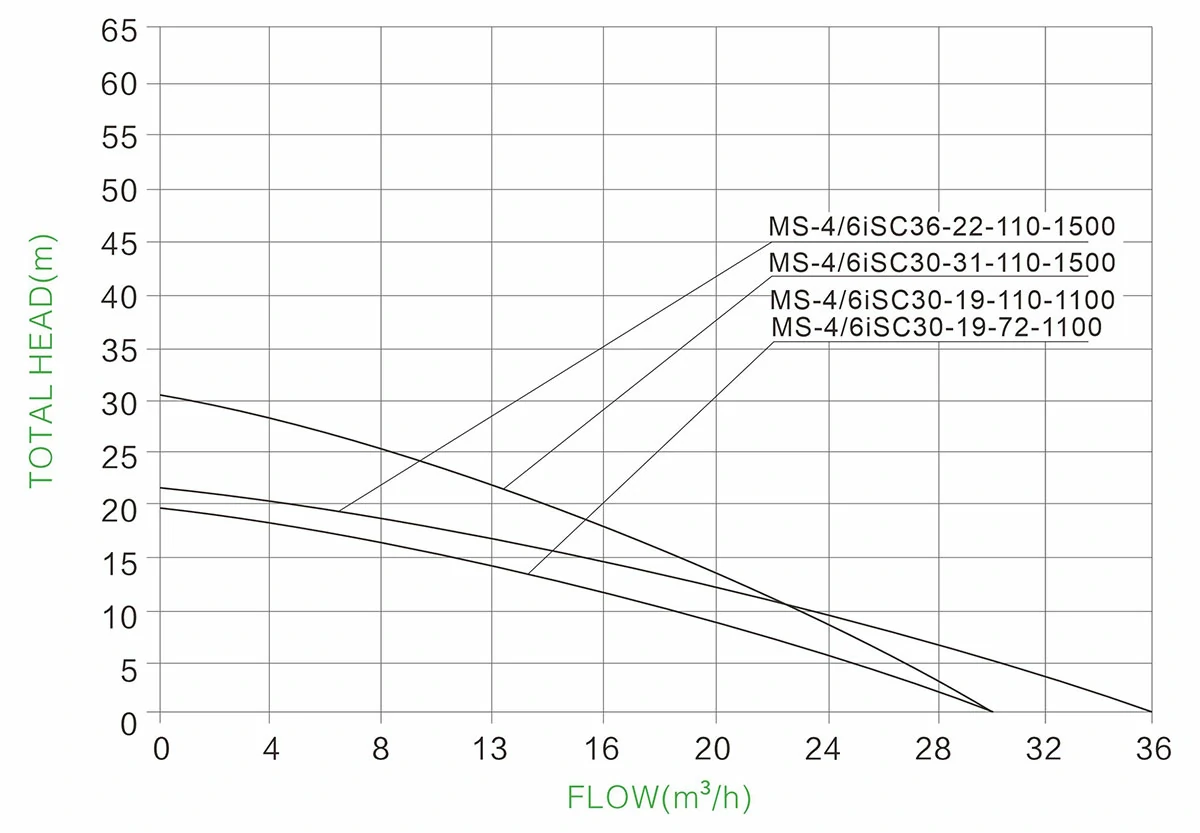

Much Solar 4/6 inch — 4/6iSC Stainless Steel Impeller SOLAR PUMP HYDRAULIC PERFORMANCE CURVES

1743423990 Much Solar 4to 6 inch — 4 6iSC Stainless Steel Impeller SOLAR PUMP HYDRAULIC PERFORMANCE CURVES

4iSC Stainless Steel Impeller

Much Solar 4″ — 4iSC Stainless Steel Impeller Solar Water Pump

#	Model	Pump Voltage (DC)	Optimum Input Voltage (Vmp)	Max. Power	Max. Flow	Max. Head	Outlet	Cable	Open circuit voltage (VOC)	Solar panel Power
1	MS-4iSC3.5-50-48-400	48V	60V-90V	400W	3.5m³/h	50m	1.25″	2m	≤110V	≥1.3*PUMP POWER
2	MS-4iSC3.5-86-48-600	48V	60V-90V	600W	3.5m³/h	86m	1.25″	2m	≤110V	≥1.3*PUMP POWER
3	MS-4iSC3.5-86-72-600	72V	90V-120V	600W	3.5m³/h	86m	1.25″	2m	≤170V	≥1.3*PUMP POWER
4	MS-4iSC3.5-105-48-750	48V	60V-90V	750W	3.5m³/h	105m	1.25″	2m	≤110V	≥1.3*PUMP POWER
5	MS-4iSC3.5-105-72-750	72V	90V-120V	750W	3.5m³/h	105m	1.25″	2m	≤170V	≥1.3*PUMP POWER
6	MS-4iSC3.5-140-72-1100	72V	90V-120V	1100W	3.5m³/h	140m	1.25″	2m	≤170V	≥1.3*PUMP POWER
7	MS-4iSC3.5-140-110-1100	110V	110V-150V	1100W	3.5m³/h	140m	1.25″	2m	≤220V	≥1.3*PUMP POWER
8	MS-4iSC4.8-203-110-1500	110V	110V-150V	1500W	4.8m³/h	203m	1.25″	2m	≤220V	≥1.3*PUMP POWER
9	MS-4iSC6-45-48-500	48V	60V-90V	500W	6m³/h	45m	1.25″	2m	≤110V	≥1.3*PUMP POWER
10	MS-4iSC6-67-48-750	48V	60V-90V	750W	6m³/h	67m	1.25″	2m	≤110V	≥1.3*PUMP POWER
11	MS-4iSC6-67-72-750	72V	90V-120V	750W	6m³/h	67m	1.25″	2m	≤170V	≥1.3*PUMP POWER
12	MS-4iSC6-101-72-1100	72V	90V-120V	1100W	6m³/h	101m	1.25″	2m	≤170V	≥1.3*PUMP POWER
13	MS-4iSC6-101-110-1100	110V	110V-150V	1100W	6m³/h	101m	1.25″	2m	≤220V	≥1.3*PUMP POWER
14	MS-4iSC6-146-110-1300	110V	110V-150V	1300W	6m³/h	146m	1.25″	2m	≤220V	≥1.3*PUMP POWER
15	MS-4iSC9.5-50-72-750	72V	90V-120V	750W	9.5m³/h	50m	2″	2m	≤170V	≥1.3*PUMP POWER
16	MS-4iSC9.5-50-110-750	110V	110V-150V	750W	9.5m³/h	50m	2″	2m	≤220V	≥1.3*PUMP POWER
17	MS-4iSC9.5-75-110-1100	110V	110V-150V	1100W	9.5m³/h	75m	2″	2m	≤220V	≥1.3*PUMP POWER
18	MS-4iSC9.5-90-110-1500	110V	110V-150V	1500W	9.5m³/h	90m	2″	2m	≤220V	≥1.3*PUMP POWER
19	MS-4iSC15-45-72-750	72V	90V-120V	750W	15m³/h	45m	2″	2m	≤170V	≥1.3*PUMP POWER
20	MS-4iSC15-45-110-750	110V	110V-150V	750W	15m³/h	45m	2″	2m	≤220V	≥1.3*PUMP POWER
21	MS-4iSC15-55-110-1100	110V	110V-150V	1100W	15m³/h	55m	2″	2m	≤220V	≥1.3*PUMP POWER
22	MS-4iSC16-70-110-1500	110V	110V-150V	1500W	16m³/h	70m	2″	2m	≤220V	≥1.3*PUMP POWER
23	MS-4iSC20-48-110-1500	110V	110V-150V	1500W	20m³/h	48m	2″	2m	≤220V	≥1.3*PUMP POWER
24	MS-4iSC25-26-110-1500	110V	110V-150V	1500W	25m³/h	26m	2″	2m	≤220V	≥1.3*PUMP POWER

Performance Data for 4iSC Stainless Steel Impeller Series Pump Much Solar

Model 1: MS-4iSC3.5-50-48-400 (Max Flow: 3.5 m³/h, Max Head: 50m)
Head (m)	1	6	11	16	21	26	31	36	41	50
Flow (m³/h)	3.50	3.15	2.81	2.46	2.11	1.77	1.42	1.07	0.72	0.10

Model 2: MS-4iSC3.5-86-48-600 (Max Flow: 3.5 m³/h, Max Head: 86m)
Head (m)	1	10	19	28	37	46	55	64	73	86
Flow (m³/h)	3.50	3.14	2.78	2.42	2.06	1.70	1.34	0.98	0.62	0.10

Model 3: MS-4iSC3.5-86-72-600 (Max Flow: 3.5 m³/h, Max Head: 86m)
Head (m)	1	10	19	28	37	46	55	64	73	86
Flow (m³/h)	3.50	3.14	2.78	2.42	2.06	1.70	1.34	0.98	0.62	0.10

Model 4: MS-4iSC3.5-105-48-750 (Max Flow: 3.5 m³/h, Max Head: 105m)
Head (m)	1	8	15	22	29	36	43	50	57	64	71	78	85	92	105
Flow (m³/h)	3.50	3.27	3.04	2.81	2.58	2.36	2.13	1.90	1.67	1.44	1.21	0.98	0.75	0.53	0.10

Model 5: MS-4iSC3.5-105-72-750 (Max Flow: 3.5 m³/h, Max Head: 105m)
Head (m)	1	8	15	22	29	36	43	50	57	64	71	78	85	92	105
Flow (m³/h)	3.50	3.27	3.04	2.81	2.58	2.36	2.13	1.90	1.67	1.44	1.21	0.98	0.75	0.53	0.10

Model 6: MS-4iSC3.5-140-72-1100 (Max Flow: 3.5 m³/h, Max Head: 140m)
Head (m)	1	11	21	31	41	51	61	71	81	91	101	111	121	131	140
Flow (m³/h)	3.50	3.26	3.01	2.77	2.52	2.28	2.04	1.79	1.55	1.30	1.06	0.81	0.57	0.33	0.10

Model 7: MS-4iSC3.5-140-110-1100 (Max Flow: 3.5 m³/h, Max Head: 140m)
Head (m)	1	11	21	31	41	51	61	71	81	91	101	111	121	131	140
Flow (m³/h)	3.50	3.26	3.01	2.77	2.52	2.28	2.04	1.79	1.55	1.30	1.06	0.81	0.57	0.33	0.10

Model 8: MS-4iSC4.8-203-110-1500 (Max Flow: 4.8 m³/h, Max Head: 203m)
Head (m)	1	15	29	43	57	71	85	99	113	127	141	155	169	183	203
Flow (m³/h)	4.80	4.54	4.27	4.01	3.75	3.49	3.22	2.96	2.70	2.44	2.17	1.91	1.65	1.39	0.10

Model 9: MS-4iSC6-45-48-500 (Max Flow: 6 m³/h, Max Head: 45m)
Head (m)	1	6	11	16	21	26	31	36	41	45
Flow (m³/h)	6.00	5.36	4.72	4.08	3.45	2.81	2.17	1.53	0.89	0.10

Model 10: MS-4iSC6-67-48-750 (Max Flow: 6 m³/h, Max Head: 67m)
Head (m)	1	8	15	22	29	36	43	50	57	67
Flow (m³/h)	6.00	5.39	4.79	4.18	3.57	2.97	2.36	1.75	1.15	0.10

Model 11: MS-4iSC6-67-72-750 (Max Flow: 6 m³/h, Max Head: 67m)
Head (m)	1	8	15	22	29	36	43	50	57	67
Flow (m³/h)	6.00	5.39	4.79	4.18	3.57	2.97	2.36	1.75	1.15	0.10

Model 12: MS-4iSC6-101-72-1100 (Max Flow: 6 m³/h, Max Head: 101m)
Head (m)	1	8	15	22	29	36	43	50	57	64	71	78	85	92	101
Flow (m³/h)	6.00	5.59	5.18	4.77	4.36	3.95	3.54	3.13	2.72	2.31	1.90	1.49	1.08	0.67	0.10

Model 13: MS-4iSC6-101-110-1100 (Max Flow: 6 m³/h, Max Head: 101m)
Head (m)	1	8	15	22	29	36	43	50	57	64	71	78	85	92	101
Flow (m³/h)	6.00	5.59	5.18	4.77	4.36	3.95	3.54	3.13	2.72	2.31	1.90	1.49	1.08	0.67	0.10

Model 14: MS-4iSC6-146-110-1300 (Max Flow: 6 m³/h, Max Head: 146m)
Head (m)	1	11	21	31	41	51	61	71	81	91	101	111	121	131	146
Flow (m³/h)	6.00	5.60	5.19	4.79	4.39	3.99	3.59	3.19	2.79	2.39	1.99	1.59	1.19	0.79	0.10

Model 15: MS-4iSC9.5-50-72-750 (Max Flow: 9.5 m³/h, Max Head: 50m)
Head (m)	1	6	11	16	21	26	31	36	41	50
Flow (m³/h)	9.50	8.54	7.58	6.62	5.66	4.70	3.74	2.78	1.82	0.10

Model 16: MS-4iSC9.5-50-110-750 (Max Flow: 9.5 m³/h, Max Head: 50m)
Head (m)	1	6	11	16	21	26	31	36	41	50
Flow (m³/h)	9.50	8.54	7.58	6.62	5.66	4.70	3.74	2.78	1.82	0.10

Model 17: MS-4iSC9.5-75-110-1100 (Max Flow: 9.5 m³/h, Max Head: 75m)
Head (m)	1	9	17	25	33	41	49	57	65	75
Flow (m³/h)	9.50	8.58	7.66	6.74	5.82	4.90	3.98	3.06	2.14	0.10

Model 18: MS-4iSC9.5-90-110-1500 (Max Flow: 9.5 m³/h, Max Head: 90m)
Head (m)	1	10	19	28	37	46	55	64	73	90
Flow (m³/h)	9.50	8.55	7.61	6.66	5.72	4.77	3.83	2.88	1.94	0.10

Model 19: MS-4iSC15-45-72-750 (Max Flow: 15 m³/h, Max Head: 45m)
Head (m)	1	6	11	16	21	26	31	36	41	45
Flow (m³/h)	15.00	13.42	11.84	10.26	8.68	7.10	5.52	3.94	2.36	0.10

Model 20: MS-4iSC15-45-110-750 (Max Flow: 15 m³/h, Max Head: 45m)
Head (m)	1	6	11	16	21	26	31	36	41	45
Flow (m³/h)	15.00	13.42	11.84	10.26	8.68	7.10	5.52	3.94	2.36	0.10

Model 21: MS-4iSC15-55-110-1100 (Max Flow: 15 m³/h, Max Head: 55m)
Head (m)	1	7	13	19	25	31	37	43	49	55
Flow (m³/h)	15.00	13.58	12.17	10.75	9.33	7.92	6.50	5.08	3.67	0.10

Model 22: MS-4iSC16-70-110-1500 (Max Flow: 16 m³/h, Max Head: 70m)
Head (m)	1	8	15	22	29	36	43	50	57	70
Flow (m³/h)	16.00	14.43	12.86	11.29	9.72	8.15	6.58	5.01	3.44	0.10

Model 23: MS-4iSC20-48-110-1500 (Max Flow: 20 m³/h, Max Head: 48m)
Head (m)	1	6	11	16	21	26	31	36	41	48
Flow (m³/h)	20.00	17.98	15.96	13.94	11.92	9.90	7.88	5.86	3.84	0.10

Model 24: MS-4iSC25-26-110-1500 (Max Flow: 25 m³/h, Max Head: 26m)
Head (m)	1	4	7	10	13	16	19	22	25	26
Flow (m³/h)	25.00	22.40	19.80	17.20	14.60	12.00	9.40	6.80	4.20	0.10

Much Solar 4 inch — 4iSC Stainless Steel Impeller SOLAR PUMP HYDRAULIC PERFORMANCE CURVES

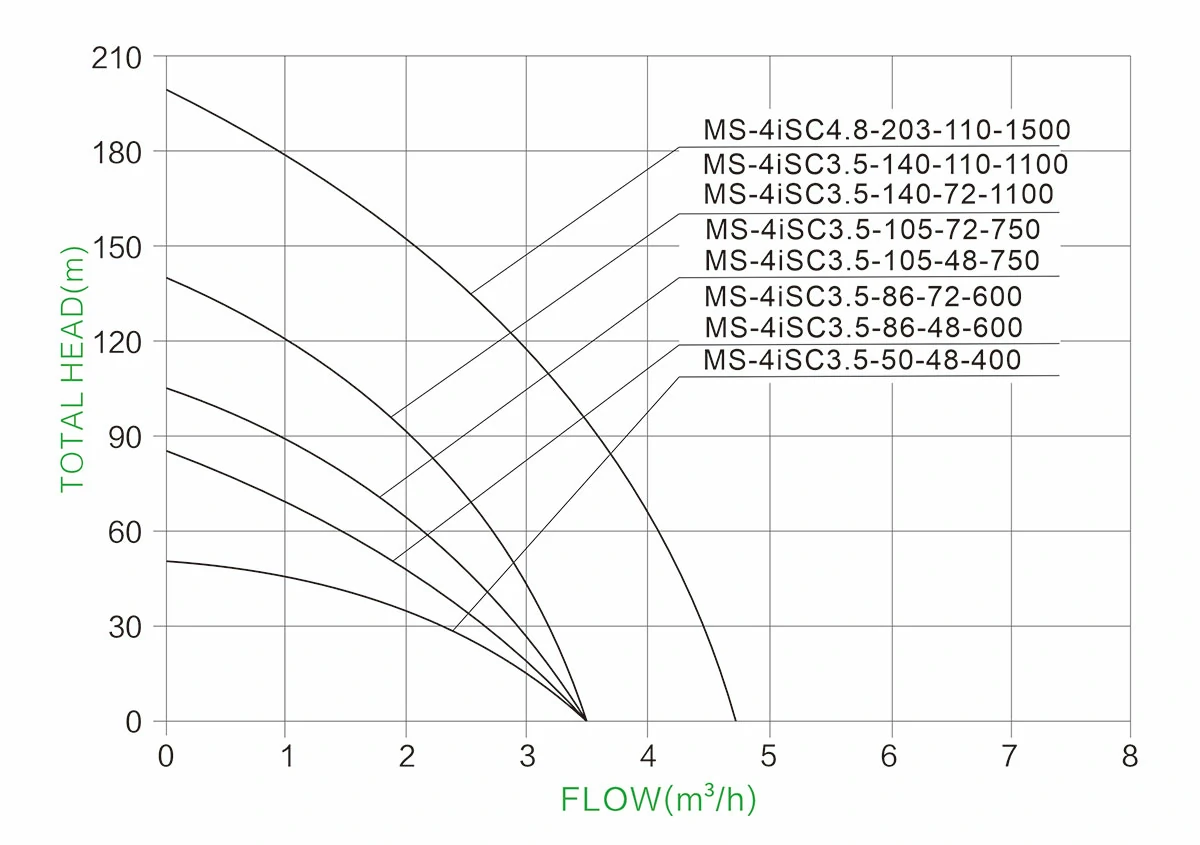

1743420245 Much Solar 4 inch 4iSC Stainless Steel Impeller SOLAR PUMP HYDRAULIC PERFORMANCE CURVES (1)

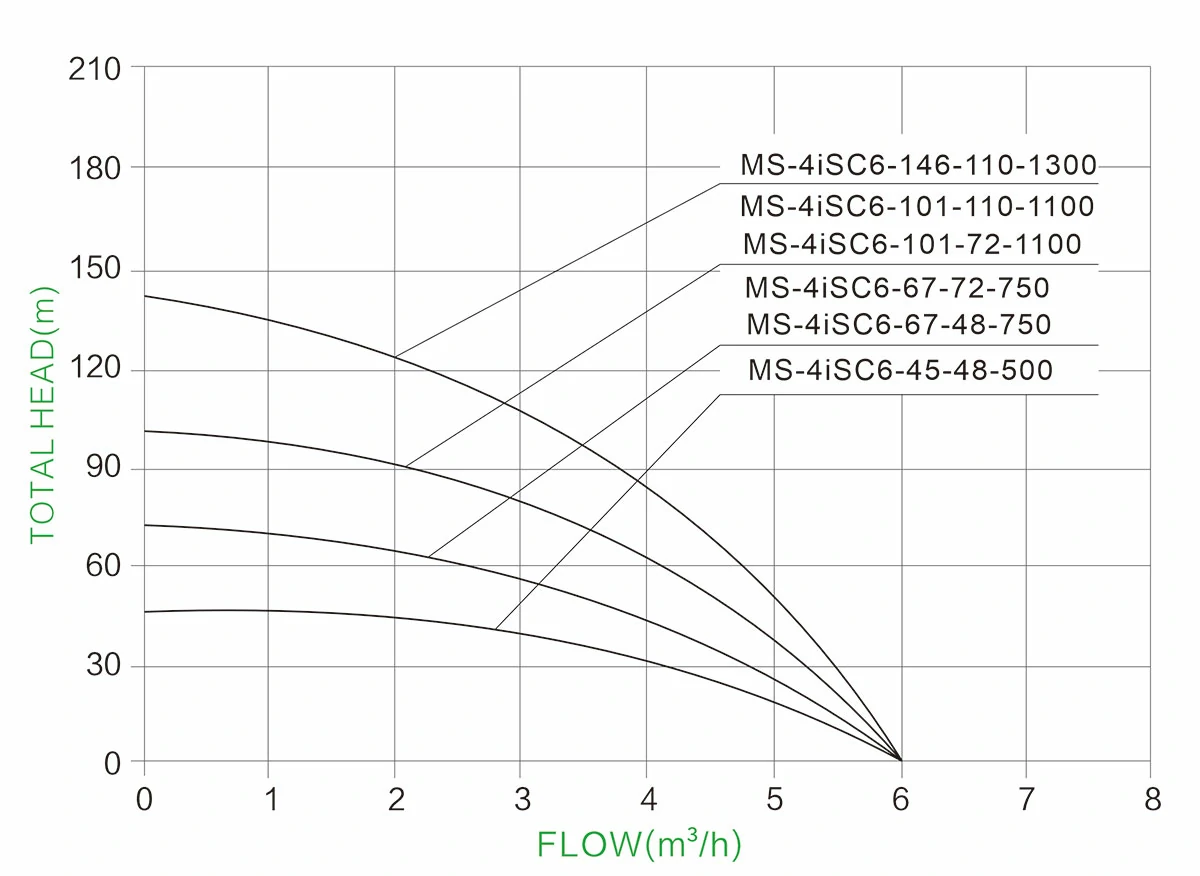

1743420247 Much Solar 4 inch 4iSC Stainless Steel Impeller SOLAR PUMP HYDRAULIC PERFORMANCE CURVES (2)

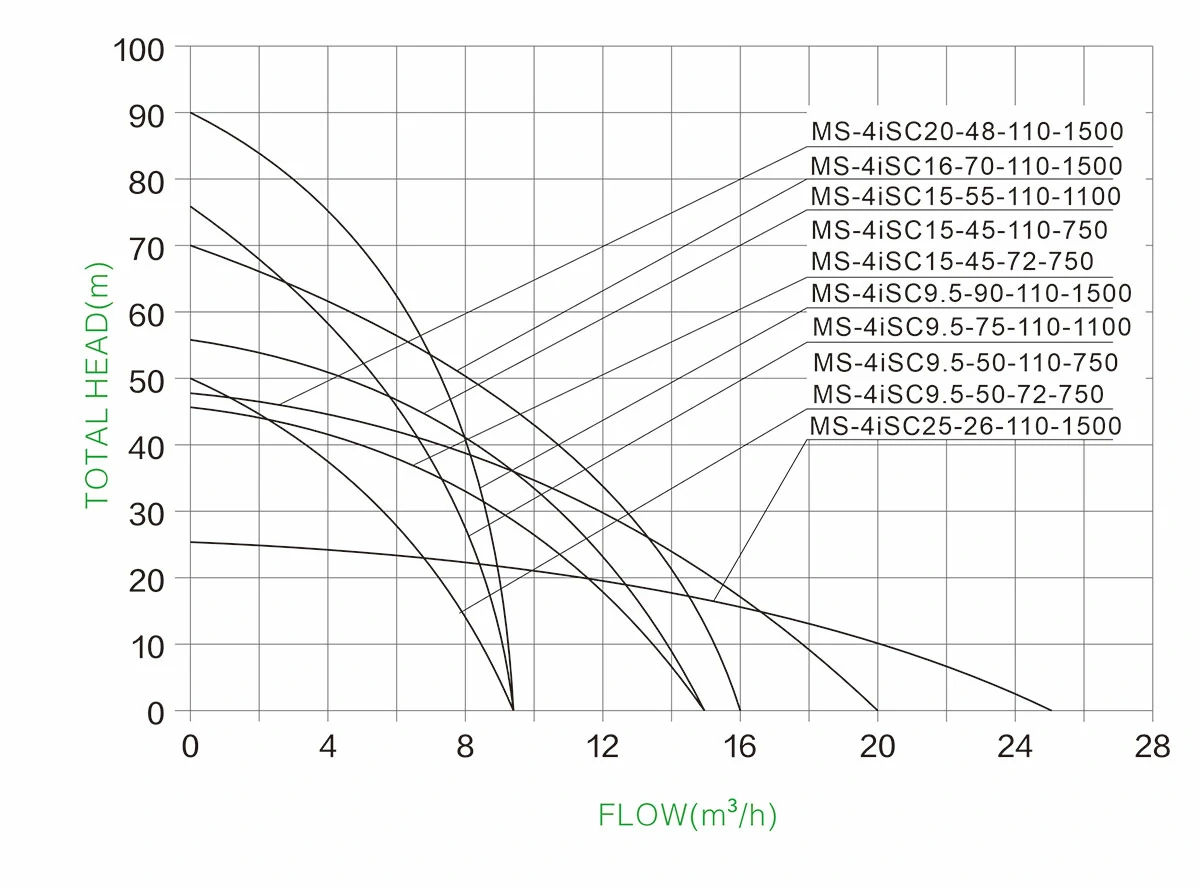

1743420248 Much Solar 4 inch 4iSC Stainless Steel Impeller SOLAR PUMP HYDRAULIC PERFORMANCE CURVES (3)

4iLR Plastic Impeller

Much Solar 4″ — 4iLR Plastic Impeller Solar Water Pump

#	Model	Pump Voltage (DC)	Optimum Input Voltage (Vmp)	Power	Max. Flow	Max. Head	Outlet	Cable	Solar Panel Open Circuit Voltage (VOC)	Solar Panel Power
1	MS-4iLR5-85-110-750	110V	110V-150V	750W	5m³/h	85m	1.25″	2m	<220V	≥1.3*PUMP POWER
2	MS-4iLR6-65-72-550	72V	90V-120V	550W	6m³/h	65m	1.25″	2m	<170V	≥1.3*PUMP POWER
3	MS-4iLR7.5-65-72-750	72V	90V-120V	750W	7.5m³/h	65m	2″	2m	<170V	≥1.3*PUMP POWER
4	MS-4iLR7.5-65-110-750	110V	110V-150V	750W	7.5m³/h	65m	2″	2m	<220V	≥1.3*PUMP POWER
5	MS-4iLR7.5-100-72-1100	72V	90V-120V	1100W	7.5m³/h	100m	2″	2m	<170V	≥1.3*PUMP POWER
6	MS-4iLR7.5-100-110-1100	110V	110V-150V	1100W	7.5m³/h	100m	2″	2m	<220V	≥1.3*PUMP POWER
7	MS-4iLR7.5-110-110-1500	110V	110V-150V	1500W	7.5m³/h	110m	2″	2m	<220V	≥1.3*PUMP POWER
8	MS-4iLR12-50-72-750	72V	90V-120V	750W	12m³/h	50m	2″	2m	<170V	≥1.3*PUMP POWER
9	MS-4iLR12-50-110-750	110V	110V-150V	750W	12m³/h	50m	2″	2m	<220V	≥1.3*PUMP POWER
10	MS-4iLR12-75-72-1100	72V	90V-120V	1100W	12m³/h	75m	2″	2m	<170V	≥1.3*PUMP POWER
11	MS-4iLR12-75-110-1100	110V	110V-150V	1100W	12m³/h	75m	2″	2m	<220V	≥1.3*PUMP POWER
12	MS-4iLR12-100-110-1500	110V	110V-150V	1500W	12m³/h	100m	2″	2m	<220V	≥1.3*PUMP POWER
13	MS-4iLR15-45-72-750	72V	90V-120V	750W	15m³/h	45m	2″	2m	<170V	≥1.3*PUMP POWER
14	MS-4iLR15-45-110-750	110V	110V-150V	750W	15m³/h	45m	2″	2m	<220V	≥1.3*PUMP POWER
15	MS-4iLR15-60-72-1100	72V	90V-120V	1100W	15m³/h	60m	2″	2m	<170V	≥1.3*PUMP POWER
16	MS-4iLR15-60-110-1100	110V	110V-150V	1100W	15m³/h	60m	2″	2m	<220V	≥1.3*PUMP POWER
17	MS-4iLR16-70-110-1500	110V	110V-150V	1500W	16m³/h	70m	2″	2m	<220V	≥1.3*PUMP POWER
18	MS-4iLR20-45-110-1500	110V	110V-150V	1500W	20m³/h	45m	2″	2m	<220V	≥1.3*PUMP POWER

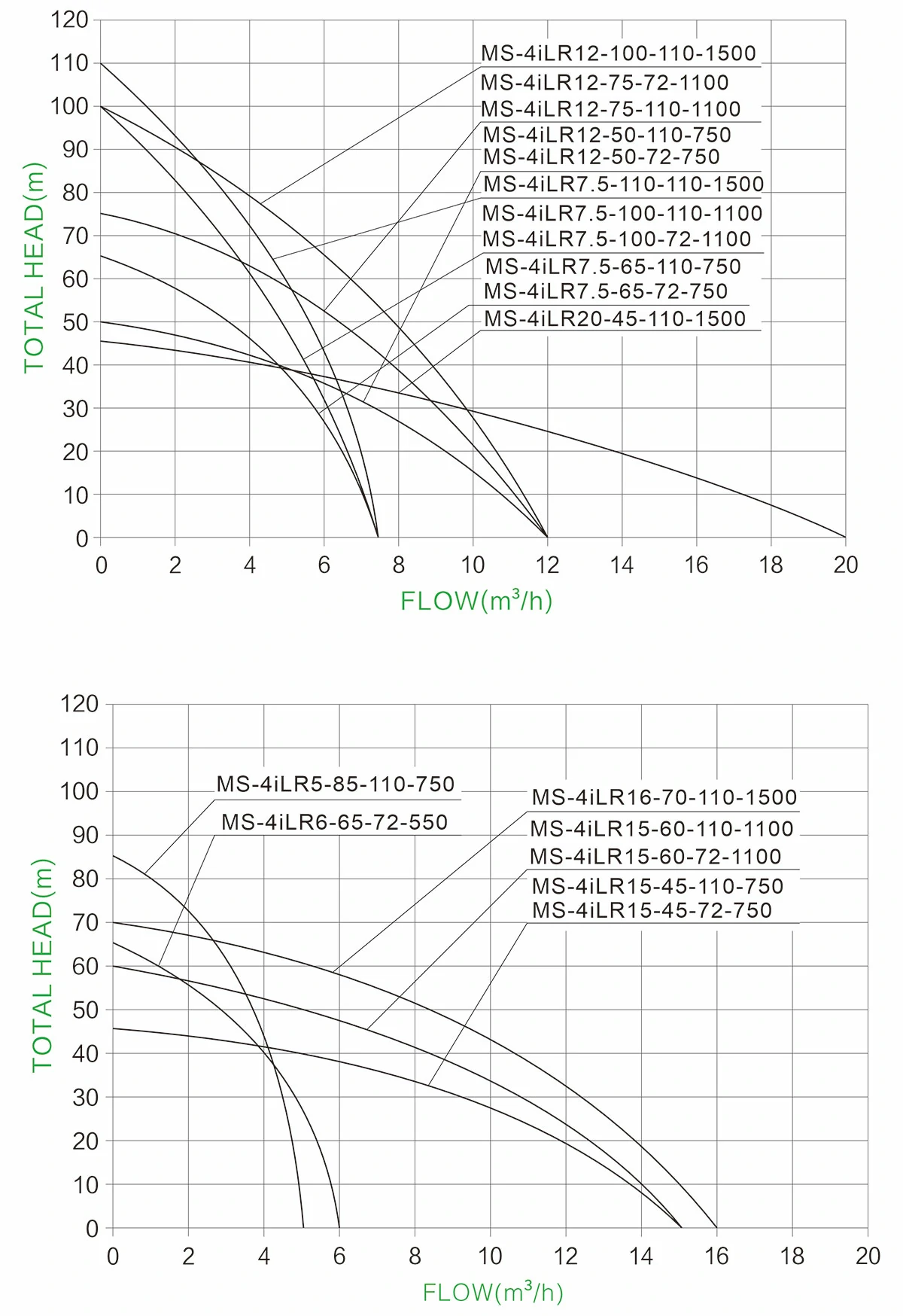

Performance Data for MS-4iLR Plastic Impeller Series Pump Much Solar

Model 1: MS-4iLR5-85-110-750 (Max Flow: 5 m³/h, Max Head: 85m)
Head (m)	1	10	19	28	37	46	55	64	73	85
Flow (m³/h)	5.00	4.45	3.90	3.35	2.80	2.25	1.70	1.15	0.60	0.10

Model 2: MS-4iLR6-65-72-550 (Max Flow: 6 m³/h, Max Head: 65m)
Head (m)	1	8	15	22	29	36	43	50	57	65
Flow (m³/h)	6.00	5.37	4.74	4.11	3.48	2.85	2.22	1.59	0.96	0.10

Model 3: MS-4iLR7.5-65-72-750 (Max Flow: 7.5 m³/h, Max Head: 65m)
Head (m)	1	8	15	22	29	36	43	50	57	65
Flow (m³/h)	7.50	6.70	5.90	5.10	4.30	3.50	2.70	1.90	1.10	0.10

Model 4: MS-4iLR7.5-65-110-750 (Max Flow: 7.5 m³/h, Max Head: 65m)
Head (m)	1	8	15	22	29	36	43	50	57	65
Flow (m³/h)	7.50	6.70	5.90	5.10	4.30	3.50	2.70	1.90	1.10	0.10

Model 5: MS-4iLR7.5-100-72-1100 (Max Flow: 7.5 m³/h, Max Head: 100m)
Head (m)	1	8	15	22	29	36	43	50	57	64	71	78	85	92	100
Flow (m³/h)	7.50	6.90	6.30	5.70	5.10	4.50	3.90	3.30	2.70	2.10	1.50	0.90	0.60	0.30	0.10

Model 6: MS-4iLR7.5-100-110-1100 (Max Flow: 7.5 m³/h, Max Head: 100m)
Head (m)	1	8	15	22	29	36	43	50	57	64	71	78	85	92	100
Flow (m³/h)	7.50	6.90	6.30	5.70	5.10	4.50	3.90	3.30	2.70	2.10	1.50	0.90	0.60	0.30	0.10

Model 7: MS-4iLR7.5-110-110-1500 (Max Flow: 7.5 m³/h, Max Head: 110m)
Head (m)	1	9	17	25	33	41	49	57	65	73	81	89	97	105	110
Flow (m³/h)	7.50	6.90	6.30	5.70	5.10	4.50	3.90	3.30	2.70	2.10	1.50	0.90	0.60	0.30	0.10

Model 8: MS-4iLR12-50-72-750 (Max Flow: 12 m³/h, Max Head: 50m)
Head (m)	1	6	11	16	21	26	31	36	41	50
Flow (m³/h)	12.00	10.74	9.48	8.22	6.96	5.70	4.44	3.18	1.92	0.10

Model 9: MS-4iLR12-50-110-750 (Max Flow: 12 m³/h, Max Head: 50m)
Head (m)	1	6	11	16	21	26	31	36	41	50
Flow (m³/h)	12.00	10.74	9.48	8.22	6.96	5.70	4.44	3.18	1.92	0.10

Model 10: MS-4iLR12-75-72-1100 (Max Flow: 12 m³/h, Max Head: 75m)
Head (m)	1	9	17	25	33	41	49	57	65	75
Flow (m³/h)	12.00	10.66	9.32	7.98	6.64	5.30	3.96	2.62	1.28	0.10

Model 11: MS-4iLR12-75-110-1100 (Max Flow: 12 m³/h, Max Head: 75m)
Head (m)	1	9	17	25	33	41	49	57	65	75
Flow (m³/h)	12.00	10.66	9.32	7.98	6.64	5.30	3.96	2.62	1.28	0.10

Model 12: MS-4iLR12-100-110-1500 (Max Flow: 12 m³/h, Max Head: 100m)
Head (m)	1	8	15	22	29	36	43	50	57	64	71	78	85	92	100
Flow (m³/h)	12.00	11.10	10.20	9.30	8.40	7.50	6.60	5.70	4.80	3.90	3.00	2.10	1.20	0.60	0.10

Model 13: MS-4iLR15-45-72-750 (Max Flow: 15 m³/h, Max Head: 45m)
Head (m)	1	6	11	16</td movq	21	26	31	36	41	45
Flow (m³/h)	15.00	13.38	11.76	10.14	8.52	6.90	5.28	3.66	2.04	0.10

Model 14: MS-4iLR15-45-110-750 (Max Flow: 15 m³/h, Max Head: 45m)
Head (m)	1	6	11	16	21	26	31	36	41	45
Flow (m³/h)	15.00	13.38	11.76	10.14	8.52	6.90	5.28	3.66	2.04	0.10

Model 15: MS-4iLR15-60-72-1100 (Max Flow: 15 m³/h, Max Head: 60m)
Head (m)	1	7	13	19	25	31	37	43	49	60
Flow (m³/h)	15.00	13.42	11.84	10.26	8.68	7.10	5.52	3.94	2.36	0.10

Model 16: MS-4iLR15-60-110-1100 (Max Flow: 15 m³/h, Max Head: 60m)
Head (m)	1	7	13	19	25	31	37	43	49	60
Flow (m³/h)	15.00	13.42	11.84	10.26	8.68	7.10	5.52	3.94	2.36	0.10

Model 17: MS-4iLR16-70-110-1500 (Max Flow: 16 m³/h, Max Head: 70m)
Head (m)	1	8	15	22	29	36	43	50	57	70
Flow (m³/h)	16.00	14.26	12.52	10.78	9.04	7.30	5.56	3.82	2.08	0.10

Model 18: MS-4iLR20-45-110-1500 (Max Flow: 20 m³/h, Max Head: 45m)
Head (m)	1	6	11	16	21	26	31	36	41	45
Flow (m³/h)	20.00	17.84	15.68	13.52	11.36	9.20	7.04	4.88	2.72	0.10

Much Solar 4 inch — 4iLR Plastic Impeller SOLAR PUMP HYDRAULIC PERFORMANCE CURVES

1743243232 Much Solar 4iLR Plastic Impeller SOLAR PUMP HYDRAULIC PERFORMANCE CURVES

4iPC Plastic Impeller

Much Solar 4″ — 4iPC Plastic Impeller Solar Water Pump

#	Model	Pump Voltage (DC)	Optimum Input Voltage (Vmp)	Max. Power	Max. Flow	Max. Head	Outlets	Cable	Solar Panel Open Circuit Voltage (VOC)	Power
1	MS-4iPC4.5-40-48-500	48V	60V-90V	500W	4.5m³/h	40m	1.25″	2m	<110V	≥1.3*Pump Power
2	MS-4iPC4.5-55-48-600	48V	60V-90V	600W	4.5m³/h	55m	1.25″	2m	<110V	≥1.3*Pump Power
3	MS-4iPC4.5-55-72-600	72V	90V-120V	600W	4.5m³/h	55m	1.25″	2m	<170V	≥1.3*Pump Power
4	MS-4iPC4.5-80-48-750	48V	60V-90V	750W	4.5m³/h	80m	1.25″	2m	<110V	≥1.3*Pump Power
5	MS-4iPC4.5-80-72-750	72V	90V-120V	750W	4.5m³/h	80m	1.25″	2m	<170V	≥1.3*Pump Power
6	MS-4iPC5-105-72-1100	72V	90V-120V	1100W	5m³/h	105m	1.25″	2m	<170V	≥1.3*Pump Power
7	MS-4iPC5-105-110-1100	110V	110V-150V	1100W	5m³/h	105m	1.25″	2m	<220V	≥1.3*Pump Power
8	MS-4iPC6-42-48-600	48V	60V-90V	600W	6m³/h	42m	1.25″	2m	<110V	≥1.3*Pump Power
9	MS-4iPC6-42-72-600	72V	90V-120V	600W	6m³/h	42m	1.25″	2m	<170V	≥1.3*Pump Power
10	MS-4iPC6-56-48-750	48V	60V-90V	750W	6m³/h	56m	1.25″	2m	<110V	≥1.3*Pump Power
11	MS-4iPC6-56-72-750	72V	90V-120V	750W	6m³/h	56m	1.25″	2m	<170V	≥1.3*Pump Power
12	MS-4iPC6.5-86-72-1100	72V	90V-120V	1100W	6.5m³/h	86m	1.25″	2m	<170V	≥1.3*Pump Power
13	MS-4iPC6.5-86-110-1100	110V	110V-150V	1100W	6.5m³/h	86m	1.25″	2m	<220V	≥1.3*Pump Power
14	MS-4iPC6.5-112-110-1300	110V	110V-150V	1300W	6.5m³/h	112m	1.25″	2m	<220V	≥1.3*Pump Power
15	MS-4iPC6.5-135-110-1500	110V	110V-150V	1500W	6.5m³/h	135m	1.25″	2m	<220V	≥1.3*Pump Power
16	MS-4iPC9-45-72-750	72V	90V-120V	750W	9m³/h	45m	2″	2m	<170V	≥1.3*Pump Power
17	MS-4iPC9-45-110-750	110V	110V-150V	750W	9m³/h	45m	2″	2m	<220V	≥1.3*Pump Power
18	MS-4iPC9-58-110-1100	110V	110V-150V	1100W	9m³/h	58m	2″	2m	<220V	≥1.3*Pump Power
19	MS-4iPC9-71-110-1300	110V	110V-150V	1300W	9m³/h	71m	2″	2m	<220V	≥1.3*Pump Power
20	MS-4iPC9-85-110-1500	110V	110V-150V	1500W	9m³/h	85m	2″	2m	<220V	≥1.3*Pump Power
21	MS-4iPC13-36-72-750	72V	90V-120V	750W	13m³/h	36m	2″	2m	<170V	≥1.3*Pump Power
22	MS-4iPC13-36-110-750	110V	110V-150V	750W	13m³/h	36m	2″	2m	<220V	≥1.3*Pump Power
23	MS-4iPC13-49-110-1100	110V	110V-150V	1100W	13m³/h	49m	2″	2m	<220V	≥1.3*Pump Power
24	MS-4iPC13-54-110-1300	110V	110V-150V	1300W	13m³/h	54m	2″	2m	<220V	≥1.3*Pump Power
25	MS-4iPC13-60-110-1500	110V	110V-150V	1500W	13m³/h	60m	2″	2m	<220V	≥1.3*Pump Power
26	MS-4iPC17-48-110-1500	110V	110V-150V	1500W	17m³/h	48m	2″	2m	<220V	≥1.3*Pump Power

Performance Data for MS-4iPC Plastic Impeller Series Pump Much Solar

Model 1: MS-4iPC4.5-40-48-500 (Max Flow: 4.5 m³/h, Max Head: 40m)
Head (m)	1	5	9	13	17	21	25	29	33	40
Flow (m³/h)	4.50	4.14	3.78	3.42	3.06	2.70	2.34	1.98	1.62	0.10

Model 2: MS-4iPC4.5-55-48-600 (Max Flow: 4.5 m³/h, Max Head: 55m)
Head (m)	1	7	13	19	25	31	37	43	49	55
Flow (m³/h)	4.50	4.10	3.70	3.30	2.90	2.50	2.10	1.70	1.30	0.10

Model 3: MS-4iPC4.5-55-72-600 (Max Flow: 4.5 m³/h, Max Head: 55m)
Head (m)	1	7	13	19	25	31	37	43	49	55
Flow (m³/h)	4.50	4.10	3.70	3.30	2.90	2.50	2.10	1.70	1.30	0.10

Model 4: MS-4iPC4.5-80-48-750 (Max Flow: 4.5 m³/h, Max Head: 80m)
Head (m)	1	10	19	28	37	46	55	64	73	80
Flow (m³/h)	4.50	4.06	3.62	3.18	2.74	2.30	1.86	1.42	0.98	0.10

Model 5: MS-4iPC4.5-80-72-750 (Max Flow: 4.5 m³/h, Max Head: 80m)
Head (m)	1	10	19	28	37	46	55	64	73	80
Flow (m³/h)	4.50	4.06	3.62	3.18	2.74	2.30	1.86	1.42	0.98	0.10

Model 6: MS-4iPC5-105-72-1100 (Max Flow: 5 m³/h, Max Head: 105m)
Head (m)	1	8	15	23	30	38	45	53	60	68	75	83	90	98	105
Flow (m³/h)	5.00	4.66	4.32	3.98	3.64	3.30	2.96	2.62	2.28	1.94	1.60	1.26	0.92	0.58	0.10

Model 7: MS-4iPC5-105-110-1100 (Max Flow: 5 m³/h, Max Head: 105m)
Head (m)	1	8	15	23	30	38	45	53	60	68	75	83	90	98	105
Flow (m³/h)	5.00	4.66	4.32	3.98	3.64	3.30	2.96	2.62	2.28	1.94	1.60	1.26	0.92	0.58	0.10

Model 8: MS-4iPC6-42-48-600 (Max Flow: 6 m³/h, Max Head: 42m)
Head (m)	1	6	10	15	19	24	28	33	37	42
Flow (m³/h)	6.00	5.54	5.08	4.62	4.16	3.70	3.24	2.78	2.32	0.10

Model 9: MS-4iPC6-42-72-600 (Max Flow: 6 m³/h, Max Head: 42m)
Head (m)	1	6	10	15	19	24	28	33	37	42
Flow (m³/h)	6.00	5.54	5.08	4.62	4.16	3.70	3.24	2.78	2.32	0.10

Model 10: MS-4iPC6-56-48-750 (Max Flow: 6 m³/h, Max Head: 56m)
Head (m)	1	7	13	19	25	31	37	43	49	56
Flow (m³/h)	6.00	5.57	5.14	4.71	4.28	3.85	3.42	2.99	2.56	0.10

Model 11: MS-4iPC6-56-72-750 (Max Flow: 6 m³/h, Max Head: 56m)
Head (m)	1	7	13	19	25	31	37	43	49	56
Flow (m³/h)	6.00	5.57	5.14	4.71	4.28	3.85	3.42	2.99	2.56	0.10

Model 12: MS-4iPC6.5-86-72-1100 (Max Flow: 6.5 m³/h, Max Head: 86m)
Head (m)	1	10	19	28	37	46	55	64	73	86
Flow (m³/h)	6.50	5.94	5.38	4.82	4.26	3.70	3.14	2.58	2.02	0.10

Model 13: MS-4iPC6.5-86-110-1100 (Max Flow: 6.5 m³/h, Max Head: 86m)
Head (m)	1	10	19	28	37	46	55	64	73	86
Flow (m³/h)	6.50	5.94	5.38	4.82	4.26	3.70	3.14	2.58	2.02	0.10

Model 14: MS-4iPC6.5-112-110-1300 (Max Flow: 6.5 m³/h, Max Head: 112m)
Head (m)	1	9	17	25	33	41	49	57	65	73	81	89	97	105	112
Flow (m³/h)	6.50	6.08	5.66	5.24	4.82	4.40	3.98	3.56	3.14	2.72	2.30	1.88	1.46	1.04	0.10

Model 15: MS-4iPC6.5-135-110-1500 (Max Flow: 6.5 m³/h, Max Head: 135m)
Head (m)	1	11	20	30	39	49	58	68	77	87	96	106	115	125	135
Flow (m³/h)	6.50	6.04	5.58	5.12	4.66	4.20	3.74	3.28	2.82	2.36	1.90	1.44	0.98	0.52	0.10

Model 16: MS-4iPC9-45-72-750 (Max Flow: 9 m³/h, Max Head: 45m)
Head (m)	1	6	11	16	21	26	31	36	41	45
Flow (m³/h)	9.00	8.40	7.80	7.20	6.60	6.00	5.40	4.80	4.20	0.10

Model 17: MS-4iPC9-45-110-750 (Max Flow: 9 m³/h, Max Head: 45m)
Head (m)	1	6	11	16	21	26	31	36	41	45
Flow (m³/h)	9.00	8.40	7.80	7.20	6.60	6.00	5.40	4.80	4.20	0.10

Model 18: MS-4iPC9-58-110-1100 (Max Flow: 9 m³/h, Max Head: 58m)
Head (m)	1	7	13	19	25	31	37	43	49	58
Flow (m³/h)	9.00	8.42	7.84	7.26	6.68	6.10	5.52	4.94	4.36	0.10

Model 19: MS-4iPC9-71-110-1300 (Max Flow: 9 m³/h, Max Head: 71m)
Head (m)	1	9	17	25	33	41	49	57	65	71
Flow (m³/h)	9.00	8.36	7.72	7.08	6.44	5.80	5.16	4.52	3.88	0.10

Model 20: MS-4iPC9-85-110-1500 (Max Flow: 9 m³/h, Max Head: 85m)
Head (m)	1	10	19	28	37	46	55	64	73	85
Flow (m³/h)	9.00	8.30	7.60	6.90	6.20	5.50	4.80	4.10	3.40	0.10

Model 21: MS-4iPC13-36-72-750 (Max Flow: 13 m³/h, Max Head: 36m)
Head (m)	1	5	9	13	17	21	25	29	33	36
Flow (m³/h)	13.00	12.24	11.48	10.72	9.96	9.20	8.44	7.68	6.92	0.10

Model 22: MS-4iPC13-36-110-750 (Max Flow: 13 m³/h, Max Head: 36m)
Head (m)	1	5	9	13	17	21	25	29	33	36
Flow (m³/h)	13.00	12.24	11.48	10.72	9.96	9.20	8.44	7.68	6.92	0.10

Model 23: MS-4iPC13-49-110-1100 (Max Flow: 13 m³/h, Max Head: 49m)
Head (m)	1	6	11	16	21	26	31	36	41	49
Flow (m³/h)	13.00	12.28	11.56	10.84	10.12	9.40	8.68	7.96	7.24	0.10

Model 24: MS-4iPC13-54-110-1300 (Max Flow: 13 m³/h, Max Head: 54m)
Head (m)	1	7	13	19	25	31	37	43	49	54
Flow (m³/h)	13.00	12.22	11.44	10.66	9.88	9.10	8.32	7.54	6.76	0.10

Model 25: MS-4iPC13-60-110-1500 (Max Flow: 13 m³/h, Max Head: 60m)
Head (m)	1	7	13	19	25	31	37	43	49	60
Flow (m³/h)	13.00	12.18	11.36	10.54	9.72	8.90	8.08	7.26	6.44	0.10

Model 26: MS-4iPC17-48-110-1500 (Max Flow: 17 m³/h, Max Head: 48m)
Head (m)	1	6	11	16	21	26	31	36	41	48
Flow (m³/h)	17.00	16.06	15.12	14.18	13.24	12.30	11.36	10.42	9.48	0.10

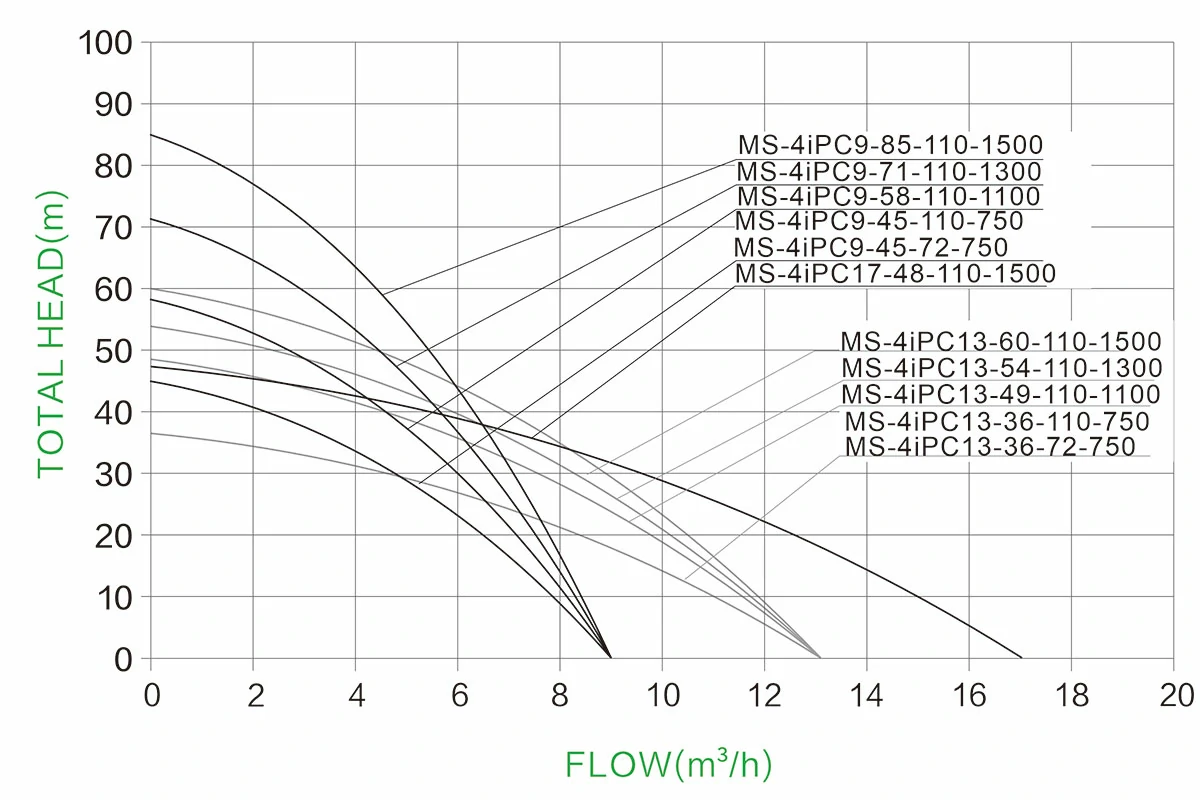

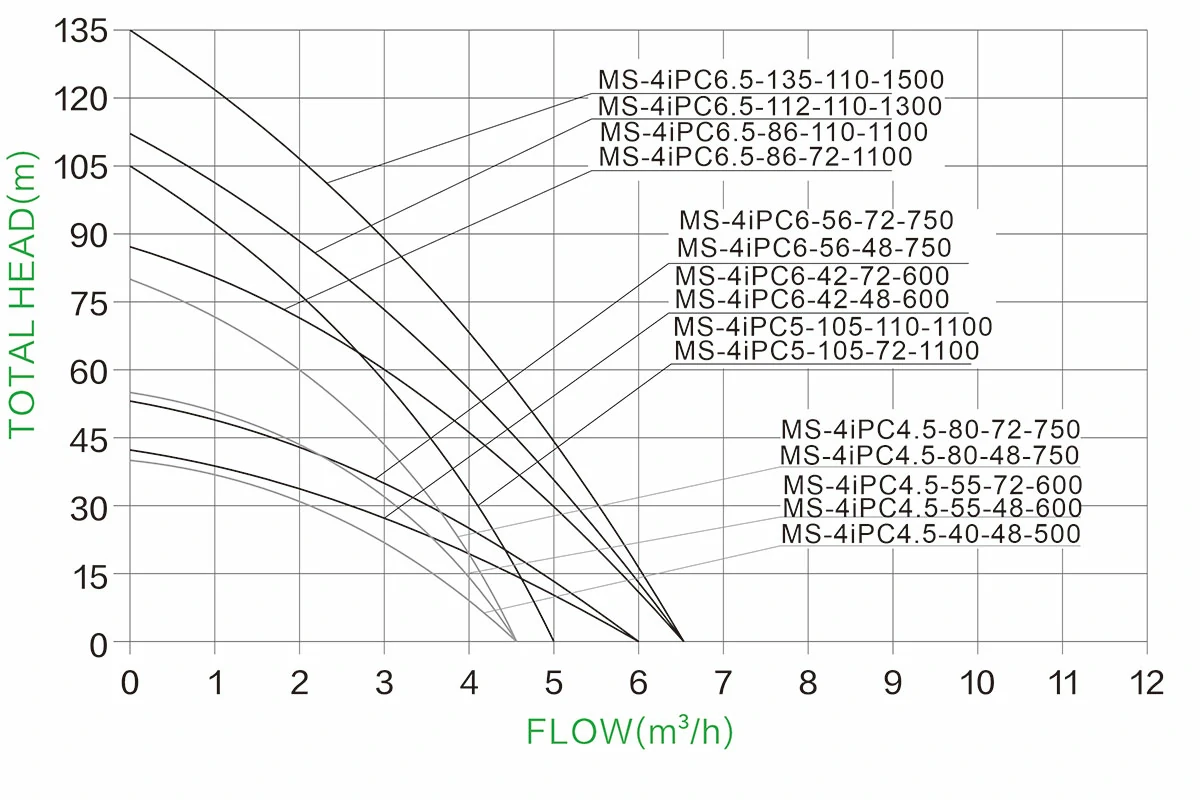

Much Solar 4 inch -- 4iPC Plastic Impeller SOLAR PUMP HYDRAULIC PERFORMANCE CURVES

1743174481 Much Solar 4iPC Plastic Impeller Solar Water Pump (2)

1743174482 Much Solar 4iPC Plastic Impeller Solar Water Pump (1)

3iSC Stainless Steel Impeller

Much Solar 3″ — 3iSC Stainless Steel Impeller Solar Water Pump

#	Model	Pump Voltage (DC)	Optimum Input Voltage (Vmp)	Power	Max. Flow	Max. Head	Outlet	Open Circuit Voltage (VOC)	Solar Panel Power
1	MS-3iSC4.5-35-24-300	24V	30V-48V	300W	4.5m³/h	35m	1.25″	<60V	≥1.3*Pump Power
2	MS-3iSC4.5-50-48-400	48V	60V-90V	400W	4.5m³/h	50m	1.25″	<110V	≥1.3*Pump Power
3	MS-3iSC4.5-80-48-600	48V	60V-90V	600W	4.5m³/h	80m	1.25″	<110V	≥1.3*Pump Power
4	MS-3iSC4.8-95-48-750	48V	60V-90V	750W	4.8m³/h	95m	1.25″	<110V	≥1.3*Pump Power
5	MS-3iSC4.8-95-72-750	72V	90V-120V	750W	4.8m³/h	95m	1.25″	<170V	≥1.3*Pump Power
6	MS-3iSC5-112-72-1100	72V	90V-120V	1100W	5m³/h	112m	1.25″	<170V	≥1.3*Pump Power
7	MS-3iSC5-112-110-1100	110V	110V-150V	1100W	5m³/h	112m	1.25″	<220V	≥1.3*Pump Power
8	MS-3iSC5-135-110-1500	110V	110V-150V	1500W	5m³/h	135m	1.25″	<220V	≥1.3*Pump Power

Performance Data for MS-3iSC Series Pump Much Solar

Model 1	MS-3iSC4.5-35-24-300 (Max Flow: 4.5 m³/h, Max Head: 35m)
Head (m)	1	5	9	13	17	21	25	29	33	35
Flow (m³/h)	4.5	4.4	4.2	3.9	3.5	2.9	2.2	1.4	0.5	0.1

Model 2	MS-3iSC4.5-50-48-400 (Max Flow: 4.5 m³/h, Max Head: 50m)
Head (m)	1	6	11	17	22	28	33	39	44	50
Flow (m³/h)	4.5	4.4	4.2	3.9	3.5	3.0	2.4	1.7	0.9	0.1

Model 3	MS-3iSC4.5-80-48-600 (Max Flow: 4.5 m³/h, Max Head: 80m)
Head (m)	1	10	19	28	37	46	55	64	73	80
Flow (m³/h)	4.5	4.4	4.2	3.9	3.5	2.9	2.2	1.4	0.6	0.1

Model 4	MS-3iSC4.8-95-48-750 (Max Flow: 4.8 m³/h, Max Head: 95m)
Head (m)	1	11	22	32	43	53	64	74	85	95
Flow (m³/h)	4.8	4.7	4.5	4.2	3.8	3.3	2.7	1.9	1.0	0.1

Model 5	MS-3iSC4.8-95-72-750 (Max Flow: 4.8 m³/h, Max Head: 95m)
Head (m)	1	11	22	32	43	53	64	74	85	95
Flow (m³/h)	4.8	4.7	4.5	4.2	3.8	3.3	2.7	1.9	1.0	0.1

Model 6	MS-3iSC5-112-72-1100 (Max Flow: 5 m³/h, Max Head: 112m)
Head (m)	1	13	25	38	50	63	75	88	100	112
Flow (m³/h)	5.0	4.9	4.7	4.4	4.0	3.5	2.8	2.0	1.1	0.1

Model 7	MS-3iSC5-112-110-1100 (Max Flow: 5 m³/h, Max Head: 112m)
Head (m)	1	13	25	38	50	63	75	88	100	112
Flow (m³/h)	5.0	4.9	4.7	4.4	4.0	3.5	2.8	2.0	1.1	0.1

Model 8	MS-3iSC5-135-110-1500 (Max Flow: 5 m³/h, Max Head: 135m)
Head (m)	1	16	31	46	61	76	91	106	121	135
Flow (m³/h)	5.0	4.9	4.7	4.4	4.0	3.4	2.7	1.9	0.9	0.1

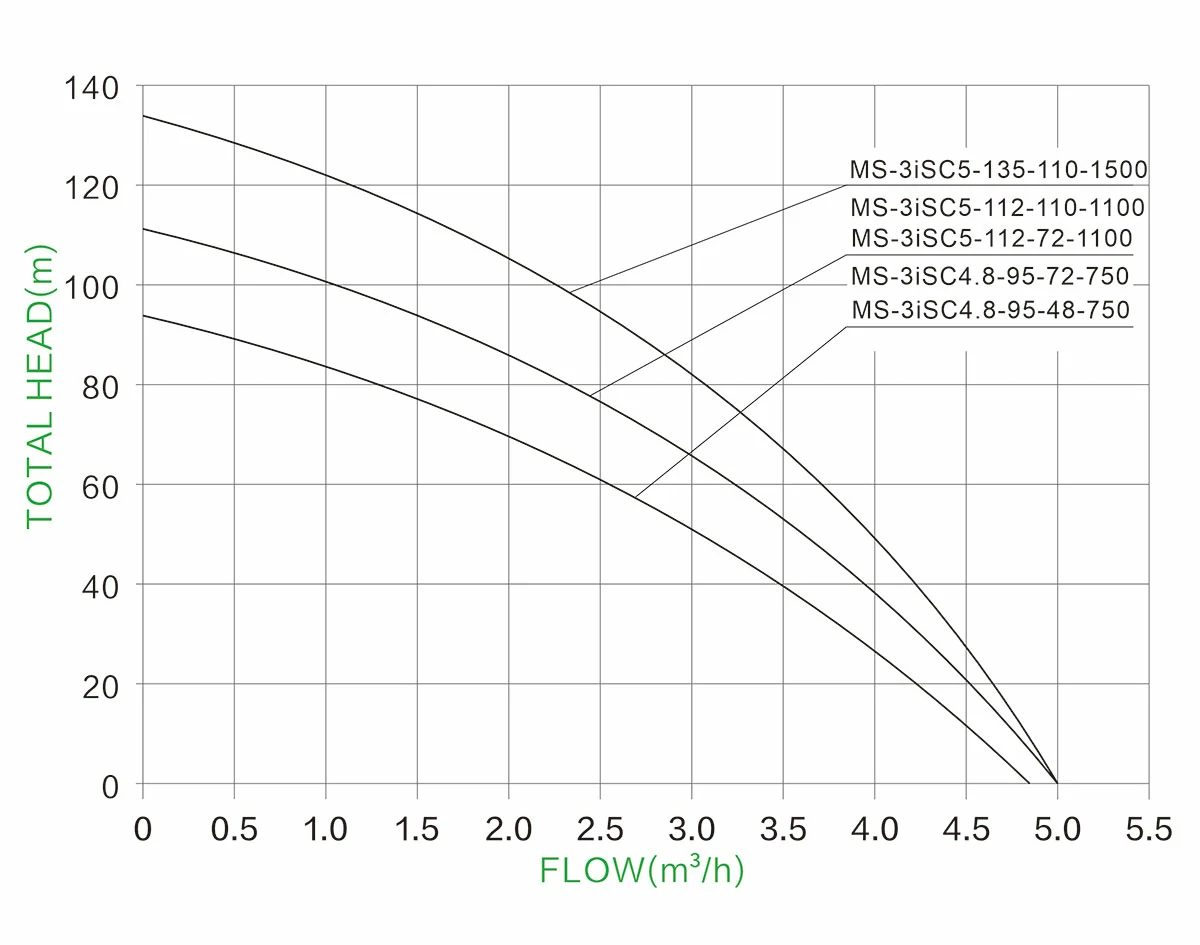

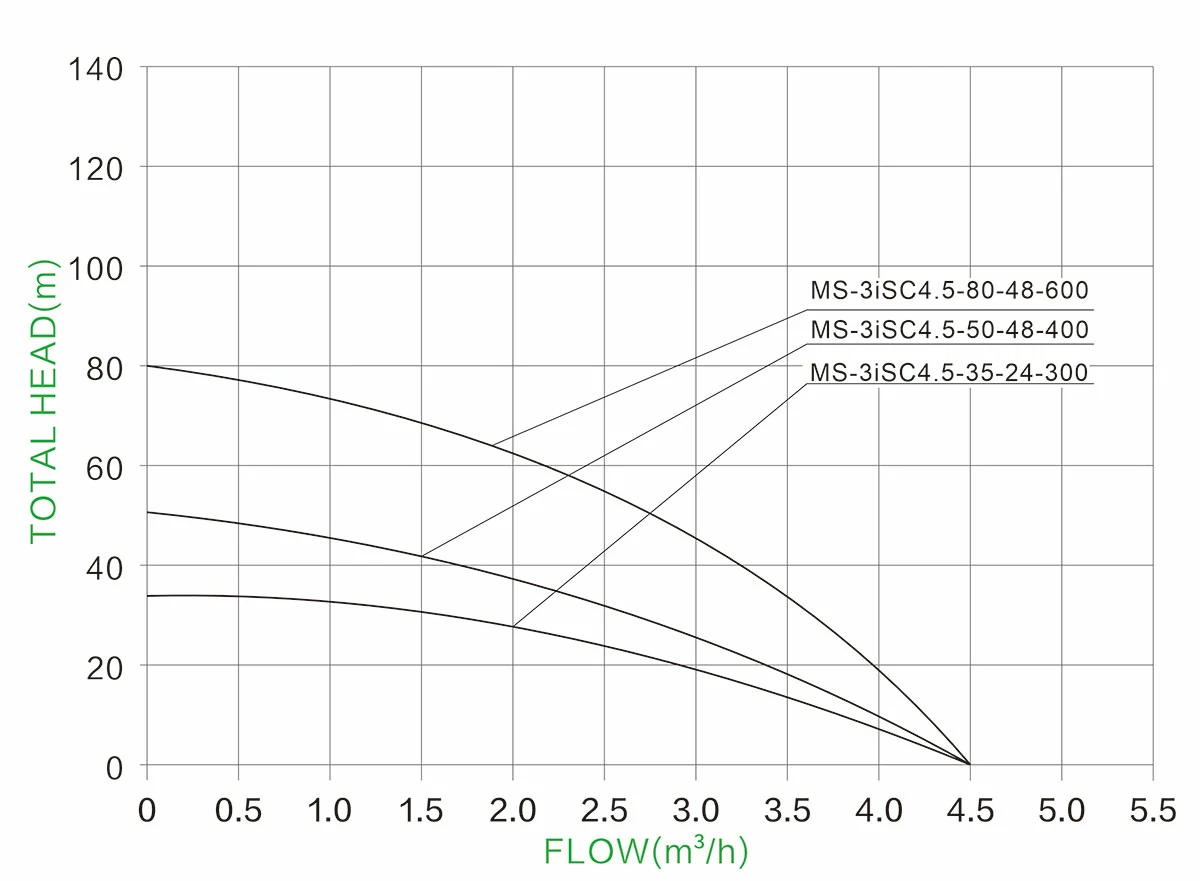

Much Solar 3 inch -- 3iSC Stainless Steel Impeller SOLAR PUMP HYDRAULIC PERFORMANCE CURVES 1742984298 Much Solar 3 inch 3iSC Stainless Steel Impeller SOLAR PUMP HYDRAULIC PERFORMANCE CURVES (1)

1742984300 Much Solar 3 inch 3iSC Stainless Steel Impeller SOLAR PUMP HYDRAULIC PERFORMANCE CURVES (2)

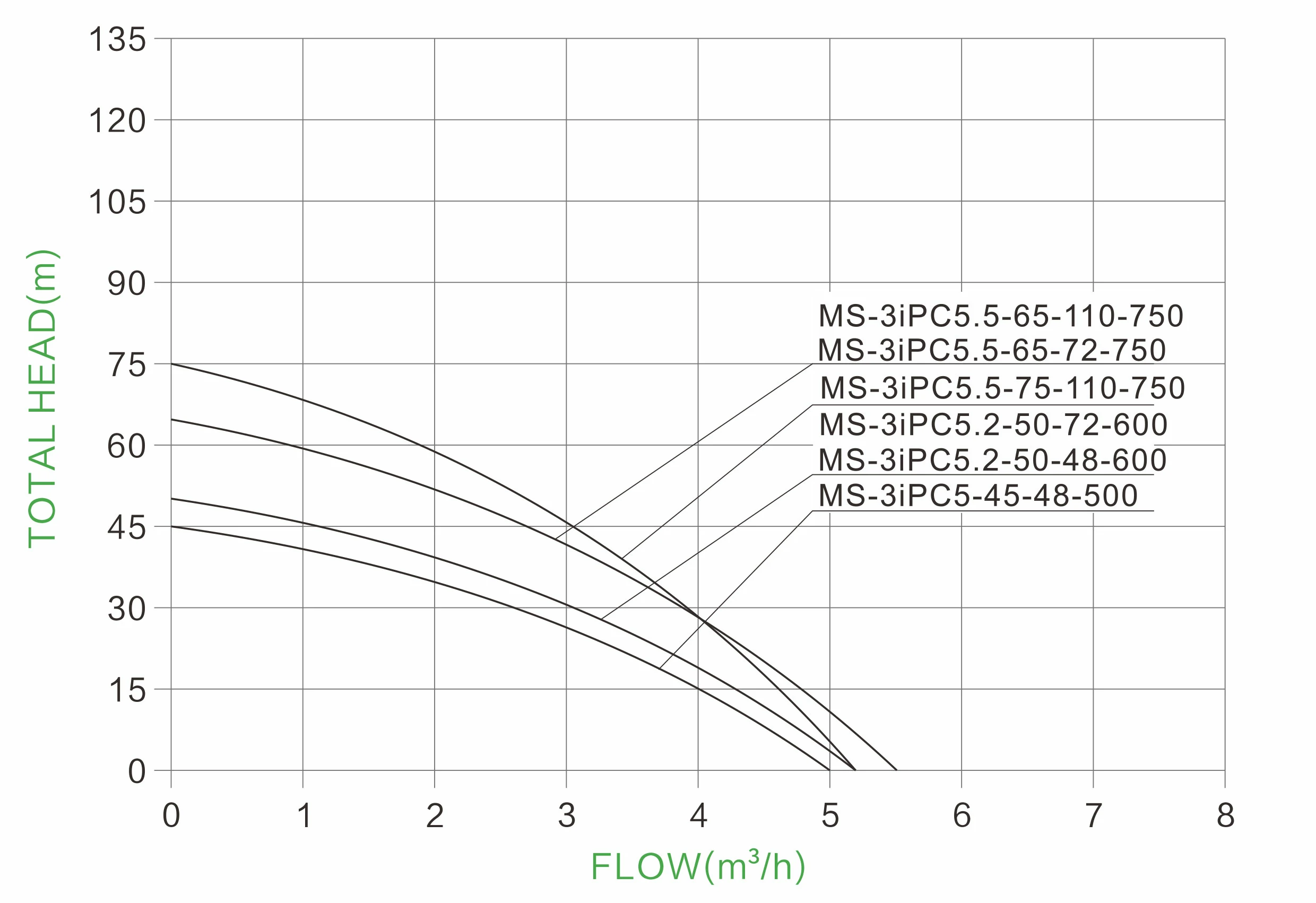

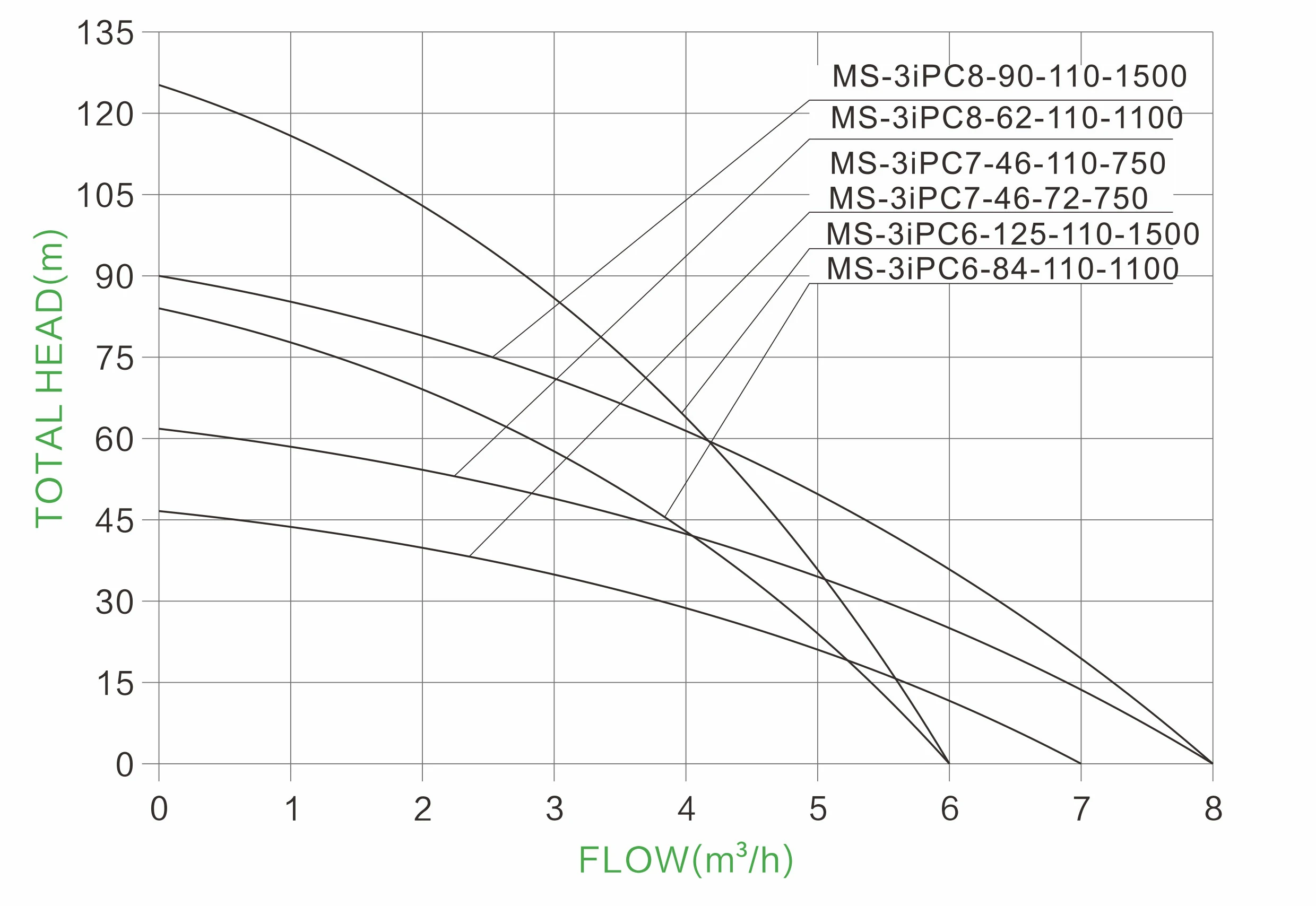

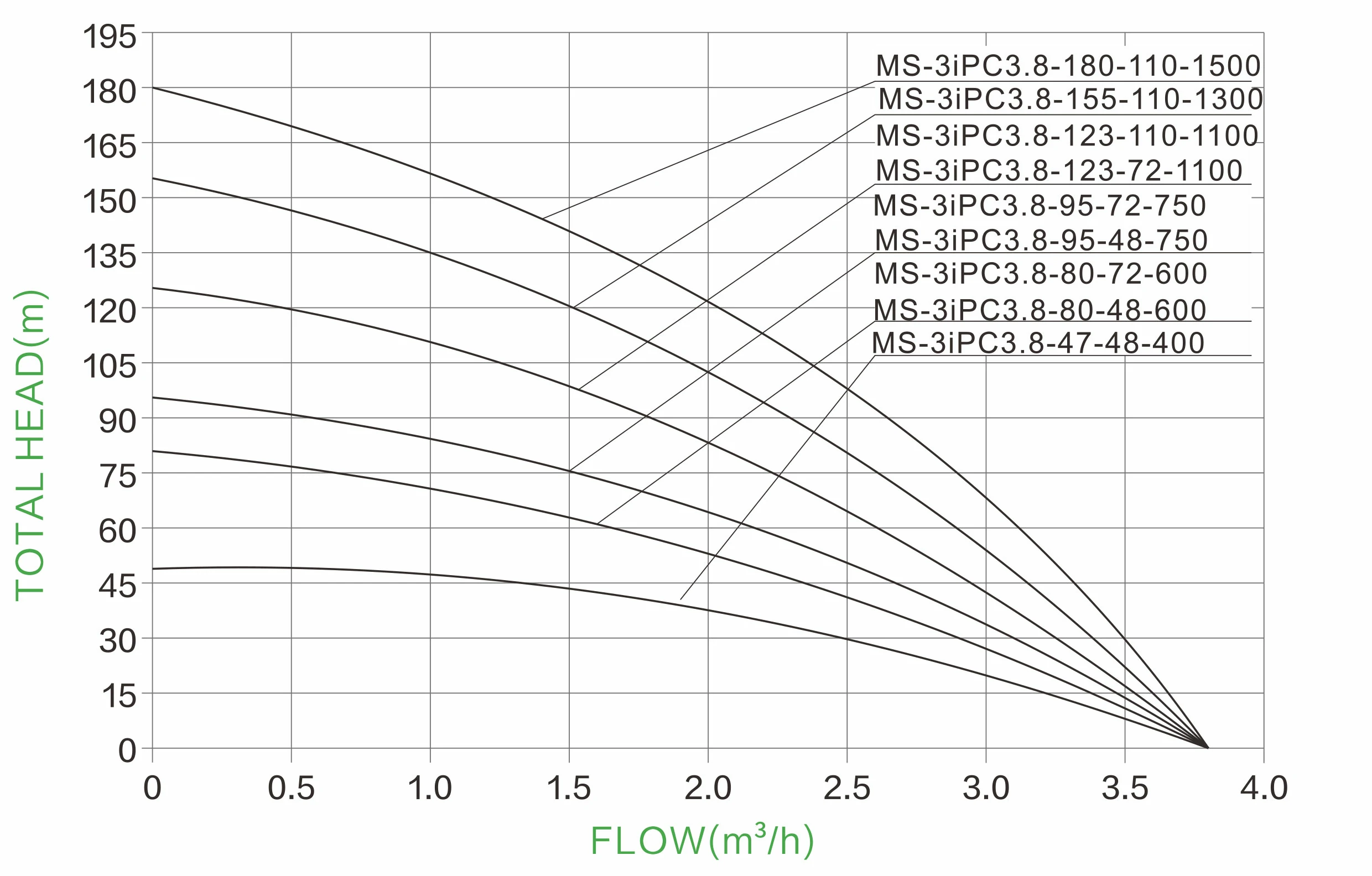

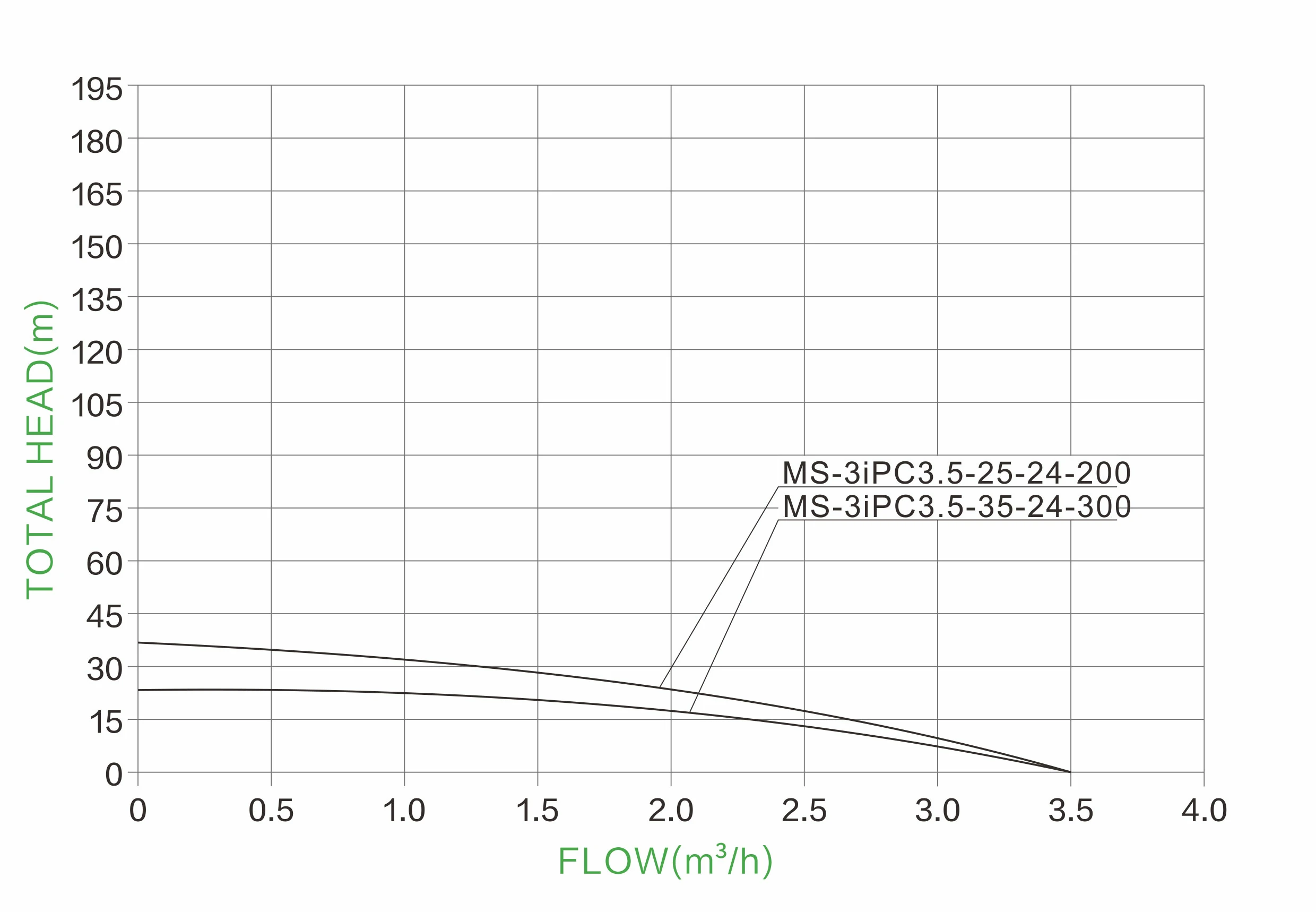

3iPC Plastic Impeller

Much Solar 3″ — 3iPC Plastic Impeller Solar Water Pump

#	Model	Pump Voltage (DC)	Optimum Input Voltage (Vmp)	Max. Power	Max. Flow	Max. Head	Outlet	Cable	Open Circuit Voltage (VOC)	Solar Panel Power
1	MS-3iPC3.5-25-24-200	24V	30V-48V	200W	3.5m³/h	25m	1.25″	2m	<60V	≥1.3×PUMP POWER
2	MS-3iPC3.5-35-24-300	24V	30V-48V	300W	3.5m³/h	35m	1.25″	2m	<60V	≥1.3×PUMP POWER
3	MS-3iPC3.8-47-48-400	48V	60V-90V	400W	3.8m³/h	47m	1.25″	2m	<110V	≥1.3×PUMP POWER
4	MS-3iPC3.8-80-48-600	48V	60V-90V	600W	3.8m³/h	80m	1.48″	2m	<110V	≥1.3×PUMP POWER
5	MS-3iPC3.8-80-72-600	72V	90V-120V	600W	3.8m³/h	80m	1.25″	2m	<170V	≥1.3×PUMP POWER
6	MS-3iPC3.8-95-48-750	48V	60V-90V	750W	3.8m³/h	95m	1.25″	2m	<110V	≥1.3×PUMP POWER
7	MS-3iPC3.8-95-72-750	72V	90V-120V	750W	3.8m³/h	95m	1.25″	2m	<170V	≥1.3×PUMP POWER
8	MS-3iPC3.8-123-72-1100	72V	90V-120V	1100W	3.8m³/h	123m	1.25″	2m	<170V	≥1.3×PUMP POWER
9	MS-3iPC3.8-123-110-1100	110V	110V-150V	1100W	3.8m³/h	123m	1.25″	2m	<220V	≥1.3×PUMP POWER
10	MS-3iPC3.8-155-110-1300	110V	110V-150V	1300W	3.8m³/h	155m	1.25″	2m	<220V	≥1.3×PUMP POWER
11	MS-3iPC3.8-180-110-1500	110V	110V-150V	1500W	3.8m³/h	180m	1.25″	2m	<220V	≥1.3×PUMP POWER
12	MS-3iPC5-45-48-500	48V	60V-90V	500W	5m³/h	45m	1.5″	2m	<110V	≥1.3×PUMP POWER
13	MS-3iPC5.2-50-48-600	48V	60V-90V	600W	5.2m³/h	50m	1.5″	2m	<110V	≥1.3×PUMP POWER
14	MS-3iPC5.2-50-72-600	72V	90V-120V	600W	5.2m³/h	50m	1.5″	2m	<170V	≥1.3×PUMP POWER
15	MS-3iPC5.5-75-110-750	110V	110V-150V	750W	5.5m³/h	75m	1.5″	2m	<220V	≥1.3×PUMP POWER
16	MS-3iPC5.5-65-72-750	72V	90V-120V	750W	5.5m³/h	65m	1.5″	2m	<170V	≥1.3×PUMP POWER
17	MS-3iPC5.5-65-110-750	110V	110V-150V	750W	5.5m³/h	65m	1.5″	2m	<220V	≥1.3×PUMP POWER
18	MS-3iPC6-84-110-1100	110V	110V-150V	1100W	6m³/h	84m	1.5″	2m	<220V	≥1.3×PUMP POWER
19	MS-3iPC6-125-110-1500	110V	110V-150V	1500W	6m³/h	125m	1.5″	2m	<220V	≥1.3×PUMP POWER
20	MS-3iPC7-46-72-750	72V	90V-120V	750W	7m³/h	46m	1.5″	2m	<170V	≥1.3×PUMP POWER
21	MS-3iPC7-46-110-750	110V	110V-150V	750W	7m³/h	46m	1.5″	2m	<220V	≥1.3×PUMP POWER
22	MS-3iPC8-62-110-1100	110V	110V-150V	1100W	8m³/h	62m	1.5″	2m	<220V	≥1.3×PUMP POWER
23	MS-3iPC8-90-110-1500	110V	110V-150V	1500W	8m³/h	90m	1.5″	2m	<220V	≥1.3×PUMP POWER

Performance Data for MS-3iPC Series Pump

Model 1: MS-3iPC3.5-25-24-200 (Max Flow: 3.5 m³/h, Max Head: 25m)
Head (m)	1	4	7	10	13	16	19	22	24	25
Flow (m³/h)	3.50	3.15	2.80	2.45	2.10	1.75	1.40	1.05	0.70	0.10

Model 2: MS-3iPC3.5-35-24-300 (Max Flow: 3.5 m³/h, Max Head: 35m)
Head (m)	1	5	9	13	17	21	25	29	33	35
Flow (m³/h)	3.50	3.16	2.82	2.48	2.14	1.80	1.46	1.12	0.78	0.10

Model 3: MS-3iPC3.8-47-48-400 (Max Flow: 3.8 m³/h, Max Head: 47m)
Head (m)	1	6	11	16	21	26	31	36	41	47
Flow (m³/h)	3.80	3.43	3.06	2.69	2.32	1.95	1.58	1.21	0.84	0.10

Model 4: MS-3iPC3.8-80-48-600 (Max Flow: 3.8 m³/h, Max Head: 80m)
Head (m)	1	10	19	28	37	46	55	64	73	80
Flow (m³/h)	3.80	3.42	3.04	2.66	2.28	1.90	1.52	1.14	0.76	0.10

Model 5: MS-3iPC3.8-80-72-600 (Max Flow: 3.8 m³/h, Max Head: 80m)
Head (m)	1	10	19	28	37	46	55	64	73	80
Flow (m³/h)	3.80	3.42	3.04	2.66	2.28	1.90	1.52	1.14	0.76	0.10

Model 6: MS-3iPC3.8-95-48-750 (Max Flow: 3.8 m³/h, Max Head: 95m)
Head (m)	1	11	21	31	41	51	61	71	81	95
Flow (m³/h)	3.80	3.42	3.04	2.66	2.28	1.90	1.52	1.14	0.76	0.10

Model 7: MS-3iPC3.8-95-72-750 (Max Flow: 3.8 m³/h, Max Head: 95m)
Head (m)	1	11	21	31	41	51	61	71	81	95
Flow (m³/h)	3.80	3.42	3.04	2.66	2.28	1.90	1.52	1.14	0.76	0.10

Model 8: MS-3iPC3.8-123-72-1100 (Max Flow: 3.8 m³/h, Max Head: 123m)
Head (m)	1	10	19	28	37	46	55	64	73	82	91	100	109	118	123
Flow (m³/h)	3.80	3.54	3.28	3.02	2.76	2.50	2.24	1.98	1.72	1.46	1.20	0.94	0.68	0.42	0.10

Model 9: MS-3iPC3.8-123-110-1100 (Max Flow: 3.8 m³/h, Max Head: 123m)
Head (m)	1	10	19	28	37	46	55	64	73	82	91	100	109	118	123
Flow (m³/h)	3.80	3.54	3.28	3.02	2.76	2.50	2.24	1.98	1.72	1.46	1.20	0.94	0.68	0.42	0.10

Model 10: MS-3iPC3.8-155-110-1300 (Max Flow: 3.8 m³/h, Max Head: 155m)
Head (m)	1	12	23	34	45	56	67	78	89	100	111	122	133	144	155
Flow (m³/h)	3.80	3.54	3.28	3.02	2.76	2.50	2.24	1.98	1.72	1.46	1.20	0.94	0.68	0.42	0.10

Model 11: MS-3iPC3.8-180-110-1500 (Max Flow: 3.8 m³/h, Max Head: 180m)
Head (m)	1	14	27	40	53	66	79	92	105	118	131	144	157	170	180
Flow (m³/h)	3.80	3.54	3.28	3.02	2.76	2.50	2.24	1.98	1.72	1.46	1.20	0.94	0.68	0.42	0.10

Model 12: MS-3iPC5-45-48-500 (Max Flow: 5 m³/h, Max Head: 45m)
Head (m)	1	6	11	16	21	26	31	36	41	45
Flow (m³/h)	5.00	4.52	4.04	3.56	3.08	2.60	2.12	1.64	1.16	0.10

Model 13: MS-3iPC5.2-50-48-600 (Max Flow: 5.2 m³/h, Max Head: 50m)
Head (m)	1	6	11	16	21	26	31	36	41	50
Flow (m³/h)	5.20	4.71	4.22	3.73	3.24	2.75	2.26	1.77	1.28	0.10

Model 14: MS-3iPC5.2-50-72-600 (Max Flow: 5.2 m³/h, Max Head: 50m)
Head (m)	1	6	11	16	21	26	31	36	41	50
Flow (m³/h)	5.20	4.71	4.22	3.73	3.24	2.75	2.26	1.77	1.28	0.10

Model 15: MS-3iPC5.5-75-110-750 (Max Flow: 5.5 m³/h, Max Head: 75m)
Head (m)	1	9	17	25	33	41	49	57	65	75
Flow (m³/h)	5.50	4.97	4.44	3.91	3.38	2.85	2.32	1.79	1.26	0.10

Model 16: MS-3iPC5.5-65-72-750 (Max Flow: 5.5 m³/h, Max Head: 65m)
Head (m)	1	8	15	22	29	36	43	50	57	65
Flow (m³/h)	5.50	4.97	4.44	3.91	3.38	2.85	2.32	1.79	1.26	0.10

Model 17: MS-3iPC5.5-65-110-750 (Max Flow: 5.5 m³/h, Max Head: 65m)
Head (m)	1	8	15	22	29	36	43	50	57	65
Flow (m³/h)	5.50	4.97	4.44	3.91	3.38	2.85	2.32	1.79	1.26	0.10

Model 18: MS-3iPC6-84-110-1100 (Max Flow: 6 m³/h, Max Head: 84m)
Head (m)	1	10	19	28	37	46	55	64	73	84
Flow (m³/h)	6.00	5.42	4.84	4.26	3.68	3.10	2.52	1.94	1.36	0.10

Model 19: MS-3iPC6-125-110-1500 (Max Flow: 6 m³/h, Max Head: 125m)
Head (m)	1	10	19	28	37	46	55	64	73	82	91	100	109	118	125
Flow (m³/h)	6.00	5.62	5.24	4.86	4.48	4.10	3.72	3.34	2.96	2.58	2.20	1.82	1.44	1.06	0.10

Model 20: MS-3iPC7-46-72-750 (Max Flow: 7 m³/h, Max Head: 46m)
Head (m)	1	6	11	16	21	26	31	36	41	46
Flow (m³/h)	7.00	6.34	5.68	5.02	4.36	3.70	3.04	2.38	1.72	0.10

Model 21: MS-3iPC7-46-110-750 (Max Flow: 7 m³/h, Max Head: 46m)
Head (m)	1	6	11	16	21	26	31	36	41	46
Flow (m³/h)	7.00	6.34	5.68	5.02	4.36	3.70	3.04	2.38	1.72	0.10

Model 22: MS-3iPC8-62-110-1100 (Max Flow: 8 m³/h, Max Head: 62m)
Head (m)	1	8	15	22	29	36	43	50	57	62
Flow (m³/h)	8.00	7.24	6.48	5.72	4.96	4.20	3.44	2.68	1.92	0.10

Model 23: MS-3iPC8-90-110-1500 (Max Flow: 8 m³/h, Max Head: 90m)
Head (m)	1	11	21	31	41	51	61	71	81	90
Flow (m³/h)	8.00	7.22	6.44	5.66	4.88	4.10	3.32	2.54	1.76	0.10

Much Solar 3 inch -- MS-3iPC Series Plastic Impeller SOLAR PUMP HYDRAULIC PERFORMANCE CURVES 1741176262 Much Solar 3 inch MS 3iPC Series INCH SCREW SOLAR PUMP HYDRAULIC PERFORMANCE CURVES (1)

1741176264 Much Solar 3 inch MS 3iPC Series INCH SCREW SOLAR PUMP HYDRAULIC PERFORMANCE CURVES (2)

1741176267 Much Solar 3 inch MS 3iPC Series INCH SCREW SOLAR PUMP HYDRAULIC PERFORMANCE CURVES (3)

1741176269 Much Solar 3 inch MS 3iPC Series INCH SCREW SOLAR PUMP HYDRAULIC PERFORMANCE CURVES (4)

3iSS SCREW

Much Solar 3″–3iSS SCREW SOLAR PUMP

#	Model	Pump Voltage (DC)	Optimum Input Voltage (Vmp)	Power	Max. Flow	Max. Head	Outlet	Cable	Open Circuit Voltage (VOC)	Solar Panel Power
1	MS-3iSS0.5-28-12-80	12V	30V-48V	80W	0.5m³/h	28m	0.75"	2m	<60V	≥1.3* PUMP POWER
2	MS-3iSS1.2-56-24-120	24V	30V-48V	120W	1.2m³/h	56m	0.75"	2m	<60V	≥1.3* PUMP POWER
3	MS-3iSS1.2-77-36-210	36V	30V-48V	210W	1.2m³/h	77m	0.75"	2m	<60V	≥1.3* PUMP POWER
4	MS-3iSS1.7-109-48-500	48V	60V-90V	500W	1.7m³/h	109m	0.75"	2m	<110V	≥1.3* PUMP POWER
5	MS-3iSS2-150-48-750	48V	60V-90V	750W	2m³/h	150m	0.75"	2m	<110V	≥1.3* PUMP POWER
6	MS-3iSS2-150-72-750	72V	90V-120V	750W	2m³/h	150m	0.75"	2m	<170V	≥1.3* PUMP POWER
7	MS-3iSS2.2-180-72-1100	72V	90V-120V	1100W	2.2m³/h	180m	0.75"	2m	<170V	≥1.3* PUMP POWER

Performance Data for MS-3iSS Series Pump

Model 1: MS-3iSS0.5-28-12-80 (Max Flow: 0.5 m³/h, Max Head: 28m)
Head (m)	1	4	7	10	13	16	19	22	25	28
Flow (m³/h)	0.50	0.46	0.42	0.38	0.34	0.30	0.26	0.22	0.18	0.10

Model 2: MS-3iSS1.2-56-24-120 (Max Flow: 1.2 m³/h, Max Head: 56m)
Head (m)	1	7	13	19	25	31	37	43	49	56
Flow (m³/h)	1.20	1.10	1.00	0.90	0.80	0.70	0.60	0.50	0.30	0.10

Model 3: MS-3iSS1.2-77-36-210 (Max Flow: 1.2 m³/h, Max Head: 77m)
Head (m)	1	10	19	27	36	44	53	61	70	77
Flow (m³/h)	1.20	1.10	1.00	0.90	0.80	0.70	0.60	0.50	0.30	0.10

Model 4: MS-3iSS1.7-109-48-500 (Max Flow: 1.7 m³/h, Max Head: 109m)
Head (m)	1	9	17	25	33	41	49	57	65	73	81	89	97	105	109
Flow (m³/h)	1.70	1.62	1.54	1.46	1.38	1.30	1.22	1.14	1.06	0.98	0.90	0.82	0.74	0.50	0.10

Model 5: MS-3iSS2-150-48-750 (Max Flow: 2 m³/h, Max Head: 150m)
Head (m)	1	12	22	33	43	54	64	75	85	96	106	117	127	138	150
Flow (m³/h)	2.00	1.90	1.80	1.70	1.60	1.50	1.40	1.30	1.20	1.10	1.00	0.90	0.70	0.50	0.10

Model 6: MS-3iSS2-150-72-750 (Max Flow: 2 m³/h, Max Head: 150m)
Head (m)	1	12	22	33	43	54	64	75	85	96	106	117	127	138	150
Flow (m³/h)	2.00	1.90	1.80	1.70	1.60	1.50	1.40	1.30	1.20	1.10	1.00	0.90	0.70	0.50	0.10

Model 7: MS-3iSS2.2-180-72-1100 (Max Flow: 2.2 m³/h, Max Head: 180m)
Head (m)	1	14	27	40	53	66	79	92	105	118	131	144	157	170	180
Flow (m³/h)	2.20	2.10	2.00	1.90	1.80	1.70	1.60	1.50	1.40	1.30	1.20	1.00	0.80	0.50	0.10

Much Solar 3" -- MS-3iSS Series INCH SCREW SOLAR PUMP HYDRAULIC PERFORMANCE CURVES

1740133870 Much Solar 3 inch SCREW SOLAR PUMP

Factory Direct DC Brushless Solar Submersible Water Pump with External Controller – 24V 48V 72V 96V 110V– Much Solar

Product Description

Key Features

PRODUCT

Contact Info

Product Category

Home Solar System

Solar Battery

Solar Lights

Solar Panel

Solar Inverter

Hot Products

400W Solar Panel

5500W Hybrid Inverter

200W Solar Flood Light

12V 200AH Gel Battery

100A MPPT Controller

Get Free Help – Message Us Today
