Features

6iSC And 8iSC A/D 5KW-22KW

4/6iSC A/D 3KW-7.5KW

4iSC A/D 3KW-7.5KW

4iPC A/D 3KW-7.5KW

Features

6iSC And 8iSC A/D 5KW-22KW

Much Solar 6″ and 8″ — Big Power 6iSC and 8iSC 5KW-22KW AC DC Stainless Steel Impeller Series Solar Submersible Water Pumps

#	Model	Voltage	Optimum input voltage(DC)	Power	Max. Flow	Max. Head	Outlet	Cable	Open circuit voltage(VOC)	Solar Panel Power
1	MS-6iSC36-108-380/550-5500-A/D	AC380/DC550V	520V~650V	5500W	36m³/h	108m	3″	2m	< 780V	≥1.3*PUMP POWER
2	MS-6iSC36-145-380/550-7500-A/D	AC380/DC550V	520V~650V	7500W	36m³/h	145m	3″	2m	< 780V	≥1.3*PUMP POWER
3	MS-6iSC36-175-380/550-9200-A/D	AC380/DC550V	520V~650V	9200W	36m³/h	175m	3″	2m	< 780V	≥1.3*PUMP POWER
4	MS-6iSC36-210-380/550-11000-A/D	AC380/DC550V	520V~650V	11000W	36m³/h	210m	3″	2m	< 780V	≥1.3*PUMP POWER
5	MS-6iSC36-270-380/550-15000-A/D	AC380/DC550V	520V~650V	15000W	36m³/h	270m	3″	2m	< 780V	≥1.3*PUMP POWER
6	MS-6iSC36-310-380/550-18500-A/D	AC380/DC550V	520V~650V	18500W	36m³/h	310m	3″	2m	< 780V	≥1.3*PUMP POWER
7	MS-6iSC46-86-380/550-5500-A/D	AC380/DC550V	520V~650V	5500W	46m³/h	86m	3″	2m	< 780V	≥1.3*PUMP POWER
8	MS-6iSC46-112-380/550-7500-A/D	AC380/DC550V	520V~650V	7500W	46m³/h	112m	3″	2m	< 780V	≥1.3*PUMP POWER
9	MS-6iSC46-135-380/550-9200-A/D	AC380/DC550V	520V~650V	9200W	46m³/h	135m	3″	2m	< 780V	≥1.3*PUMP POWER
10	MS-6iSC46-160-380/550-11000-A/D	AC380/DC550V	520V~650V	11000W	46m³/h	160m	3″	2m	< 780V	≥1.3*PUMP POWER
11	MS-6iSC46-204-380/550-15000-A/D	AC380/DC550V	520V~650V	15000W	46m³/h	204m	3″	2m	< 780V	≥1.3*PUMP POWER
12	MS-6iSC46-252-380/550-18500-A/D	AC380/DC550V	520V~650V	18500W	46m³/h	252m	3″	2m	< 780V	≥1.3*PUMP POWER
13	MS-6iSC65-63-380/550-5500-A/D	AC380/DC550V	520V~650V	5500W	65m³/h	63m	4″	2m	< 780V	≥1.3*PUMP POWER
14	MS-6iSC65-85-380/550-7500-A/D	AC380/DC550V	520V~650V	7500W	65m³/h	85m	4″	2m	< 780V	≥1.3*PUMP POWER
15	MS-6iSC65-100-380/550-9200-A/D	AC380/DC550V	520V~650V	9200W	65m³/h	100m	4″	2m	< 780V	≥1.3*PUMP POWER
16	MS-6iSC65-120-380/550-11000-A/D	AC380/DC550V	520V~650V	11000W	65m³/h	120m	4″	2m	< 780V	≥1.3*PUMP POWER
17	MS-6iSC65-160-380/550-15000-A/D	AC380/DC550V	520V~650V	15000W	65m³/h	160m	4″	2m	< 780V	≥1.3*PUMP POWER
18	MS-6iSC65-200-380/550-18500-A/D	AC380/DC550V	520V~650V	18500W	65m³/h	200m	4″	2m	< 780V	≥1.3*PUMP POWER
19	MS-6iSC95-66-380/550-7500-A/D	AC380/DC550V	520V~650V	7500W	95m³/h	66m	4″	2m	< 780V	≥1.3*PUMP POWER
20	MS-6iSC95-88-380/550-11000-A/D	AC380/DC550V	520V~650V	11000W	95m³/h	88m	4″	2m	< 780V	≥1.3*PUMP POWER
21	MS-6iSC95-126-380/550-15000-A/D	AC380/DC550V	520V~650V	15000W	95m³/h	126m	4″	2m	< 780V	≥1.3*PUMP POWER
22	MS-6iSC95-153-380/550-18500-A/D	AC380/DC550V	520V~650V	18500W	95m³/h	153m	4″	2m	< 780V	≥1.3*PUMP POWER
23	MS-6iSC95-180-380/550-22000-A/D	AC380/DC550V	520V~650V	22000W	95m³/h	180m	4″	2m	< 780V	≥1.3*PUMP POWER
24	MS-6iSC130-75-380/550-15000-A/D	AC380/DC550V	520V~650V	15000W	130m³/h	75m	4″	2m	< 780V	≥1.3*PUMP POWER
25	MS-6iSC130-105-380/550-18500-A/D	AC380/DC550V	520V~650V	18500W	130m³/h	105m	4″	2m	< 780V	≥1.3*PUMP POWER
26	MS-6iSC130-130-380/550-22000-A/D	AC380/DC550V	520V~650V	22000W	130m³/h	130m	4″	2m	< 780V	≥1.3*PUMP POWER
27	MS-8iSC150-37-380/550-11000-A/D	AC380/DC550V	520V~650V	11000W	150m³/h	37m	5″	2m	< 780V	≥1.3*PUMP POWER
28	MS-8iSC150-77-380/550-22000-A/D	AC380/DC550V	520V~650V	22000W	150m³/h	77m	5″	2m	< 780V	≥1.3*PUMP POWER

Performance Data For Big Power 6iSC and 8iSC 5KW-22KW AC DC Stainless Steel Impeller Series Pump Much Solar

Model 1: MS-6iSC36-108-380/550-5500-A/D (Max Flow: 36 m³/h, Max Head: 108m)
Head (m)	1	12	23	34	45	56	67	78	89	100	108
Flow (m³/h)	36.00	32.68	29.36	26.04	22.72	19.40	16.08	12.76	9.44	6.12	0.10

Model 2: MS-6iSC36-145-380/550-7500-A/D (Max Flow: 36 m³/h, Max Head: 145m)
Head (m)	1	11	21	31	41	51	61	71	81	91	101	111	121	131	145
Flow (m³/h)	36.00	33.18	30.36	27.54	24.72	21.90	19.08	16.26	13.44	10.62	7.80	6.15	4.50	2.85	0.10

Model 3: MS-6iSC36-175-380/550-9200-A/D (Max Flow: 36 m³/h, Max Head: 175m)
Head (m)	1	13	25	37	49	61	73	85	97	109	121	133	145	157	175
Flow (m³/h)	36.00	32.81	29.62	26.43	23.24	20.05	16.86	13.67	10.48	8.29	6.10	4.91	3.72	2.53	0.10

Model 4: MS-6iSC36-210-380/550-11000-A/D (Max Flow: 36 m³/h, Max Head: 210m)
Head (m)	1	15	29	43	57	71	85	99	113	127	141	155	169	183	210
Flow (m³/h)	36.00	32.57	29.14	25.71	22.28	18.85	15.42	11.99	9.56	7.13	5.70	4.27	2.84	1.41	0.10

Model 5: MS-6iSC36-270-380/550-15000-A/D (Max Flow: 36 m³/h, Max Head: 270m)
Head (m)	1	20	39	58	77	96	115	134	153	172	191	210	229	248	270
Flow (m³/h)	36.00	32.20	28.40	24.60	20.80	17.00	13.20	9.40	6.60	4.80	3.40	2.20	1.40	0.80	0.10

Model 6: MS-6iSC36-310-380/550-18500-A/D (Max Flow: 36 m³/h, Max Head: 310m)
Head (m)	1	23	45	67	89	111	133	155	177	199	221	243	265	287	310
Flow (m³/h)	36.00	32.01	28.02	24.03	20.04	16.05	12.06	9.07	6.08	4.09	2.70	1.71	1.02	0.53	0.10

Model 7: MS-6iSC46-86-380/550-5500-A/D (Max Flow: 46 m³/h, Max Head: 86m)
Head (m)	1	10	19	28	37	46	55	64	73	86
Flow (m³/h)	46.00	42.12	38.24	34.36	30.48	26.60	22.72	18.84	14.96	0.10

Model 8: MS-6iSC46-112-380/550-7500-A/D (Max Flow: 46 m³/h, Max Head: 112m)
Head (m)	1	12	23	34	45	56	67	78	89	100	112
Flow (m³/h)	46.00	41.85	37.70	33.55	29.40	25.25	21.10	16.95	12.80	8.65	0.10

Model 9: MS-6iSC46-135-380/550-9200-A/D (Max Flow: 46 m³/h, Max Head: 135m)
Head (m)	1	10	19	28	37	46	55	64	73	82	91	100	109	118	135
Flow (m³/h)	46.00	42.70	39.40	36.10	32.80	29.50	26.20	22.90	19.60	16.30	13.00	9.70	6.40	3.10	0.10

Model 10: MS-6iSC46-160-380/550-11000-A/D (Max Flow: 46 m³/h, Max Head: 160m)
Head (m)	1	12	23	34	45	56	67	78	89	100	111	122	133	144	160
Flow (m³/h)	46.00	42.34	38.68	35.02	31.36	27.70	24.04	20.38	16.72	13.06	9.40	6.74	4.08	1.42	0.10

Model 11: MS-6iSC46-204-380/550-15000-A/D (Max Flow: 46 m³/h, Max Head: 204m)
Head (m)	1	15	29	43	57	71	85	99	113	127	141	155	169	183	204
Flow (m³/h)	46.00	41.79	37.58	33.37	29.16	24.95	20.74	16.53	12.32	9.11	6.70	4.49	2.28	1.07	0.10

Model 12: MS-6iSC46-252-380/550-18500-A/D (Max Flow: 46 m³/h, Max Head: 252m)
Head (m)	1	18	35	52	69	86	103	120	137	154	171	188	205	222	252
Flow (m³/h)	46.00	41.36	36.72	32.08	27.44	22.80	18.16	13.52	9.88	6.24	4.20	2.56	1.32	0.68	0.10

Model 13: MS-6iSC65-63-380/550-5500-A/D (Max Flow: 65 m³/h, Max Head: 63m)
Head (m)	1	7	13	19	25	31	37	43	49	63
Flow (m³/h)	65.00	59.47	53.94	48.41	42.88	37.35	31.82	26.29	20.76	0.10

Model 14: MS-6iSC65-85-380/550-7500-A/D (Max Flow: 65 m³/h, Max Head: 85m)
Head (m)	1	10	19	28	37	46	55	64	73	85
Flow (m³/h)	65.00	59.21	53.42	47.63	41.84	36.05	30.26	24.47	18.68	0.10

Model 15: MS-6iSC65-100-380/550-9200-A/D (Max Flow: 65 m³/h, Max Head: 100m)
Head (m)	1	12	23	34	45	56	67	78	89	100
Flow (m³/h)	65.00	58.76	52.52	46.28	40.04	33.80	27.56	21.32	15.08	0.10

Model 16: MS-6iSC65-120-380/550-11000-A/D (Max Flow: 65 m³/h, Max Head: 120m)
Head (m)	1	9	17	25	33	41	49	57	65	73	81	89	97	105	120
Flow (m³/h)	65.00	60.24	55.48	50.72	45.96	41.20	36.44	31.68	26.92	22.16	17.40	12.64	7.88	3.12	0.10

Model 17: MS-6iSC65-160-380/550-15000-A/D (Max Flow: 65 m³/h, Max Head: 160m)
Head (m)	1	12	23	34	45	56	67	78	89	100	111	122	133	144	160
Flow (m³/h)	65.00	59.92	54.84	49.76	44.68	39.60	34.52	29.44	24.36	19.28	14.20	9.12	5.04	1.96	0.10

Model 18: MS-6iSC65-200-380/550-18500-A/D (Max Flow: 65 m³/h, Max Head: 200m)
Head (m)	1	15	29	43	57	71	85	99	113	127	141	155	169	183	200
Flow (m³/h)	65.00	59.35	53.70	48.05	42.40	36.75	31.10	25.45	19.80	14.15	9.50	5.85	3.20	1.35	0.10

Model 19: MS-6iSC95-66-380/550-7500-A/D (Max Flow: 95 m³/h, Max Head: 66m)
Head (m)	1	8	15	22	29	36	43	50	57	66
Flow (m³/h)	95.00	86.92	78.84	70.76	62.68	54.60	46.52	38.44	30.36	0.10

Model 20: MS-6iSC95-88-380/550-11000-A/D (Max Flow: 95 m³/h, Max Head: 88m)
Head (m)	1	10	19	28	37	46	55	64	73	88
Flow (m³/h)	95.00	86.49	77.98	69.47	60.96	52.45	43.94	35.43	26.92	0.10

Model 21: MS-6iSC95-126-380/550-15000-A/D (Max Flow: 95 m³/h, Max Head: 126m)
Head (m)	1	9	17	25	33	41	49	57	65	73	81	89	97	105	126
Flow (m³/h)	95.00	88.12	81.24	74.36	67.48	60.60	53.72	46.84	39.96	33.08	26.20	19.32	12.44	5.56	0.10

Model 22: MS-6iSC95-153-380/550-18500-A/D (Max Flow: 95 m³/h, Max Head: 153m)
Head (m)	1	11	21	31	41	51	61	71	81	91	101	111	121	131	153
Flow (m³/h)	95.00	87.63	80.26	72.89	65.52	58.15	50.78	43.41	36.04	28.67	21.30	13.93	6.56	2.89	0.10

Model 23: MS-6iSC95-180-380/550-22000-A/D (Max Flow: 95 m³/h, Max Head: 180m)
Head (m)	1	13	25	37	49	61	73	85	97	109	121	133	145	157	180
Flow (m³/h)	95.00	86.83	78.66	70.49	62.32	54.15	45.98	37.81	29.64	21.47	13.30	8.13	4.96	1.79	0.10

Model 24: MS-6iSC130-75-380/550-15000-A/D (Max Flow: 130 m³/h, Max Head: 75m)
Head (m)	1	9	17	25	33	41	49	57	65	75
Flow (m³/h)	130.00	118.92	107.84	96.76	85.68	74.60	63.52	52.44	41.36	0.10

Model 25: MS-6iSC130-105-380/550-18500-A/D (Max Flow: 130 m³/h, Max Head: 105m)
Head (m)	1	12	23	34	45	56	67	78	89	100	105
Flow (m³/h)	130.00	117.88	105.76	93.64	81.52	69.40	57.28	45.16	33.04	20.92	0.10

Model 26: MS-6iSC130-130-380/550-22000-A/D (Max Flow: 130 m³/h, Max Head: 130m)
Head (m)	1	10	19	28	37	46	55	64	73	82	91	100	109	118	130
Flow (m³/h)	130.00	120.24	110.48	100.72	90.96	81.20	71.44	61.68	51.92	42.16	32.40	22.64	12.88	3.12	0.10

Model 27: MS-8iSC150-37-380/550-11000-A/D (Max Flow: 150 m³/h, Max Head: 37m)
Head (m)	1	5	9	13	17	21	25	29	33	37
Flow (m³/h)	150.00	137.50	125.00	112.50	100.00	87.50	75.00	62.50	50.00	0.10

Model 28: MS-8iSC150-77-380/550-22000-A/D (Max Flow: 150 m³/h, Max Head: 77m)
Head (m)	1	9	17	25	33	41	49	57	65	77
Flow (m³/h)	150.00	137.37	124.74	112.11	99.48	86.85	74.22	61.59	48.96	0.10

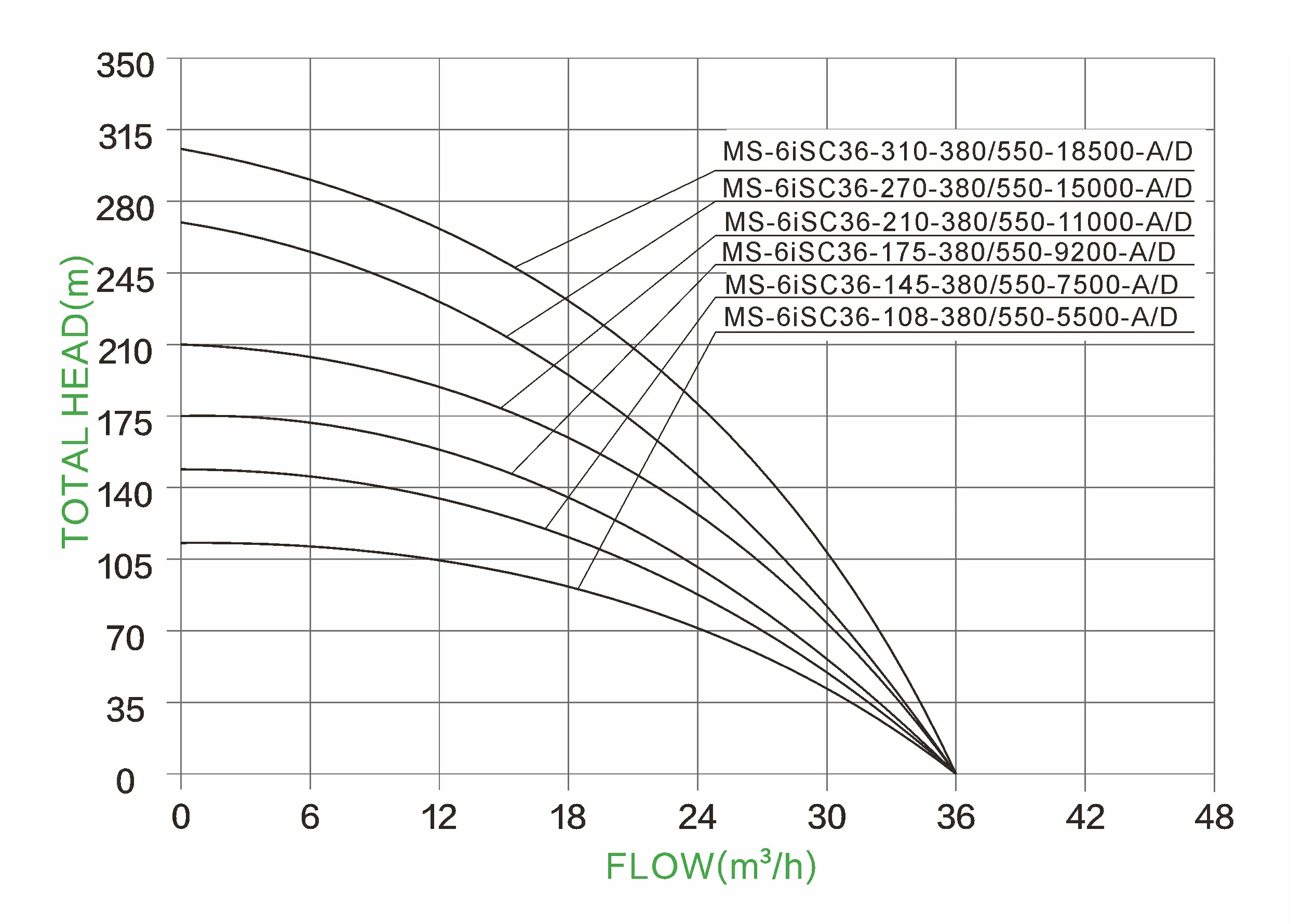

Much Solar Big Power 6iSC and 8iSC 5KW-22KW AC DC Stainless Steel Impeller Series SOLAR PUMP HYDRAULIC PERFORMANCE CURVES

1764149890 Much Solar Big Power 6iSC and 8iSC 5KW 22KW AC DC Stainless Steel Impeller Series SOL (1)

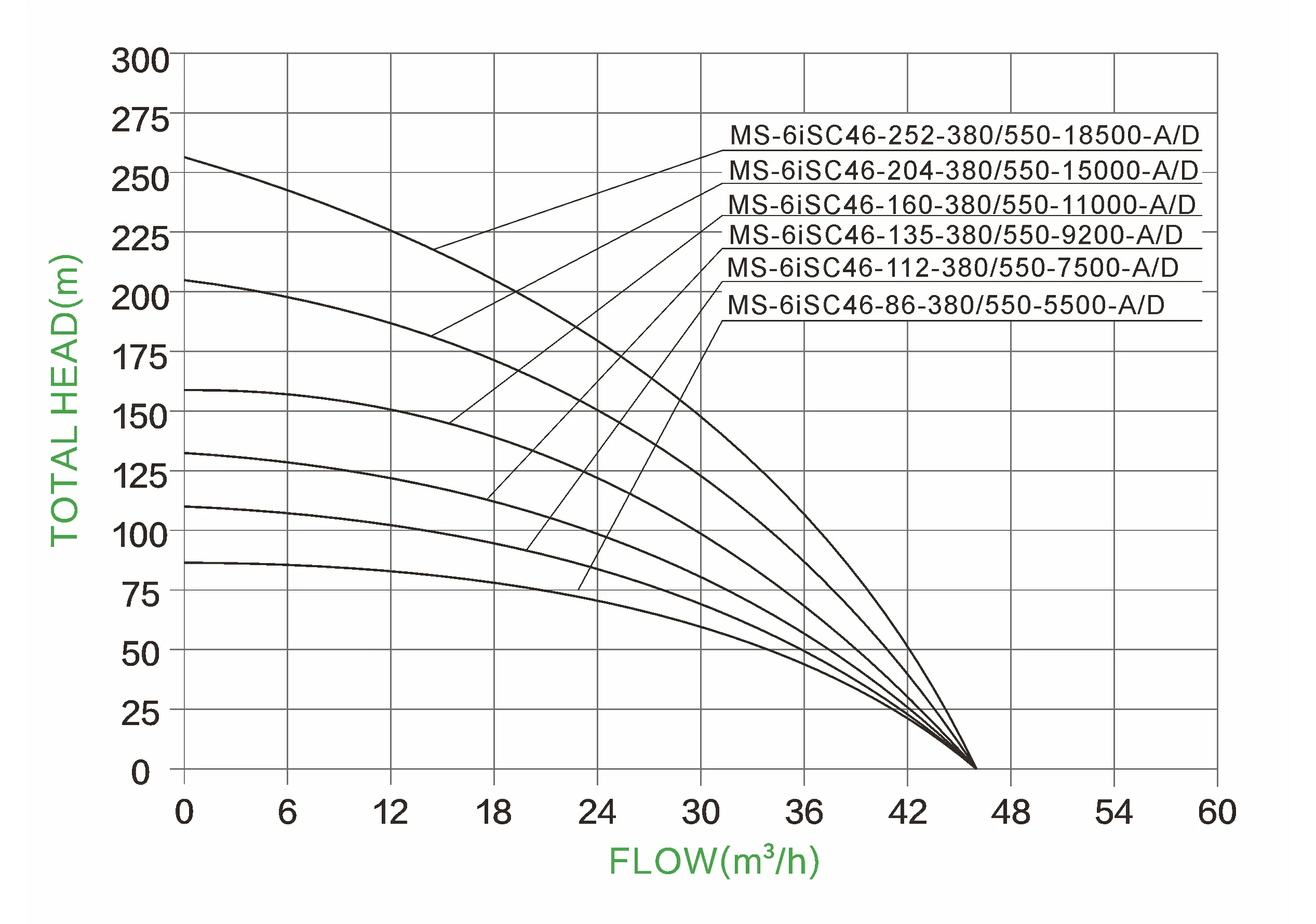

1764149887 Much Solar Big Power 6iSC and 8iSC 5KW 22KW AC DC Stainless Steel Impeller Series SOL (

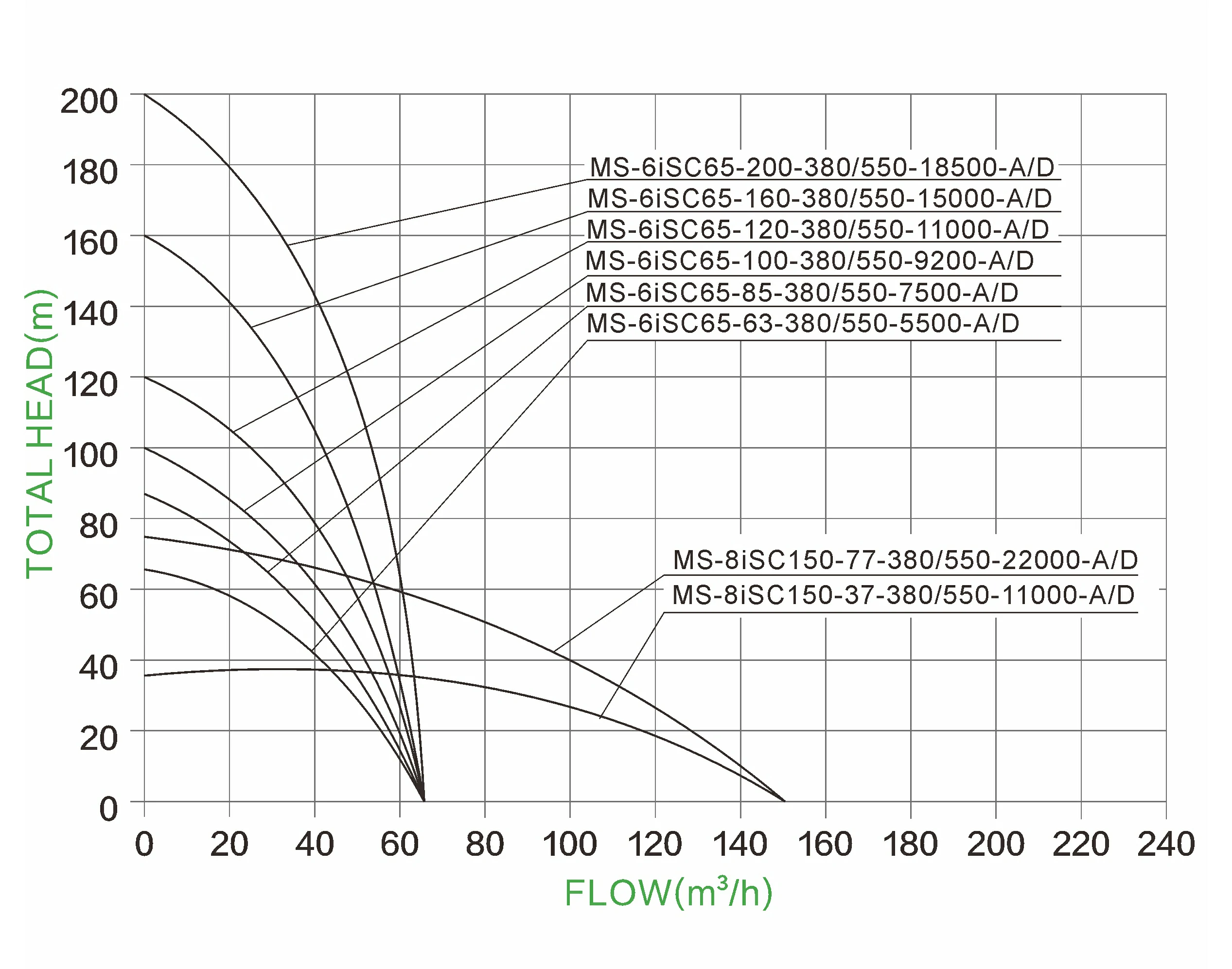

1764149879 Much Solar Big Power 6iSC and 8iSC 5KW 22KW AC DC Stainless Steel Impeller Series SOL ( (3)

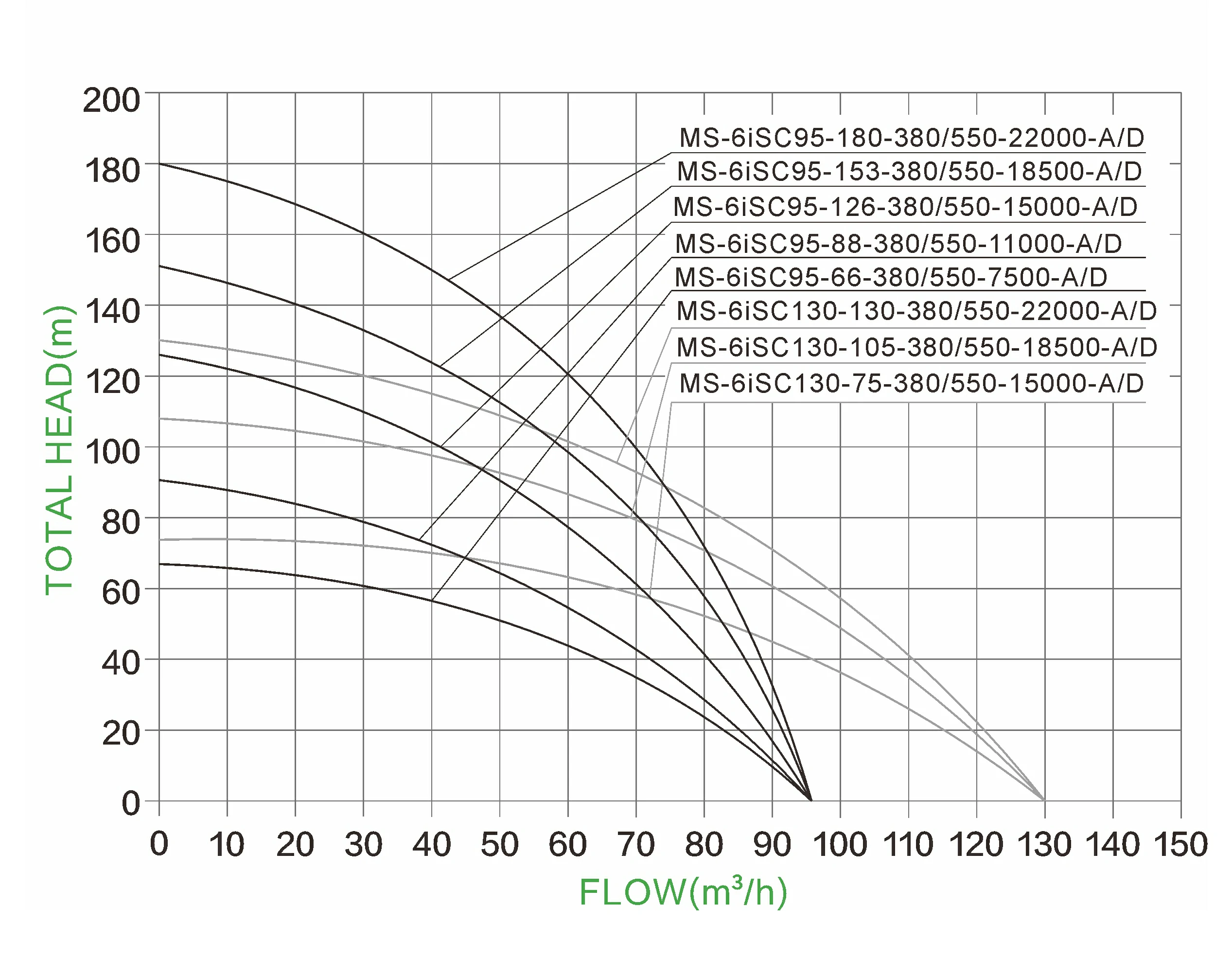

1764149883 Much Solar Big Power 6iSC and 8iSC 5KW 22KW AC DC Stainless Steel Impeller Series SOL ( (4)

4/6iSC A/D 3KW-7.5KW

Much Solar 4/6″– Big Power 4/6iSC 3KW-7.5KW AC DC Stainless Steel Impeller Series Solar Submersible Water Pumps

#	Model	Voltage	Optimum input voltage (DC)	Max. Power	Max. Flow	Max. Head	Outlet	Cable	Open circuit voltage(VOC)	Solar Panel Power
1	MS-4/6iSC30-70-380/550-3000-A/D	AC380/DC550V	520V~650V	3000W	30m³/h	70m	3″	2m	<780V	≥1.3*PUMP POWER
2	MS-4/6iSC30-100-380/550-4000-A/D	AC380/DC550V	520V~650V	4000W	30m³/h	100m	3″	2m	<780V	≥1.3*PUMP POWER
3	MS-4/6iSC30-122-380/550-5500-A/D	AC380/DC550V	520V~650V	5500W	30m³/h	122m	3″	2m	<780V	≥1.3*PUMP POWER
4	MS-4/6iSC30-143-380/550-7500-A/D	AC380/DC550V	520V~650V	7500W	30m³/h	143m	3″	2m	<780V	≥1.3*PUMP POWER
5	MS-4/6iSC36-56-380/550-3000-A/D	AC380/DC550V	520V~650V	3000W	36m³/h	56m	3″	2m	<780V	≥1.3*PUMP POWER
6	MS-4/6iSC36-80-380/550-4000-A/D	AC380/DC550V	520V~650V	4000W	36m³/h	80m	3″	2m	<780V	≥1.3*PUMP POWER
7	MS-4/6iSC36-108-380/550-5500-A/D	AC380/DC550V	520V~650V	5500W	36m³/h	108m	3″	2m	<780V	≥1.3*PUMP POWER
8	MS-4/6iSC36-145-380/550-7500-A/D	AC380/DC550V	520V~650V	7500W	36m³/h	145m	3″	2m	<780V	≥1.3*PUMP POWER
9	MS-4/6iSC46-51-380/550-3000-A/D	AC380/DC550V	520V~650V	3000W	46m³/h	51m	3″	2m	<780V	≥1.3*PUMP POWER
10	MS-4/6iSC46-68-380/550-4000-A/D	AC380/DC550V	520V~650V	4000W	46m³/h	68m	3″	2m	<780V	≥1.3*PUMP POWER
11	MS-4/6iSC46-86-380/550-5500-A/D	AC380/DC550V	520V~650V	5500W	46m³/h	86m	3″	2m	<780V	≥1.3*PUMP POWER
12	MS-4/6iSC46-112-380/550-7500-A/D	AC380/DC550V	520V~650V	7500W	46m³/h	112m	3″	2m	<780V	≥1.3*PUMP POWER
13	MS-4/6iSC65-42-380/550-4000-A/D	AC380/DC550V	520V~650V	4000W	65m³/h	42m</roid	3″	2m	<780V	≥1.3*PUMP POWER
14	MS-4/6iSC65-63-380/550-5500-A/D	AC380/DC550V	520V~650V	5500W	65m³/h	63m	3″	2m	<780V	≥1.3*PUMP POWER
15	MS-4/6iSC65-85-380/550-7500-A/D	AC380/DC550V	520V~650V	7500W	65m³/h	85m	3″	2m	<780V	≥1.3*PUMP POWER
16	MS-4/6iSC95-66-380/550-7500-A/D	AC380/DC550V	520V~650V	7500W	95m³/h	66m	3″	2m	<780V	≥1.3*PUMP POWER

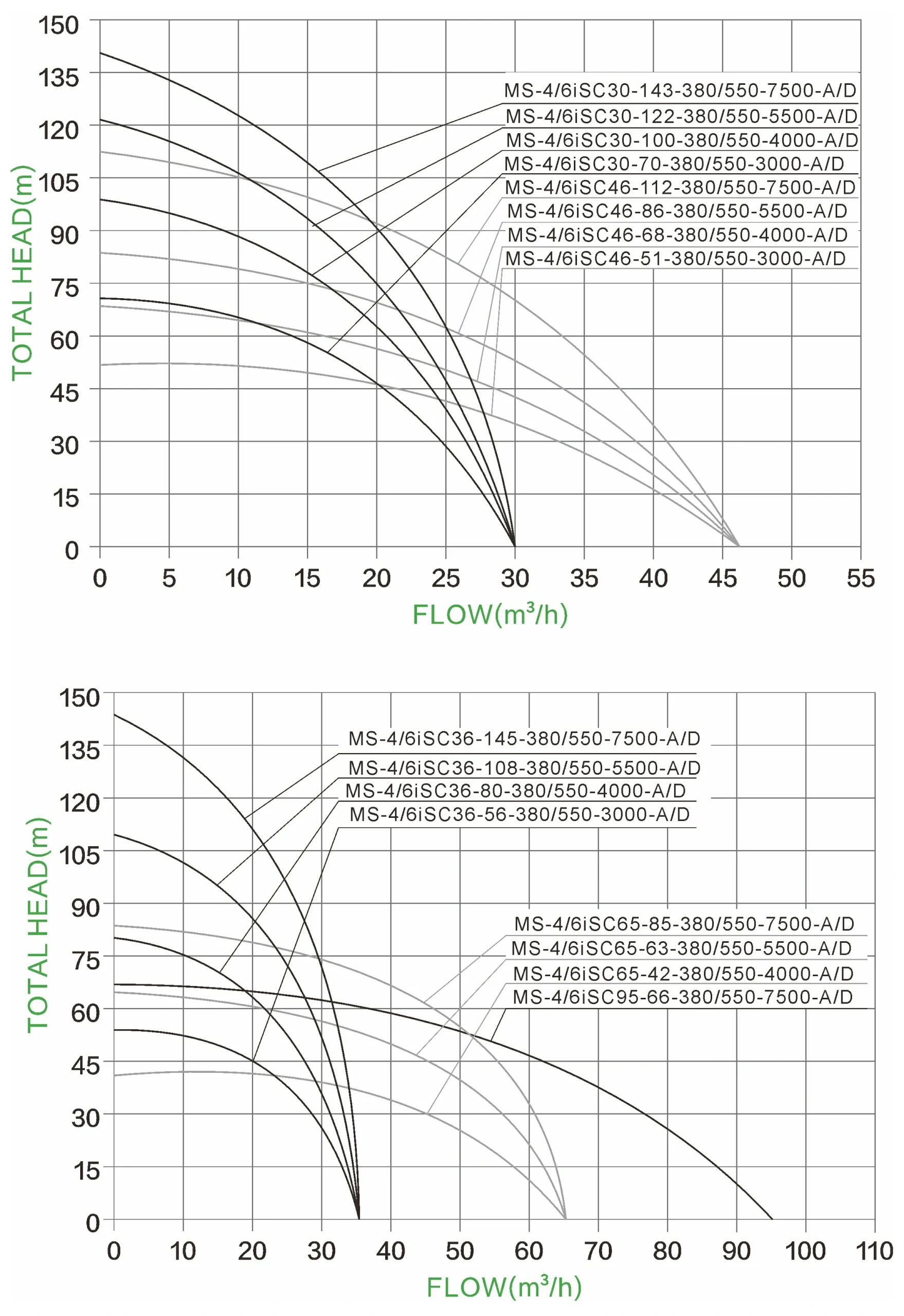

Performance Data For Big Power 4/6iSC 3KW-7.5KW AC DC Stainless Steel Impeller Series Pump Much Solar

Model 1: MS-4/6iSC30-70-380/550-3000-A/D (Max Flow: 30 m³/h, Max Head: 70m)
Head (m)	1	9	17	25	33	41	49	57	65	70
Flow (m³/h)	30.00	27.13	24.26	21.39	18.52	15.65	12.78	9.91	7.04	0.10

Model 2: MS-4/6iSC30-100-380/550-4000-A/D (Max Flow: 30 m³/h, Max Head: 100m)
Head (m)	1	8	15	22	29	36	43	50	57	64	71	78	85	92	100
Flow (m³/h)	30.00	27.81	25.62	23.43	21.24	19.05	16.86	14.67	12.48	10.29	8.10	5.91	3.72	1.53	0.10

Model 3: MS-4/6iSC30-122-380/550-5500-A/D (Max Flow: 30 m³/h, Max Head: 122m)
Head (m)	1	9	17	26	34	43	51	60	68	77	85	94	102	111	122
Flow (m³/h)	30.00	27.73	25.46	23.19	20.92	18.65	16.38	14.11	11.84	9.57	7.30	5.03	3.76	1.49	0.10

Model 4: MS-4/6iSC30-143-380/550-7500-A/D (Max Flow: 30 m³/h, Max Head: 143m)
Head (m)	1	11	21	31	41	51	61	71	81	91	101	111	121	131	143
Flow (m³/h)	30.00	27.48	24.96	22.44	19.92	17.40	14.88	12.36	9.84	7.32	5.80	4.28	2.76	1.24	0.10

Model 5: MS-4/6iSC36-56-380/550-3000-A/D (Max Flow: 36 m³/h, Max Head: 56m)
Head (m)	1	7	13	19	25	31	37	43	49	56
Flow (m³/h)	36.00	32.93	29.86	26.79	23.72	20.65	17.58	14.51	11.44	0.10

Model 6: MS-4/6iSC36-80-380/550-4000-A/D (Max Flow: 36 m³/h, Max Head: 80m)
Head (m)	1	9	18	27	36	45	54	63	72	80
Flow (m³/h)	36.00	32.94	29.88	26.82	23.76	20.70	17.64	14.58	11.52	0.10

Model 7: MS-4/6iSC36-108-380/550-5500-A/D (Max Flow: 36 m³/h, Max Head: 108m)
Head (m)	1	8	16	24	32	40	48	56	64	72	80	88	96	104	108
Flow (m³/h)	36.00	33.47	30.94	28.41	25.88	23.35	20.82	18.29	15.76	13.23	10.70	8.17	5.64	3.11	0.10

Model 8: MS-4/6iSC36-145-380/550-7500-A/D (Max Flow: 36 m³/h, Max Head: 145m)
Head (m)	1	11	21	31	41	51	61	71	81	91	101	111	121	131	145
Flow (m³/h)	36.00	33.00	30.00	27.00	24.00	21.00	18.00	15.00	12.00	9.00	6.00	4.50	3.00	1.50	0.10

Model 9: MS-4/6iSC46-51-380/550-3000-A/D (Max Flow: 46 m³/h, Max Head: 51m)
Head (m)	1	6	12	17	23	28	34	39	45	51
Flow (m³/h)	46.00	42.28	38.56	34.84	31.12	27.40	23.68	19.96	16.24	0.10

Model 10: MS-4/6iSC46-68-380/550-4000-A/D (Max Flow: 46 m³/h, Max Head: 68m)
Head (m)	1	8	15	23	30	38	45	53	60	68
Flow (m³/h)	46.00	42.27	38.54	34.81	31.08	27.35	23.62	19.89	16.16	0.10

Model 11: MS-4/6iSC46-86-380/550-5500-A/D (Max Flow: 46 m³/h, Max Head: 86m)
Head (m)	1	10	19	28	37	46	55	64	73	86
Flow (m³/h)	46.00	42.07	38.14	34.21	30.28	26.35	22.42	18.49	14.56	0.10

Model 12: MS-4/6iSC46-112-380/550-7500-A/D (Max Flow: 46 m³/h, Max Head: 112m)
Head (m)	1	8	16	24	32	40	48	56	64	72	80	88	96	104	112
Flow (m³/h)	46.00	42.74	39.48	36.22	32.96	29.70	26.44	23.18	19.92	16.66	13.40	10.14	6.88	3.62	0.10

Model 13: MS-4/6iSC65-42-380/550-4000-A/D (Max Flow: 65 m³/h, Max Head: 42m)
Head (m)	1	5	10	15	20	25	30	35	40	42
Flow (m³/h)	65.00	59.76	54.52	49.28	44.04	38.80	33.56	28.32	23.08	0.10

Model 14: MS-4/6iSC65-63-380/550-5500-A/D (Max Flow: 65 m³/h, Max Head: 63m)
Head (m)	1	7	14	21	28	35	42	49	56	63
Flow (m³/h)	65.00	60.08	55.16	50.24	45.32	40.40	35.48	30.56	25.64	0.10

Model 15: MS-4/6iSC65-85-380/550-7500-A/D (Max Flow: 65 m³/h, Max Head: 85m)
Head (m)	1	7	14	21	28	35	42	49	56	63	70	77	84	85
Flow (m³/h)	65.00	61.01	57.02	53.03	49.04	45.05	41.06	37.07	33.08	29.09	25.10	21.11	17.12	0.10

Model 16: MS-4/6iSC95-66-380/550-7500-A/D (Max Flow: 95 m³/h, Max Head: 66m)
Head (m)	1	8	15	23	30	38	45	53	60	66
Flow (m³/h)	95.00	87.46	79.92	72.38	64.84	57.30	49.76	42.22	34.68	0.10

Much Solar Big Power 4/6iSC 3KW-7.5KW AC DC Stainless Steel Impeller Series SOLAR PUMP HYDRAULIC PERFORMANCE CURVES

1764147064 Much Solar Big Power 46iSC 3KW 7.5KW AC DC Stainless Steel Impeller Series SOLAR PUMP HYDRAULIC PERFORMANCE CURVES

4iSC A/D 3KW-7.5KW

Much Solar 4″– Big Power 4iSC 3KW-7.5KW AC DC Stainless Steel Impeller Series Solar Submersible Water Pumps

#	Model	Voltage	Optimum input voltage (DC)	Power	Max. Flow	Max. Head	Outlet	Cable	Open circuit voltage (VOC)	Solar panel Power
1	MS-4iSC6–300–380/550–3000–A/D	AC380/DC550V	520V–650V	3000W	6m³/h	300m	1.25″	2m	<780V	≥1.3*PUMP POWER
2	MS-4iSC6–360–380/550–4000–A/D	AC380/DC550V	520V–650V	4000W	6m³/h	360m	1.25″	2m	<780V	≥1.3*PUMP POWER
3	MS-4iSC6–420–380/550–5500–A/D	AC380/DC550V	520V–650V	5500W	6m³/h	420m	1.25″	2m	<780V	≥1.3*PUMP POWER
4	MS-4iSC9.5–220–380/550–3000–A/D	AC380/DC550V	520V–650V	3000W	9.5m³/h	220m	2″	2m	<780V	≥1.3*PUMP POWER
5	MS-4iSC9.5–275–380/550–4000–A/D	AC380/DC550V	520V–650V	4000W	9.5m³/h	275m	2″	2m	<780V	≥1.3*PUMP POWER
6	MS-4iSC10–313–380/550–5500–A/D	AC380/DC550V	520V–650V	5500W	10m³/h	313m	2″	2m	<780V	≥1.3*PUMP POWER
7	MS-4iSC11–339–380/550–7500–A/D	AC380/DC550V	520V–650V	7500W	11m³/h	339m	2″	2m	<780V	≥1.3*PUMP POWER
8	MS-4iSC18–137–380/550–3000–A/D	AC380/DC550V	520V–650V	3000W	18m³/h	137m	2″	2m	<780V	≥1.3*PUMP POWER
9	MS-4iSC18–168–380/550–4000–A/D	AC380/DC550V	520V–650V	4000W	18m³/h	168m	2″	2m	<780V	≥1.3*PUMP POWER
10	MS-4iSC18–200–380/550–5500–A/D	AC380/DC550V	520V–650V	5500W	18m³/h	200m	2″	2m	<780V	≥1.3*PUMP POWER
11	MS-4iSC18–235–380/550–7500–A/D	AC380/DC550V	520V–650V	7500W	18m³/h	235m	2″	2m	<780V	≥1.3*PUMP POWER
12	MS-4iSC20–82–380/550–3000–A/D	AC380/DC550V	520V–650V	3000W	20m³/h	82m	2″	2m	<780V	≥1.3*PUMP POWER
13	MS-4iSC22–115–380/550–4000–A/D	AC380/DC550V	520V–650V	4000W	22m³/h	115m	2″	2m	<780V	≥1.3*PUMP POWER
14	MS-4iSC22–143–380/550–5500–A/D	AC380/DC550V	520V–650V	5500W	22m³/h	143m	2″	2m	<780V	≥1.3*PUMP POWER
15	MS-4iSC22–169–380/550–7500–A/D	AC380/DC550V	520V–650V	7500W	22m³/h	169m	2″	2m	<780V	≥1.3*PUMP POWER
16	MS-4iSC30–52–380/550–3000–A/D	AC380/DC550V	520V–650V	3000W	30m³/h	52m	2″	2m	<780V	≥1.3*PUMP POWER
17	MS-4iSC30–74–380/550–4000–A/D	AC380/DC550V	520V–650V	4000W	30m³/h	74m	2″	2m	<780V	≥1.3*PUMP POWER
18	MS-4iSC30–96–380/550–5500–A/D	AC380/DC550V	520V–650V	5500W	30m³/h	96m	2″	2m	<780V	≥1.3*PUMP POWER
19	MS-4iSC30–155–380/550–7500–A/D	AC380/DC550V	520V–650V	7500W	30m³/h	155m	2″	2m	<780V	≥1.3*PUMP POWER

Performance Data For Big Power 4iSC 3KW-7.5KW AC DC Stainless Steel Impeller Series Pump Much Solar

Model 1: MS-4iSC6–300–380/550–3000–A/D (Max Flow: 6.0 m³/h, Max Head: 300m)
Head (m)	1	22	44	65	86	108	129	151	172	193	215	236	257	279	300
Flow (m³/h)	6.00	5.59	5.15	4.74	4.32	3.89	3.47	3.04	2.63	2.21	1.78	1.36	0.95	0.51	0.10

Model 2: MS-4iSC6–360–380/550–4000–A/D (Max Flow: 6.0 m³/h, Max Head: 360m)
Head (m)	1	27	52	78	104	129	155	181	206	232	257	283	309	334	360
Flow (m³/h)	6.00	5.57	5.16	4.73	4.31	3.90	3.47	3.04	2.63	2.20	1.79	1.37	0.94	0.53	0.10

Model 3: MS-4iSC6–420–380/550–5500–A/D (Max Flow: 6.0 m³/h, Max Head: 420m)
Head (m)	1	31	61	91	121	151	181	211	240	270	300	330	360	390	420
Flow (m³/h)	6.00	5.58	5.16	4.73	4.31	3.89	3.47	3.04	2.63	2.21	1.79	1.37	0.94	0.52	0.10

Model 4: MS-4iSC9.5–220–380/550–3000–A/D (Max Flow: 9.5 m³/h, Max Head: 220m)
Head (m)	1	17	32	48	64	79	95	111	126	142	157	173	189	204	220
Flow (m³/h)	9.50	8.81	8.17	7.48	6.80	6.15	5.47	4.78	4.13	3.45	2.80	2.12	1.43	0.79	0.10

Model 5: MS-4iSC9.5–275–380/550–4000–A/D (Max Flow: 9.5 m³/h, Max Head: 275m)
Head (m)	1	21	40	60	79	99	118	138	158	177	197	216	236	255	275
Flow (m³/h)	9.50	8.81	8.16	7.48	6.82	6.14	5.49	4.80	4.11	3.46	2.78	2.12	1.44	0.79	0.10

Model 6: MS-4iSC10–313–380/550–5500–A/D (Max Flow: 10.0 m³/h, Max Head: 313m)
Head (m)	1	23	46	68	90	112	135	157	179	202	224	246	268	291	313
Flow (m³/h)	10.00	9.30	8.57	7.87	7.18	6.48	5.75	5.05	4.35	3.62	2.92	2.23	1.53	0.80	0.10

Model 7: MS-4iSC11–339–380/550–7500–A/D (Max Flow: 11.0 m³/h, Max Head: 339m)
Head (m)	1	25	49	73	98	122	146	170	194	218	242	267	291	315	339
Flow (m³/h)	11.00	10.23	9.45	8.68	7.87	7.10	6.32	5.55	4.78	4.00	3.23	2.42	1.65	0.87	0.10

Model 8: MS-4iSC18–137–380/550–3000–A/D (Max Flow: 18.0 m³/h, Max Head: 137m)
Head (m)	1	11	20	30	40	50	59	69	79	88	98	108	118	127	137
Flow (m³/h)	18.00	16.68	15.50	14.18	12.87	11.55	10.37	9.05	7.73	6.55	5.23	3.92	2.60	1.42	0.10

Model 9: MS-4iSC18–168–380/550–4000–A/D (Max Flow: 18.0 m³/h, Max Head: 168m)
Head (m)	1	13	25	37	49	61	73	85	96	108	120	132	144	156	168
Flow (m³/h)	18.00	16.71	15.43	14.14	12.86	11.57	10.28	9.00	7.82	6.53	5.24	3.96	2.67	1.39	0.10

Model 10: MS-4iSC18–200–380/550–5500–A/D (Max Flow: 18.0 m³/h, Max Head: 200m)
Head (m)	1	15	29	44	58	72	86	101	115	129	143	157	172	186	200
Flow (m³/h)	18.00	16.74	15.48	14.13	12.87	11.61	10.35	9.01	7.75	6.49	5.23	3.97	2.62	1.36	0.10

Model 11: MS-4iSC18–235–380/550–7500–A/D (Max Flow: 18.0 m³/h, Max Head: 235m)
Head (m)	1	18	34	51	68	85	101	118	135	151	168	185	202	218	235
Flow (m³/h)	18.00	16.70	15.48	14.18	12.87	11.57	10.35	9.05	7.75	6.53	5.23	3.92	2.62	1.40	0.10

Model 12: MS-4iSC20–82–380/550–3000–A/D (Max Flow: 20.0 m³/h, Max Head: 82m)
Head (m)	1	10	19	28	37	46	55	64	73	82
Flow (m³/h)	20.00	17.79	15.58	13.37	11.16	8.94	6.73	4.52	2.31	0.10

Model 13: MS-4iSC22–115–380/550–4000–A/D (Max Flow: 22.0 m³/h, Max Head: 115m)
Head (m)	1	9	17	25	34	42	50	58	66	74	82	91	99	107	115
Flow (m³/h)	22.00	20.46	18.93	17.39	15.66	14.12	12.59	11.05	9.51	7.98	6.44	4.71	3.17	1.64	0.10

Model 14: MS-4iSC22–143–380/550–5500–A/D (Max Flow: 22.0 m³/h, Max Head: 143m)
Head (m)	1	11	21	31	42	52	62	72	82	92	102	113	123	133	143
Flow (m³/h)	22.00	20.46	18.92	17.37	15.68	14.13	12.59	11.05	9.51	7.97	6.42	4.73	3.18	1.64	0.10

Model 15: MS-4iSC22–169–380/550–7500–A/D (Max Flow: 22.0 m³/h, Max Head: 169m)
Head (m)	1	13	25	37	49	61	73	85	97	109	121	133	145	157	169
Flow (m³/h)	22.00	20.44	18.87	17.31	15.74	14.18	12.61	11.05	9.49	7.92	6.36	4.79	3.23	1.66	0.10

Model 16: MS-4iSC30–52–380/550–3000–A/D (Max Flow: 30.0 m³/h, Max Head: 52m)
Head (m)	1	7	12	18	24	29	35	41	46	52
Flow (m³/h)	30.00	26.48	23.55	20.03	16.52	13.58	10.07	6.55	3.62	0.10

Model 17: MS-4iSC30–74–380/550–4000–A/D (Max Flow: 30.0 m³/h, Max Head: 74m)
Head (m)	1	9	17	25	33	42	50	58	66	74
Flow (m³/h)	30.00	26.72	23.45	20.17	16.89	13.21	9.93	6.65	3.38	0.10

Model 18: MS-4iSC30–96–380/550–5500–A/D (Max Flow: 30.0 m³/h, Max Head: 96m)
Head (m)	1	12	22	33	43	54	64	75	85	96
Flow (m³/h)	30.00	26.54	23.39	19.93	16.78	13.32	10.17	6.71	3.56	0.10

Model 19: MS-4iSC30–155–380/550–7500–A/D (Max Flow: 30.0 m³/h, Max Head: 155m)
Head (m)	1	12	23	34	45	56	67	78	89	100	111	122	133	144	155
Flow (m³/h)	30.00	27.86	25.73	23.59	21.46	19.32	17.19	15.05	12.91	10.78	8.64	6.51	4.37	2.24	0.10

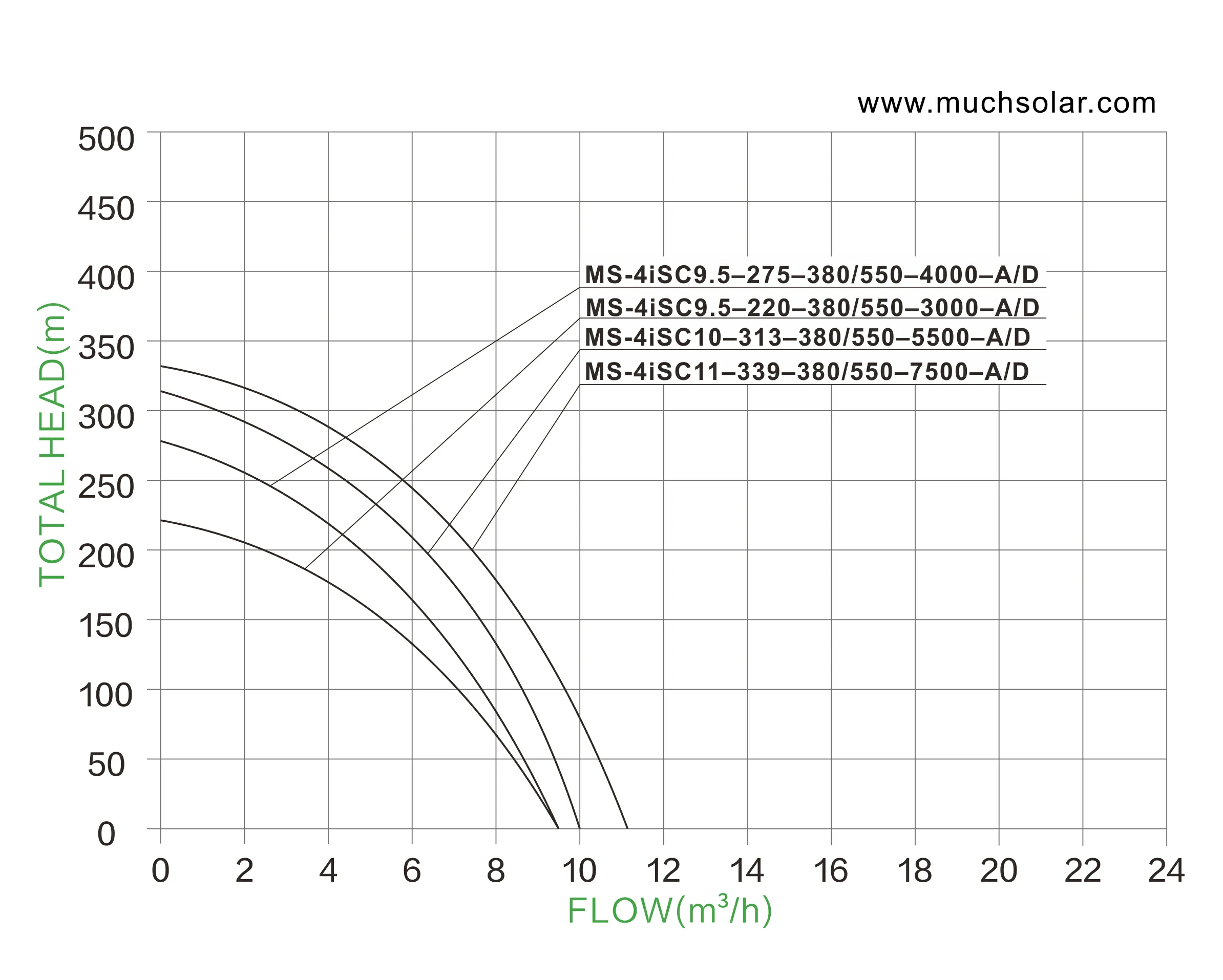

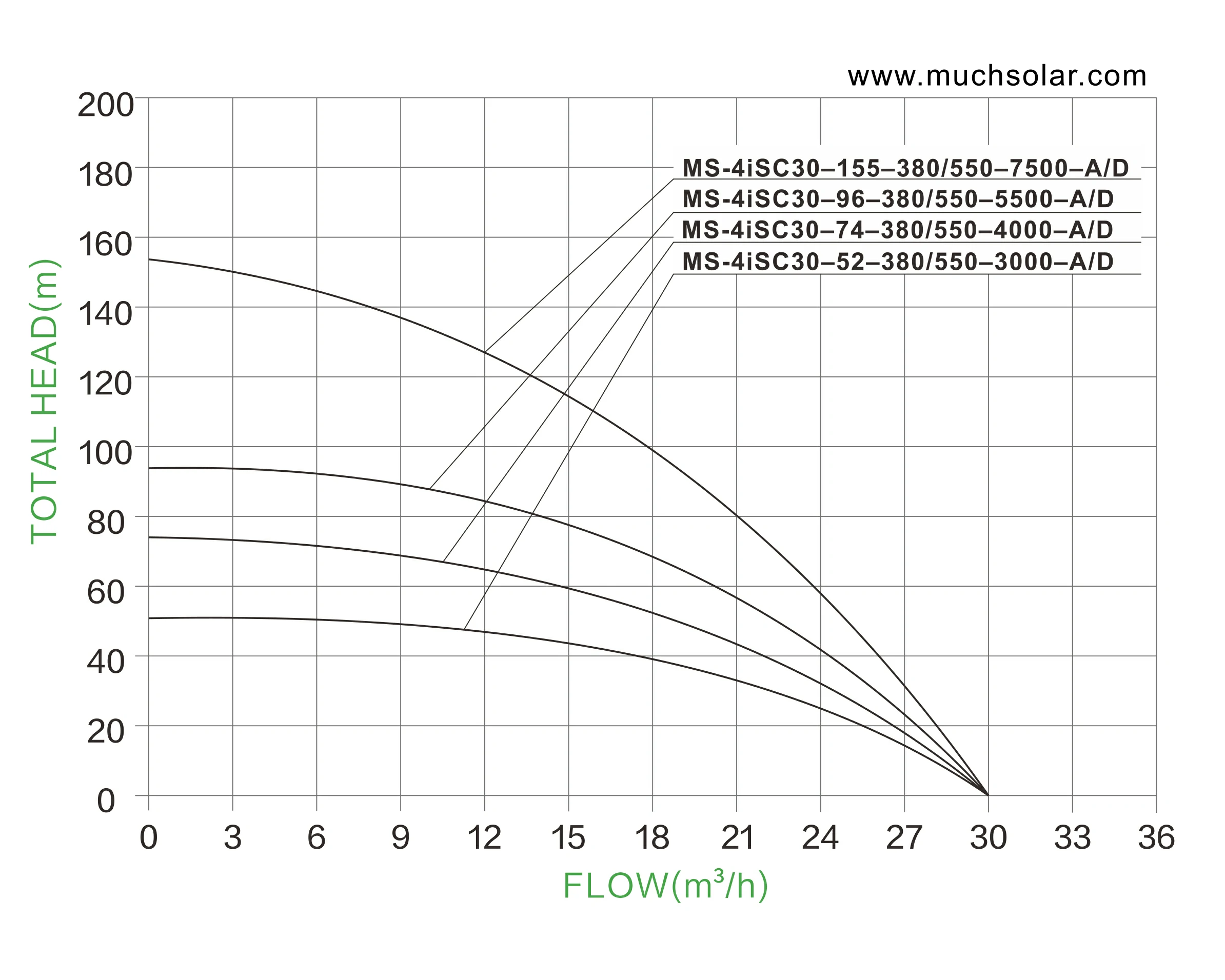

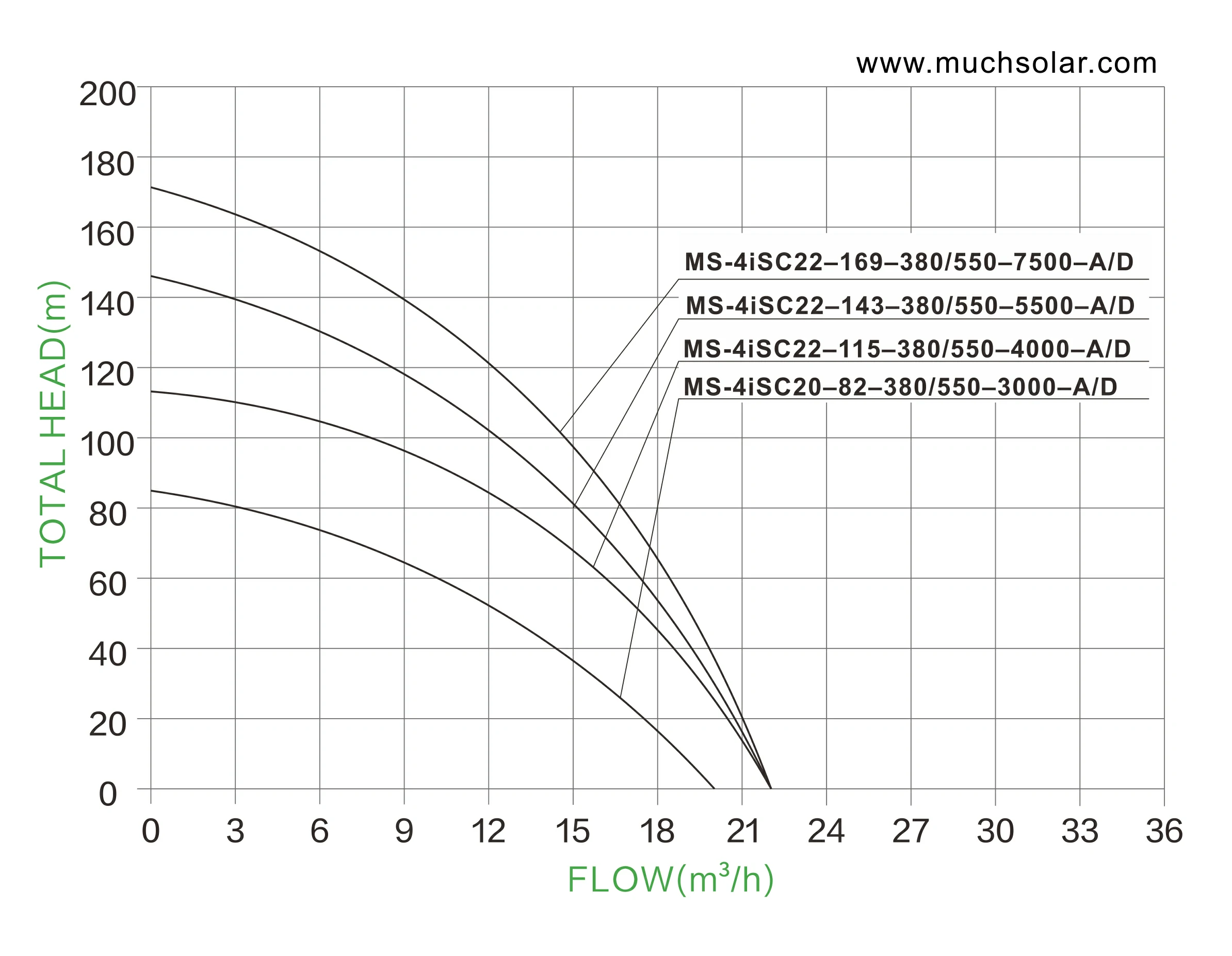

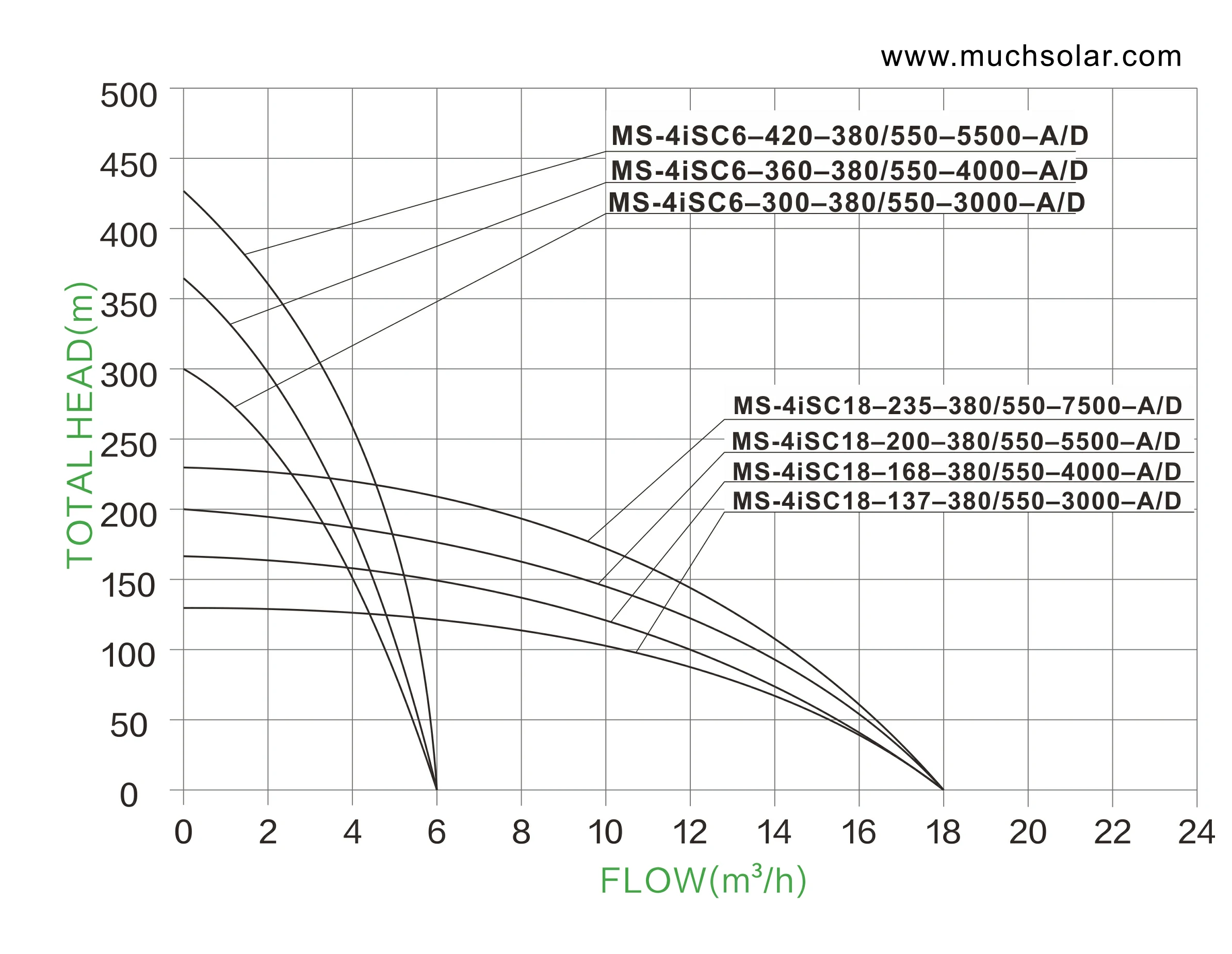

Much Solar Big Power 4iSC 3KW-7.5KW AC DC Stainless Steel Impeller Series SOLAR PUMP HYDRAULIC PERFORMANCE CURVES

1762250305 Much Solar Big Power 4iSC 3KW 7.5KW AC DC Stainless Steel Impeller Series SOLAR PUMP HYDRAULIC PERFORMANCE CURVES (1)

1762250309 Much Solar Big Power 4iSC 3KW 7.5KW AC DC Stainless Steel Impeller Series SOLAR PUMP HYDRAULIC PERFORMANCE CURVES (2)

1762250312 Much Solar Big Power 4iSC 3KW 7.5KW AC DC Stainless Steel Impeller Series SOLAR PUMP HYDRAULIC PERFORMANCE CURVES (3)

1762250316 Much Solar Big Power 4iSC 3KW 7.5KW AC DC Stainless Steel Impeller Series SOLAR PUMP HYDRAULIC PERFORMANCE CURVES (4)

4iPC A/D 3KW-7.5KW

Much Solar 4″– Big Power 4iPC 3KW-7.5KW AC DC Solar submersible water pumps

#	Model	Voltage	Optimum input voltage (DC)	Max. Power	Max. Flow	Max. Head	Outlet	Cable	Open circuit voltage (VOC)	Solar panel Power
1	MS-4iPC7-230-380/550-3000-A/D	AC380V/DC550V	520V-650V	3000W	7m³/h	230m	1.25″	2m	<780V	≥1.3*PUMP POWER
2	MS-4iPC7-300-380/550-4000-A/D	AC380V/DC550V	520V-650V	4000W	7m³/h	300m	1.25″	2m	<780V	≥1.3*PUMP POWER
3	MS-4iPC7-355-380/550-5500-A/D	AC380V/DC550V	520V-650V	5500W	7m³/h	355m	1.25″	2m	<780V	≥1.3*PUMP POWER
4	MS-4iPC7-440-380/550-7500-A/D	AC380V/DC550V	520V-650V	7500W	7m³/h	440m	1.25″	2m	<780V	≥1.3*PUMP POWER
5	MS-4iPC9.5-195-380/550-3000-A/D	AC380V/DC550V	520V-650V	3000W	9.5m³/h	195m	2″	2m	<780V	≥1.3*PUMP POWER
6	MS-4iPC9.5-250-380/550-4000-A/D	AC380V/DC550V	520V-650V	4000W	9.5m³/h	250m	2″	2m	<780V	≥1.3*PUMP POWER
7	MS-4iPC9.5-325-380/550-5500-A/D	AC380V/DC550V	520V-650V	5500W	9.5m³/h	325m	2″	2m	<780V	≥1.3*PUMP POWER
8	MS-4iPC9.5-420-380/550-7500-A/D	AC380V/DC550V	520V-650V	7500W	9.5m³/h	420m	2″	2m	<780V	≥1.3*PUMP POWER
9	MS-4iPC12-213-380/550-4000-A/D	AC380V/DC550V	520V-650V	4000W	12m³/h	213m	2″	2m	<780V	≥1.3*PUMP POWER
10	MS-4iPC12-265-380/550-5500-A/D	AC380V/DC550V	520V-650V	5500W	12m³/h	265m	2″	2m	<780V	≥1.3*PUMP POWER
11	MS-4iPC12-315-380/550-7500-A/D	AC380V/DC550V	520V-650V	7500W	12m³/h	315m	2″	2m	<780V	≥1.3*PUMP POWER
12	MS-4iPC14-150-380/550-3000-A/D	AC380V/DC550V	520V-650V	3000W	14m³/h	150m	2″	2m	<780V	≥1.3*PUMP POWER
13	MS-4iPC14-190-380/550-4000-A/D	AC380V/DC550V	520V-650V	4000W	14m³/h	190m	2″	2m	<780V	≥1.3*PUMP POWER
14	MS-4iPC14-240-380/550-5500-A/D	AC380V/DC550V	520V-650V	5500W	14m³/h	240m	2″	2m	<780V	≥1.3*PUMP POWER
15	MS-4iPC14-270-380/550-7500-A/D	AC380V/DC550V	520V-650V	7500W	14m³/h	270m	2″	2m	<780V	≥1.3*PUMP POWER
16	MS-4iPC18-112-380/550-3000-A/D	AC380V/DC550V	520V-650V	3000W	18m³/h	112m	2″	2m	<780V	≥1.3*PUMP POWER
17	MS-4iPC18-140-380/550-4000-A/D	AC380V/DC550V	520V-650V	4000W	18m³/h	140m	2″	2m	<780V	≥1.3*PUMP POWER
18	MS-4iPC18-175-380/550-5500-A/D	AC380V/DC550V	520V-650V	5500W	18m³/h	175m	2″	2m	<780V	≥1.3*PUMP POWER
19	MS-4iPC18-220-380/550-7500-A/D	AC380V/DC550V	520V-650V	7500W	18m³/h	220m	2″	2m	<780V	≥1.3*PUMP POWER
20	MS-4iPC22-78-380/550-3000-A/D	AC380V/DC550V	520V-650V	3000W	22m³/h	78m	2″	2m	<780V	≥1.3*PUMP POWER
21	MS-4iPC22-98-380/550-4000-A/D	AC380V/DC550V	520V-650V	4000W	22m³/h	98m	2″	2m	<780V	≥1.3*PUMP POWER
22	MS-4iPC22-135-380/550-5500-A/D	AC380V/DC550V	520V-650V	5500W	22m³/h	135m	2″	2m	<780V	≥1.3*PUMP POWER
23	MS-4iPC22-170-380/550-7500-A/D	AC380V/DC550V	520V-650V	7500W	22m³/h	170m	2″	2m	<780V	≥1.3*PUMP POWER
24	MS-4iPC30-70-380/550-4000-A/D	AC380V/DC550V	520V-650V	4000W	30m³/h	70m	2″	2m	<780V	≥1.3*PUMP POWER
25	MS-4iPC30-80-380/550-5500-A/D	AC380V/DC550V	520V-650V	5500W	30m³/h	80m	2″	2m	<780V	≥1.3*PUMP POWER
26	MS-4iPC30-90-380/550-7500-A/D	AC380V/DC550V	520V-650V	7500W	30m³/h	90m	2″	2m	<780V	≥1.3*PUMP POWER
27	MS-4iPC41-52-380/550-3000-A/D	AC380V/DC550V	520V-650V	3000W	41m³/h	52m	3″	2m	<780V	≥1.3*PUMP POWER
28	MS-4iPC41-60-380/550-4000-A/D	AC380V/DC550V	520V-650V	4000W	41m³/h	60m	3″	2m	<780V	≥1.3*PUMP POWER
29	MS-4iPC41-82-380/550-5500-A/D	AC380V/DC550V	520V-650V	5500W	41m³/h	82m	3″	2m	<780V	≥1.3*PUMP POWER
30	MS-4iPC41-102-380/550-7500-A/D	AC380V/DC550V	520V-650V	7500W	41m³/h	102m	3″	2m	<780V	≥1.3*PUMP POWER

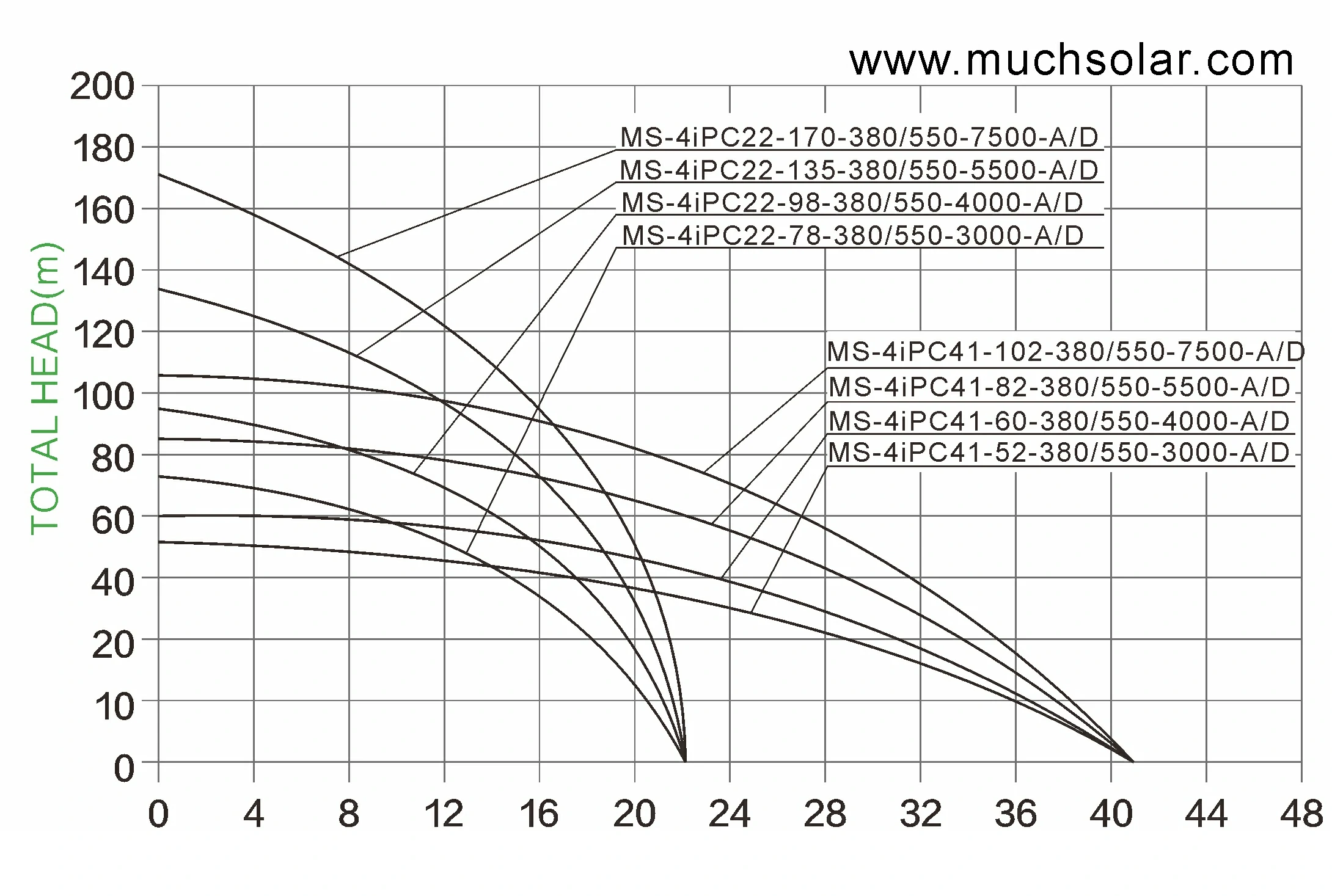

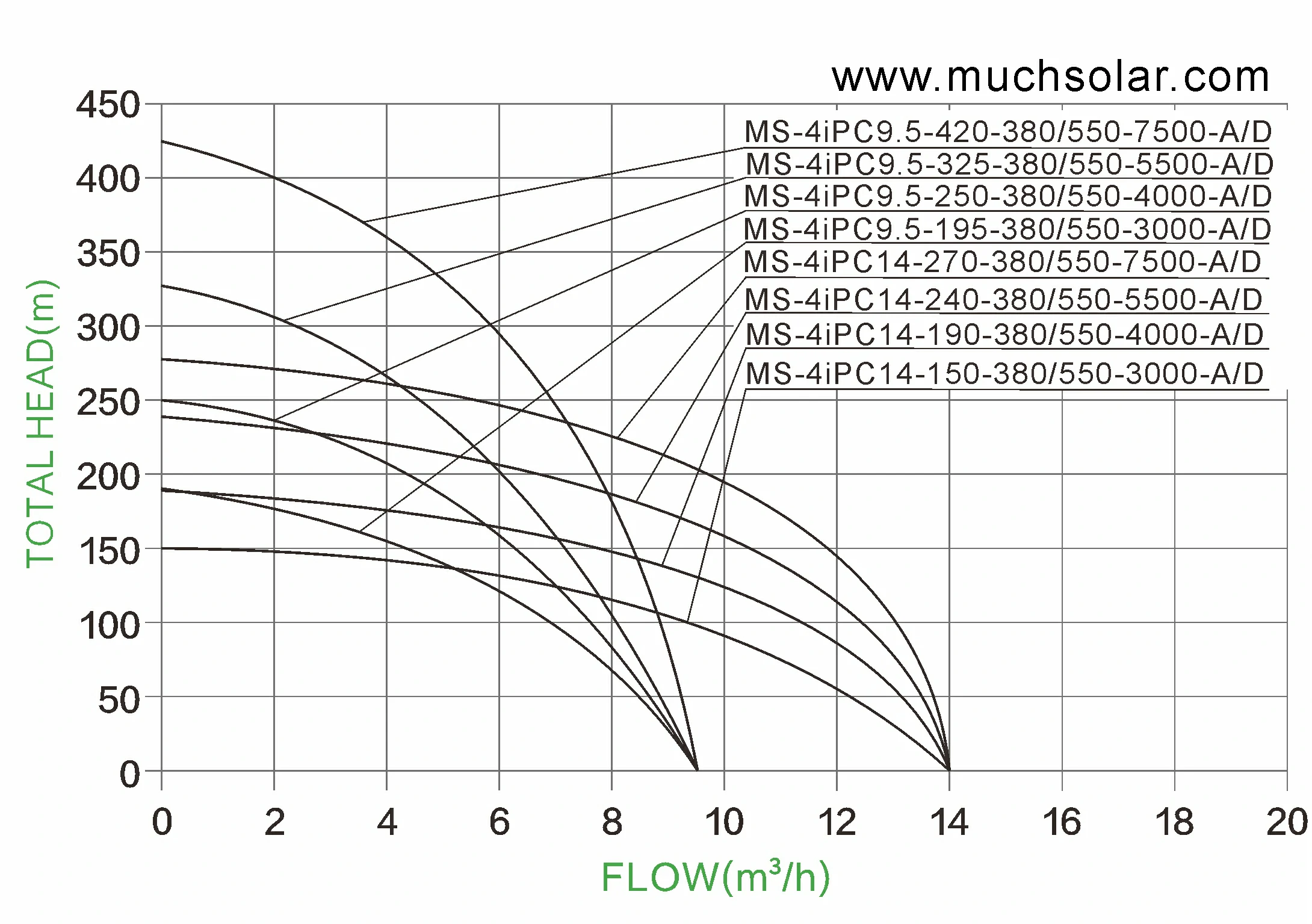

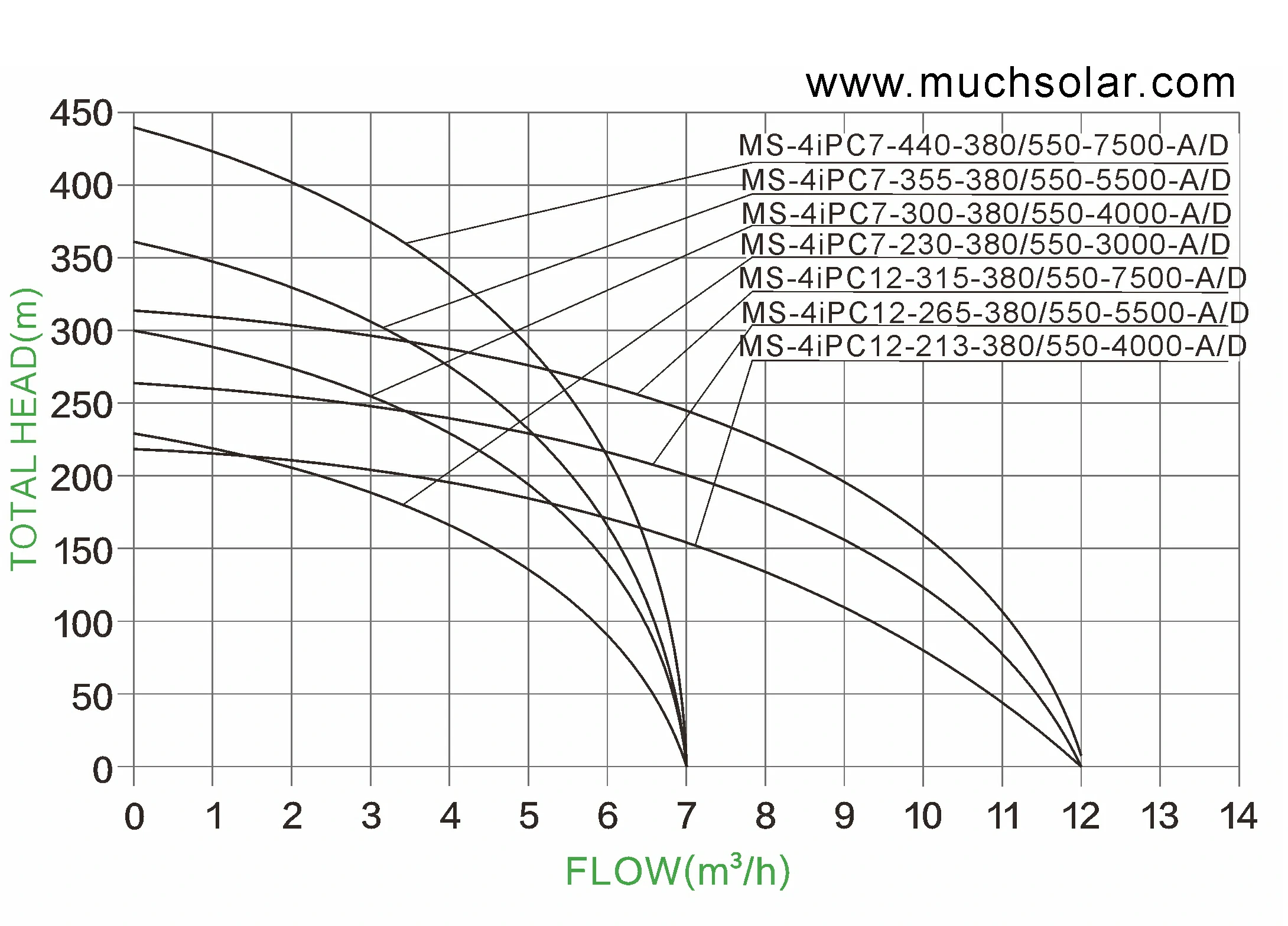

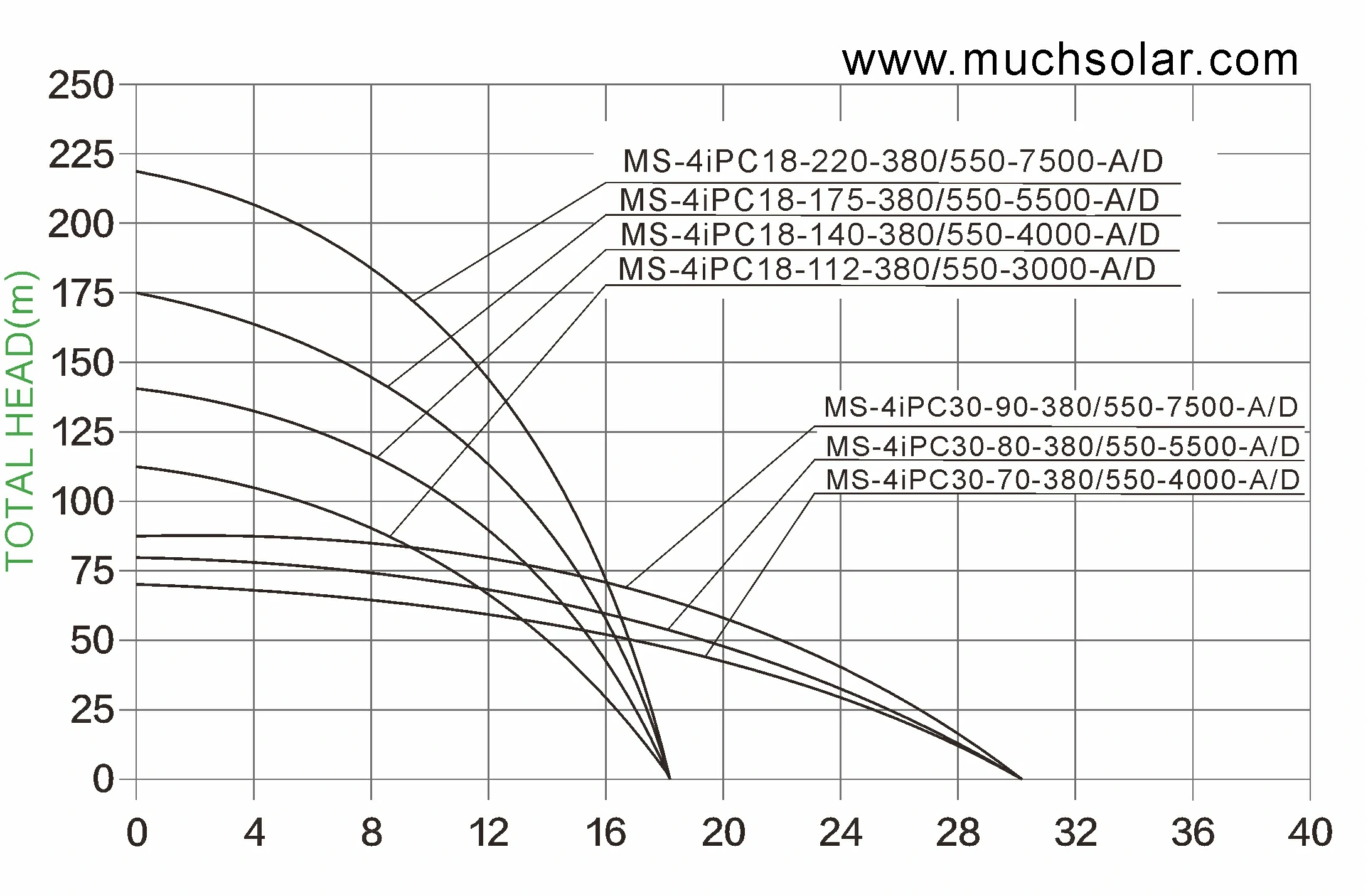

Performance Data for Big Power 4iPC 3KW-7.5KW AC DC Plastic Impeller Series Pump Much Solar

Model 1: MS-4iPC7-230-380/550-3000-A/D (Max Flow: 7.0 m³/h, Max Head: 230m)
Head (m)	1	17	33	49	65	81	97	113	129	145	161	177	193	209	230
Flow (m³/h)	7.00	6.52	6.04	5.55	5.07	4.59	4.11	3.63	3.14	2.66	2.18	1.70	1.21	0.73	0.10

Model 2: MS-4iPC7-300-380/550-4000-A/D (Max Flow: 7.0 m³/h, Max Head: 300m)
Head (m)	1	22	43	64	85	106	127	148	169	190	211	232	253	274	300
Flow (m³/h)	7.00	6.52	6.03	5.55	5.06	4.58	4.09	3.61	3.12	2.64	2.15	1.67	1.18	0.70	0.10

Model 3: MS-4iPC7-355-380/550-5500-A/D (Max Flow: 7.0 m³/h, Max Head: 355m)
Head (m)	1	26	51	76	101	126	151	176	201	226	251	276	301	326	355
Flow (m³/h)	7.00	6.51	6.03	5.54	5.05	4.56	4.08	3.59	3.10	2.61	2.13	1.64	1.15	0.67	0.10

Model 4: MS-4iPC7-440-380/550-7500-A/D (Max Flow: 7.0 m³/h, Max Head: 440m)
Head (m)	1	32	63	94	125	156	187	218	249	280	311	342	373	404	440
Flow (m³/h)	7.00	6.51	6.03	5.54	5.05	4.56	4.08	3.59	3.10	2.61	2.13	1.64	1.15	0.67	0.10

Model 5: MS-4iPC9.5-195-380/550-3000-A/D (Max Flow: 9.5 m³/h, Max Head: 195m)
Head (m)	1	15	29	43	57	71	85	99	113	127	141	155	169	183	195
Flow (m³/h)	9.50	8.82	8.14	7.46	6.79	6.11	5.43	4.75	4.07	3.39	2.72	2.04	1.36	0.68	0.10

Model 6: MS-4iPC9.5-250-380/550-4000-A/D (Max Flow: 9.5 m³/h, Max Head: 250m)
Head (m)	1	19	37	55	73	91	109	127	145	163	181	199	217	235	250
Flow (m³/h)	9.50	8.82	8.14	7.46	6.78	6.10	5.42	4.74	4.06	3.38	2.70	2.03	1.35	0.67	0.10

Model 7: MS-4iPC9.5-325-380/550-5500-A/D (Max Flow: 9.5 m³/h, Max Head: 325m)
Head (m)	1	24	47	70	93	116	139	162	185	208	231	254	277	300	325
Flow (m³/h)	9.50	8.83	8.17	7.50	6.83	6.16	5.50	4.83	4.16	3.49	2.83	2.16	1.49	0.83	0.10

Model 8: MS-4iPC9.5-420-380/550-7500-A/D (Max Flow: 9.5 m³/h, Max Head: 420m)
Head (m)	1	31	61	91	121	151	181	211	241	271	301	331	361	391	420
Flow (m³/h)	9.50	8.83	8.15	7.48	6.81	6.13	5.46	4.79	4.12	3.44	2.77	2.10	1.42	0.75	0.10

Model 9: MS-4iPC12-213-380/550-4000-A/D (Max Flow: 12.0 m³/h, Max Head: 213m)
Head (m)	1	16	31	46	61	76	91	106	121	136	151	166	181	196	213
Flow (m³/h)	12.00	11.16	10.32	9.47	8.63	7.79	6.95	6.11	5.26	4.42	3.58	2.74	1.90	1.05	0.10

Model 10: MS-4iPC12-265-380/550-5500-A/D (Max Flow: 12.0 m³/h, Max Head: 265m)
Head (m)	1	20	39	58	77	96	115	134	153	172	191	210	229	248	265
Flow (m³/h)	12.00	11.14	10.29	9.43	8.57	7.72	6.86	6.00	5.15	4.29	3.44	2.58	1.72	0.87	0.10

Model 11: MS-4iPC12-315-380/550-7500-A/D (Max Flow: 12.0 m³/h, Max Head: 315m)
Head (m)	1	23	45	67	89	111	133	155	177	199	221	243	265	287	315
Flow (m³/h)	12.00	11.17	10.33	9.50	8.66	7.83	7.00	6.16	5.33	4.50	3.66	2.83	1.99	1.16	0.10

Model 12: MS-4iPC14-150-380/550-3000-A/D (Max Flow: 14.0 m³/h, Max Head: 150m)
Head (m)	1	12	23	34	45	56	67	78	89	100	111	122	133	144	150
Flow (m³/h)	14.00	12.97	11.95	10.92	9.90	8.87	7.84	6.82	5.79	4.76	3.74	2.71	1.69	0.66	0.10

Model 13: MS-4iPC14-190-380/550-4000-A/D (Max Flow: 14.0 m³/h, Max Head: 190m)
Head (m)	1	15	29	43	57	71	85	99	113	127	141	155	169	183	190
Flow (m³/h)	14.00	12.97	11.94	10.91	9.88	8.85	7.82	6.79	5.76	4.73	3.70	2.67	1.64	0.61	0.10

Model 14: MS-4iPC14-240-380/550-5500-A/D (Max Flow: 14.0 m³/h, Max Head: 240m)
Head (m)	1	18	35	52	69	86	103	120	137	154	171	188	205	222	240
Flow (m³/h)	14.00	13.01	12.02	11.03	10.05	9.06	8.07	7.08	6.09	5.10	4.11	3.12	2.14	1.15	0.10

Model 15: MS-4iPC14-270-380/550-7500-A/D (Max Flow: 14.0 m³/h, Max Head: 270m)
Head (m)	1	20	39	58	77	96	115	134	153	172	191	210	229	248	270
Flow (m³/h)	14.00	13.02	12.04	11.05	10.07	9.09	8.11	7.13	6.15	5.16	4.18	3.20	2.22	1.24	0.10

Model 16: MS-4iPC18-112-380/550-3000-A/D (Max Flow: 18.0 m³/h, Max Head: 112m)
Head (m)	1	9	17	25	33	41	49	57	65	73	81	89	97	105	112
Flow (m³/h)	18.00	16.71	15.42	14.13	12.84	11.55	10.26	8.97	7.68	6.39	5.10	3.81	2.52	1.23	0.10

Model 17: MS-4iPC18-140-380/550-4000-A/D (Max Flow: 18.0 m³/h, Max Head: 140m)
Head (m)	1	11	21	31	41	51	61	71	81	91	101	111	121	131	140
Flow (m³/h)	18.00	16.71	15.42	14.14	12.85	11.56	10.27	8.99	7.70	6.41	5.12	3.83	2.55	1.26	0.10

Model 18: MS-4iPC18-175-380/550-5500-A/D (Max Flow: 18.0 m³/h, Max Head: 175m)
Head (m)	1	13	25	37	49	61	73	85	97	109	121	133	145	157	175
Flow (m³/h)	18.00	16.77	15.53	14.30	13.06	11.83	10.59	9.36	8.12	6.89	5.66	4.42	3.19	1.95	0.10

Model 19: MS-4iPC18-220-380/550-7500-A/D (Max Flow: 18.0 m³/h, Max Head: 220m)
Head (m)	1	17	33	49	65	81	97	113	129	145	161	177	193	209	220
Flow (m³/h)	18.00	16.69	15.38	14.08	12.77	11.46	10.15	8.85	7.54	6.23	4.92	3.61	2.31	1.00	0.10

Model 20: MS-4iPC22-78-380/550-3000-A/D (Max Flow: 22.0 m³/h, Max Head: 78m)
Head (m)	1	10	19	28	37	46	55	64	73	78
Flow (m³/h)	22.00	19.44	16.88	14.32	11.76	9.20	6.64	4.08	1.52	0.10

Model 21: MS-4iPC22-98-380/550-4000-A/D (Max Flow: 22.0 m³/h, Max Head: 98m)
Head (m)	1	12	23	34	45	56	67	78	89	98
Flow (m³/h)	22.00	19.52	17.03	14.55	12.07	9.58	7.10	4.62	2.13	0.10

Model 22: MS-4iPC22-135-380/550-5500-A/D (Max Flow: 22.0 m³/h, Max Head: 135m)
Head (m)	1	11	21	31	41	51	61	71	81	91	101	111	121	131	135
Flow (m³/h)	22.00	20.37	18.73	17.10	15.46	13.83	12.19	10.56	8.93	7.29	5.66	4.02	2.39	0.75	0.10

Model 23: MS-4iPC22-170-380/550-7500-A/D (Max Flow: 22.0 m³/h, Max Head: 170m)
Head (m)	1	13	25	37	49	61	73	85	97	109	121	133	145	157	170
Flow (m³/h)	22.00	20.44	18.89	17.33	15.78	14.22	12.67	11.11	9.56	8.00	6.45	4.89	3.34	1.78	0.10

Model 24: MS-4iPC30-70-380/550-4000-A/D (Max Flow: 30.0 m³/h, Max Head: 70m)
Head (m)	1	9	17	25	33	41	49	57	65	70
Flow (m³/h)	30.00	26.53	23.07	19.60	16.13	12.67	9.20	5.73	2.27	0.10

Model 25: MS-4iPC30-80-380/550-5500-A/D (Max Flow: 30.0 m³/h, Max Head: 80m)
Head (m)	1	10	19	28	37	46	55	64	73	80
Flow (m³/h)	30.00	26.59	23.19	19.78	16.37	12.97	9.56	6.16	2.75	0.10

Model 26: MS-4iPC30-90-380/550-7500-A/D (Max Flow: 30.0 m³/h, Max Head: 90m)
Head (m)	1	11	21	31	41	51	61	71	81	90
Flow (m³/h)	30.00	26.64	23.28	19.92	16.56	13.20	9.84	6.48	3.12	0.10

Model 27: MS-4iPC41-52-380/550-3000-A/D (Max Flow: 41.0 m³/h, Max Head: 52m)
Head (m)	1	7	13	19	25	31	37	43	49	52
Flow (m³/h)	41.00	36.19	31.38	26.56	21.75	16.94	12.13	7.32	2.51	0.10

Model 28: MS-4iPC41-60-380/550-4000-A/D (Max Flow: 41.0 m³/h, Max Head: 60m)
Head (m)	1	8	15	22	29	36	43	50	57	60
Flow (m³/h)	41.00	36.15	31.29	26.44	21.59	16.74	11.88	7.03	2.18	0.10

Model 29: MS-4iPC41-82-380/550-5500-A/D (Max Flow: 41.0 m³/h, Max Head: 82m)
Head (m)	1	10	19	28	37	46	55	64	73	82
Flow (m³/h)	41.00	36.46	31.91	27.37	22.82	18.28	13.73	9.19	4.64	0.10

Model 30: MS-4iPC41-102-380/550-7500-A/D (Max Flow: 41.0 m³/h, Max Head: 102m)
Head (m)	1	8	15	22	29	36	43	50	57	64	71	78	85	92	102
Flow (m³/h)	41.00	38.17	35.33	32.50	29.66	26.83	23.99	21.16	18.32	15.49	12.65	9.82	6.98	4.15	0.10

Much Solar Big Power 4iPC 3KW-7.5KW AC DC Plastic Impeller SOLAR PUMP HYDRAULIC PERFORMANCE CURVES

1761209985 Much Solar Big Power 4iPC 3KW 7.5KW AC DC Plastic Impeller SOLAR PUMP HYDRAULIC PERFORMANCE CURVES (1)

1761209988 Much Solar Big Power 4iPC 3KW 7.5KW AC DC Plastic Impeller SOLAR PUMP HYDRAULIC PERFORMANCE CURVES (2)

1761209991 Much Solar Big Power 4iPC 3KW 7.5KW AC DC Plastic Impeller SOLAR PUMP HYDRAULIC PERFORMANCE CURVES (3)

1761209994 Much Solar Big Power 4iPC 3KW 7.5KW AC DC Plastic Impeller SOLAR PUMP HYDRAULIC PERFORMANCE CURVES (4)

Big Power 380V AC/DC 550V Solar Submersible Water Pumps Series – Wholesale Factory Direct from 3000W to 200KW by MUCH SOLAR

Product Description

Key Features

PRODUCT

Contact Info

Product Category

Home Solar System

Solar Battery

Solar Lights

Solar Panel

Solar Inverter

Hot Products

400W Solar Panel

5500W Hybrid Inverter

200W Solar Flood Light

12V 200AH Gel Battery

100A MPPT Controller

Get Free Help – Message Us Today
