Best 8KW 10KW 12KW 15KW 18KW 20KW 25KW 30KW Off Grid Low FrequencySolar Inverter For Home Use

Description

1.Frequency tracking, noise filtering and low distortion in inverter output because of double-conversion design
2.A wide range of input frequency, which realizes stable operation of fuel genera-tors
3.An intelligent battery management technology, which guarantees a longer battery lifespan and decreases the times of battery maintenance
4. An advanced constant-voltage charge technology, which activates the battery to the most extent save the charge time and guarantees a longer battery lifespan
5.A power-on test function, which can avoid the faults because of hazards of theinverter
Overall automatic protection and alarms, such as output overload protection
6.Efficient IGBT (Insulated Gate Bipolar Transistor)Inversion technology
7.Good high-speed switching feature, large-voltage and large-current operating
characteristics and voltage drive of iGBT(the fifth-generation IGBT has a lower sat-uration voltage drop and higher operation effiaency and reliability)

Parameter

1.Power capacity:8KW 10KW 12KW 15KW 18KW 20KW 25KW 30KW (optional)
2.DC input Voltage :96V / 192V / 240V / 360V (optional)
3.Battery Type:Lead-Acid/ GEL/Lithium (optional)
4.Output Voltage (V):110/220VAC (optional)
5.Output Frequency:50/60Hz (Auto)
6.Output waveform:Pure Sine Wave Output
7.Warranty:18 months

Product Details

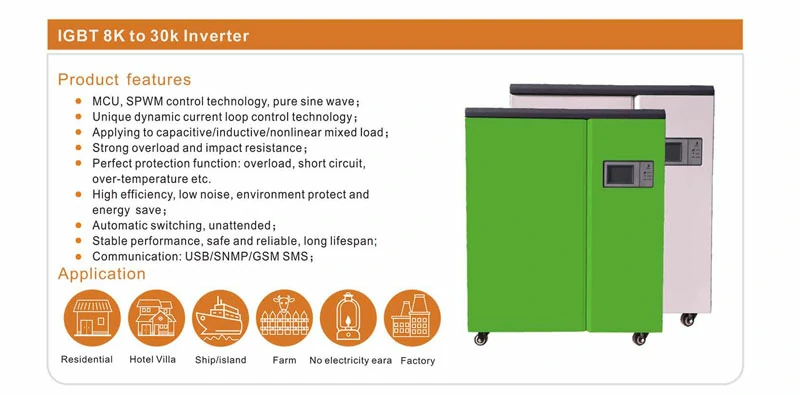

20kw off grid solar inverter 21

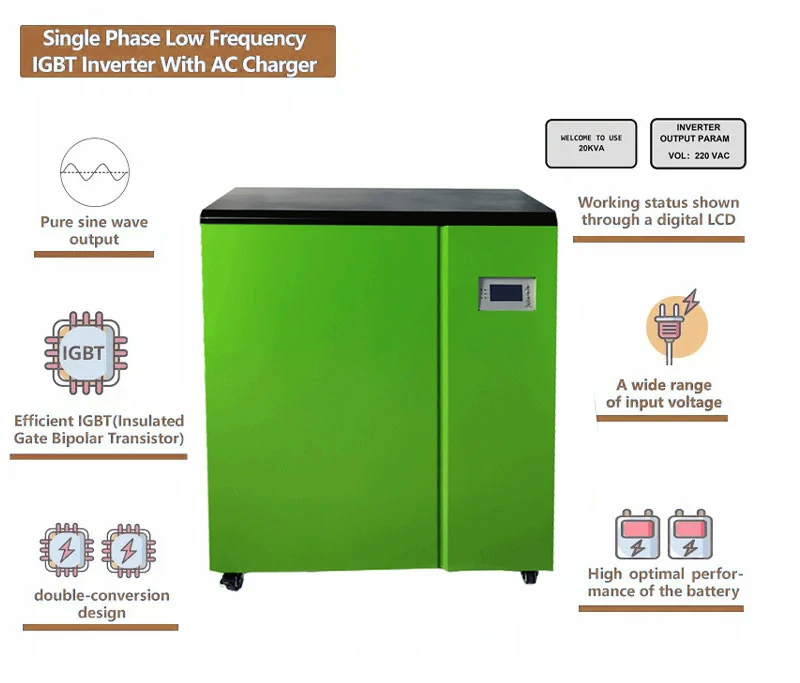

20kw off grid solar inverter 41

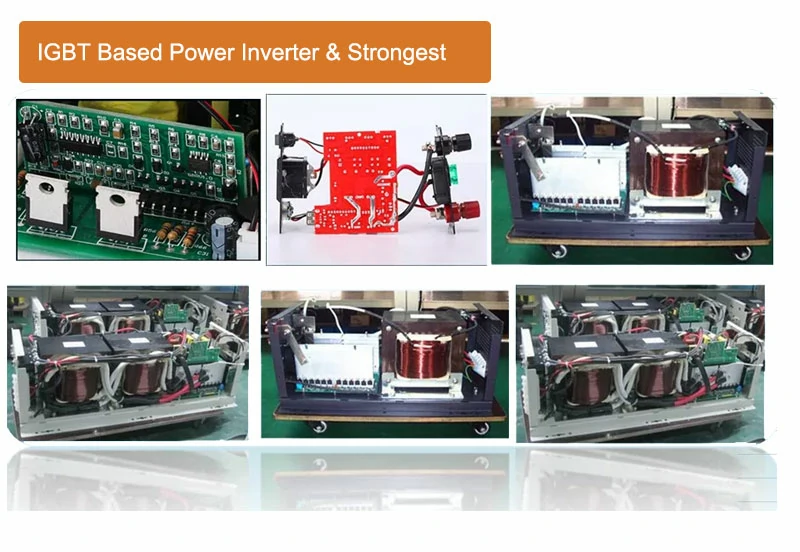

20kw off grid solar inverter 5

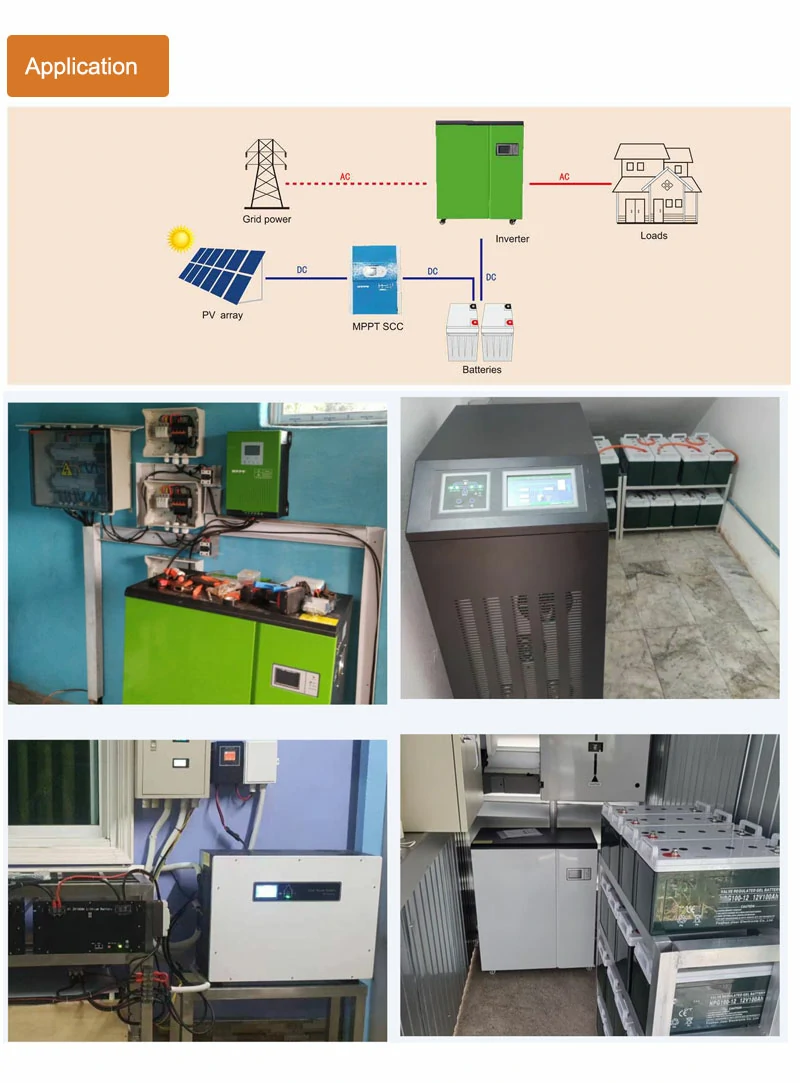

20kw off grid solar inverter 6

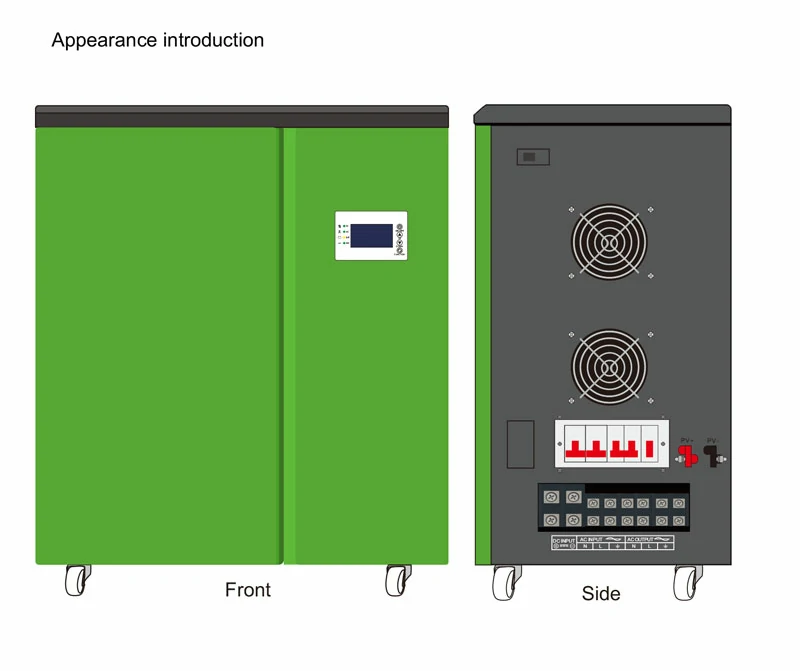

20kw off grid solar inverter 8

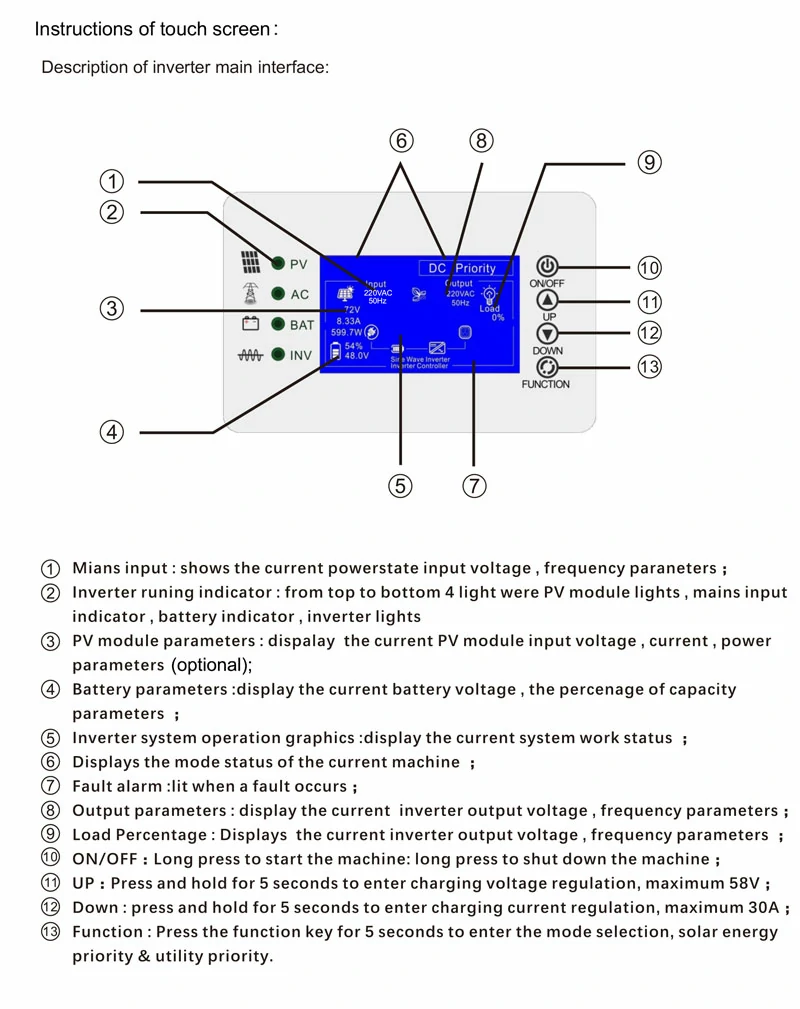

20kw off grid solar inverter 7

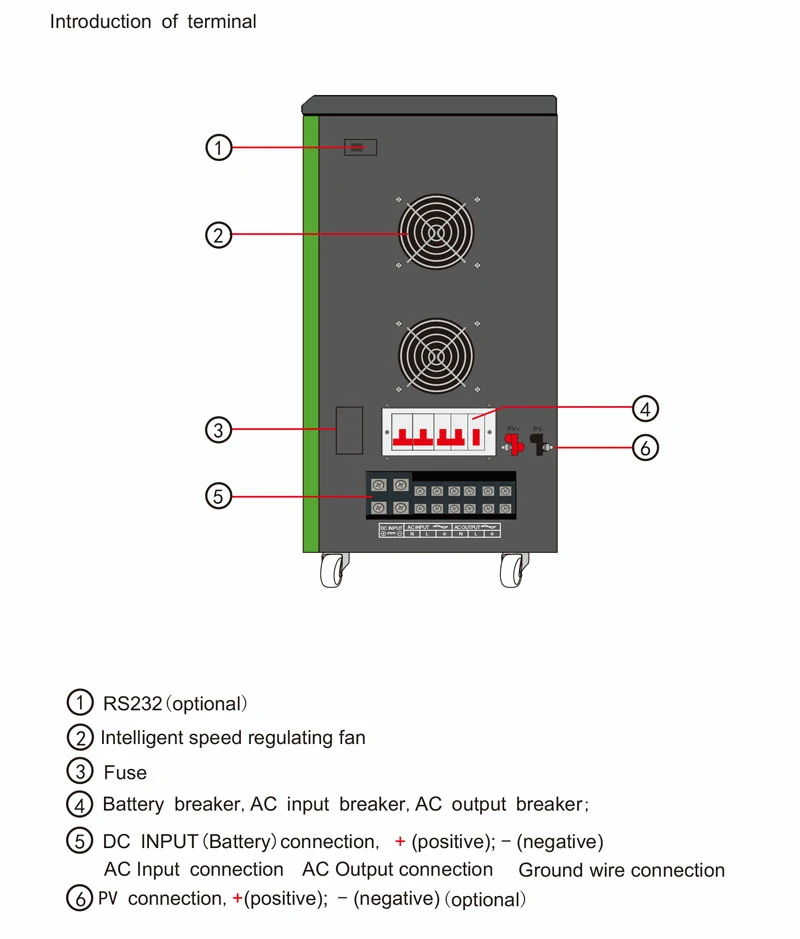

20kw off grid solar inverter 9

20kw off grid solar inverter 10

Specification
Much Solar 8KW to 30KW IGBT Low Frequency Inverter
Rated power8kw10kw12kw15kw18kw20kw25kw30kw
Product nameIGBT based power inverter
ModelMuch 8KWMuch 10KWMuch 12KWMuch 15KWMuch 18KWMuch 20KWMuch 25KWMuch 30KW
Output current36.6A45A54.5A68.2A82A91A113.6A136.3A
Output/input voltage220/230/240VAC
Battery voltage96/192VDC96/192VDC96/192VDC192VDC192VDC192VDC240V/360V240V/360V
Output frequency50/60Hz(Auto change)
Power capacity8KW10KW12KW15KW18KW20kw25kw30kw
Colorgrey/green(customized service)
MaterialSPWM,MCU,DDC,IGBT(FUJI/Mitsubishi)
Size (mm)580*290*675690*360*870
Package (mm)650*420*840820*480*1050
N.W/G.W (KG)69/8677/8884/97108/107103/123111/131121//141133/153
