Best 30 40 50 60 80 100 120 Amp 12V 24V 48V 96V Smart Mppt PV 150V Solar Panel Charge Controller Regulator

Description

Much Solar PV 150V MH  series MPPT controller is an advanced, efficient and versatile photovoltaic product. It uses innovative maximum power point tracking technology to significantly improve the energy efficiency of solar energy systems with a conversion efficiency of 97%.
The controller adopts intelligent battery charging management and has temperature compensation function to effectively manage the battery and extend the battery life.The controller integrates RS485 communication interface, which can provide communication protocol, which is convenient for customers to integrate and manage.

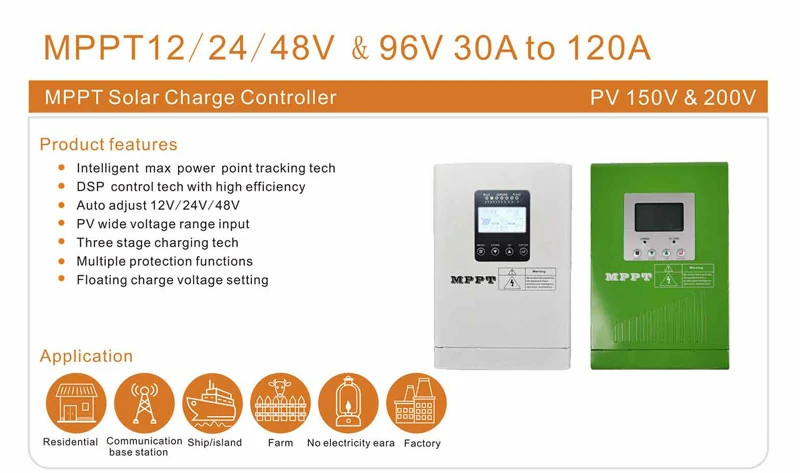

Product Features:
1. Intelligent maximum power tracking technology
2. High precision and high effciency with DSP chip control
3. The widely PV range voltage input , three s tage charging technology
4. The photovoltaic/battery connection reverse protection short-circuit protection /over current protection

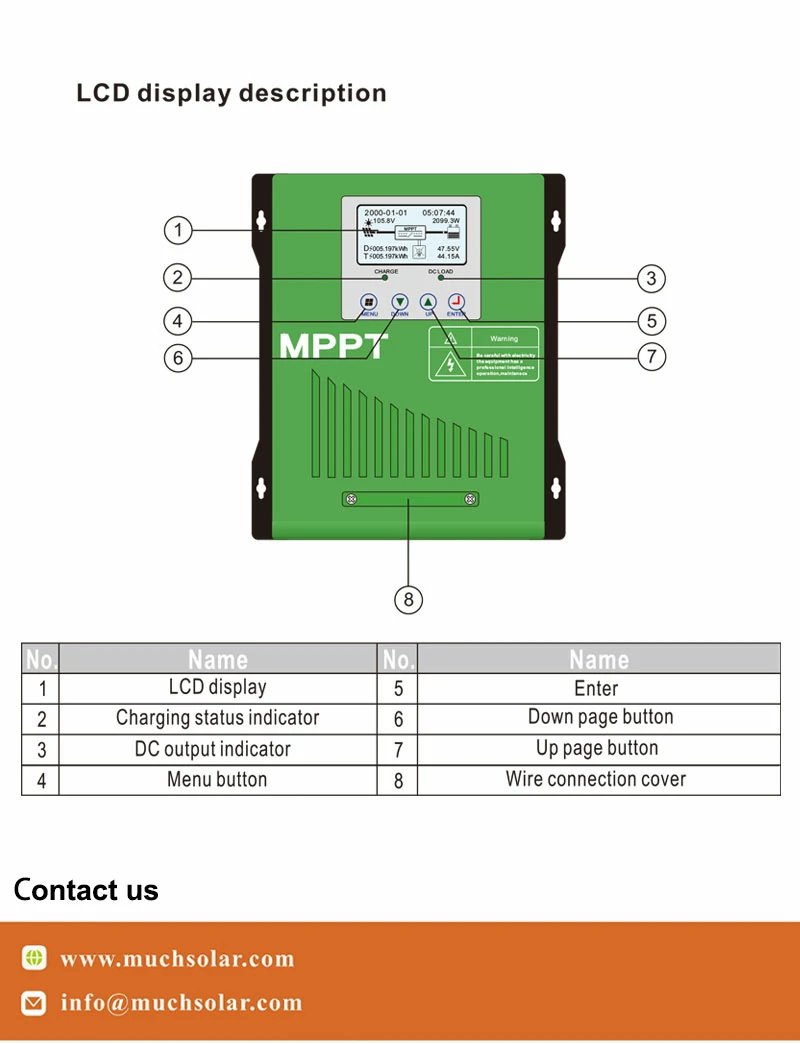

5. Display technology parameter with 7 inch touch screen
6. Rs485 remote communication and data transmission(optional)

Parameter

1. Product name:MPPT Solar Charge Controller
2. Brand Name:Much Solar
3.Model : MPPT 12/24//36/48V Auto & 96V 30A 40A 50A 60A 80A 100A 120A
4. Max Solar Input Voltage :150V
5.Type of protection:Short Circuit Protect
6.Display:LCD+LED
7.Warranty:18 Months

Product Details

best mppt charge controller 6

best mppt charge controller 7

best mppt charge controller 8

best mppt charge controller 9

best mppt charge controller 10

best mppt charge controller 11

Specification
Much Solar MH Seires MPPT Solar Charge Controller
Model: MH Series30A40A50A60A80A100A120A50A60A80A100A120A
Charging ModeMPPT Automatic Maximum Power Point Tracking
Charging MethodThree stages: Constant Current (MPPT), Balanced Charging, Floating Charge
System Type12V/24V/48V Automatic Identification96V
System Identification Voltage Range12V SystemDC 9V – DC 15V96V System
DC72V -120V
24V SystemDC 18V – DC 30V
48V SystemDC 36V – DC 60V
Soft Start Time≤ 10ms
Dynamic Response Recovery Time≤ 500us
Static Power≤ 2W
Machine Efficiency≥ 96.5%/99%
PV Module Utilization≤ 99%
Input Characteristics
MPPT Operating Voltage Range12V SystemDC 18V – DC 100V96V System
DC145V -200V
24V SystemDC 34V – DC 150V
48V SystemDC 65V – DC150V
Maximum Solar Panel Input Power12V System420W570W700W900W1100W1200W1440W96V  System
24V System840W1130W1400W1700W2200W2400W2880W4800W5760W8320W9600W11520W
48V System1650W2270W2800W3400W4400W4800W5760W
Output Characteristics
Optional Battery Type (Default Is Lead-acid Maintenance- free Battery)Lead-acid Maintenance-free Battery, Gel Battery, Liquid Battery, Lithium Battery (Can Also Be Customized For Other Types Of Battery)
Current Limiting Protection12V/24V/48V31A41A51A61A81A101A121A51A61A81A101A121A
Temperature Coefficient± 0.02%/℃
Temperature Compensation14.2V-(Maximum Temperature -25℃)*0.3
Output Regulation Accuracy≤ ±1.5%

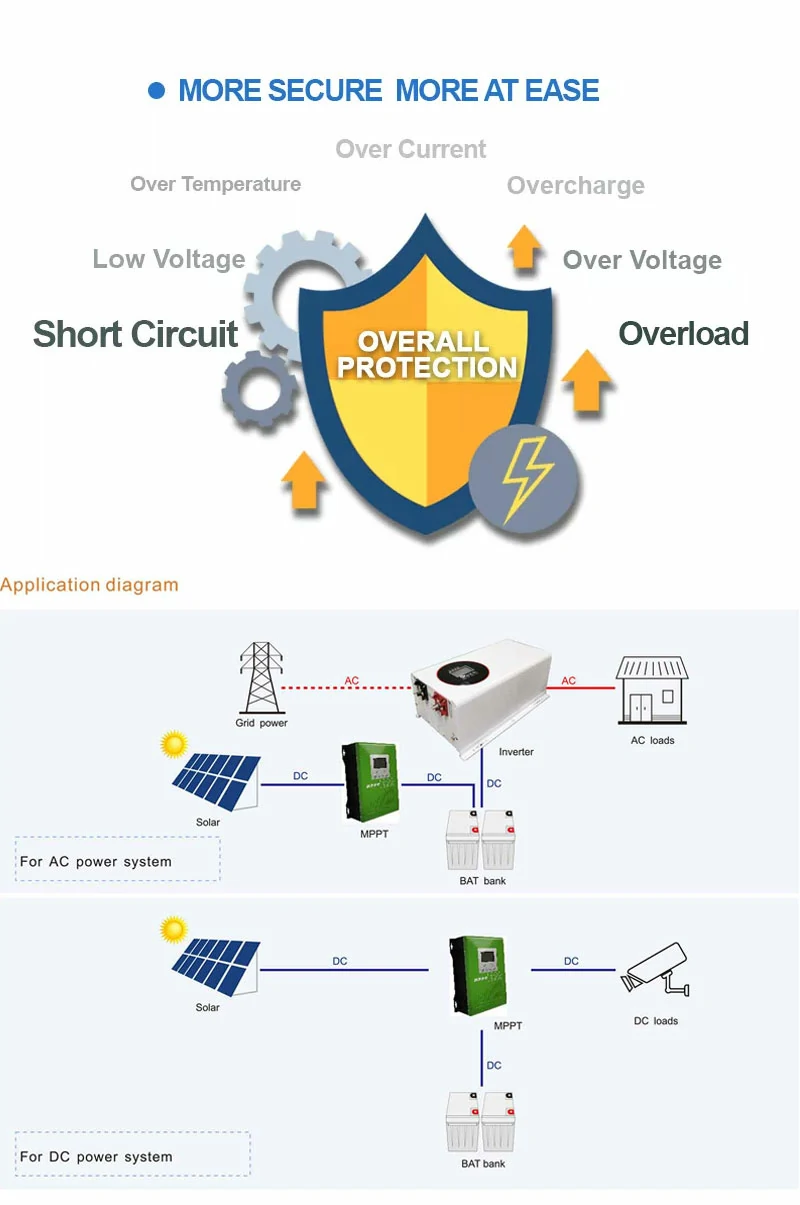

Protection
Input Low Voltage ProtectionReference Input Characteristics
Input High Voltage ProtectionReference Input Characteristics
Short Circuit ProtectionAfter 5 Trial Starts Will Enter The Protection State, Restart Recovery
Temperature Protection90℃
Temperature Rise ProtectionReduce Power Output When Exceed 85℃
Other Parameters
Noise≤ 50dB
Heat Dissipation MethodForced Air Cooling, Fan Speed Is Adjusted By Temperature
Mechanical Protection TypeIP21
Humidity0 – 90%RH (No Condensation)

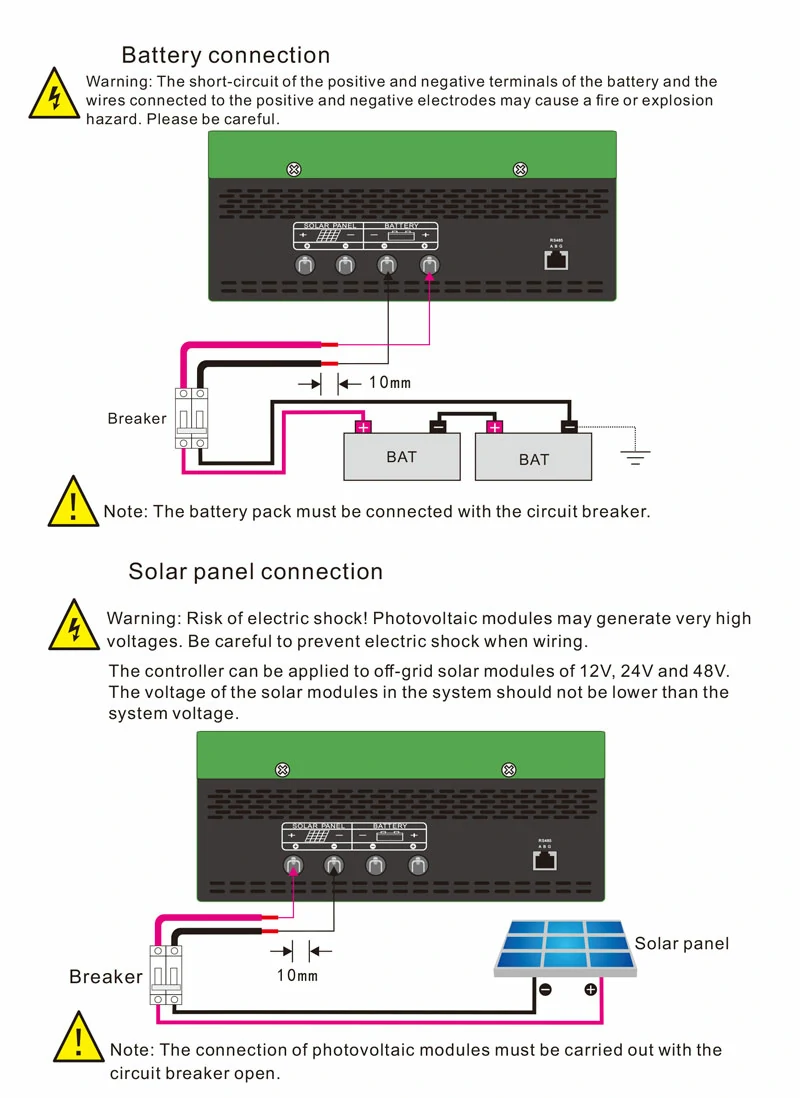

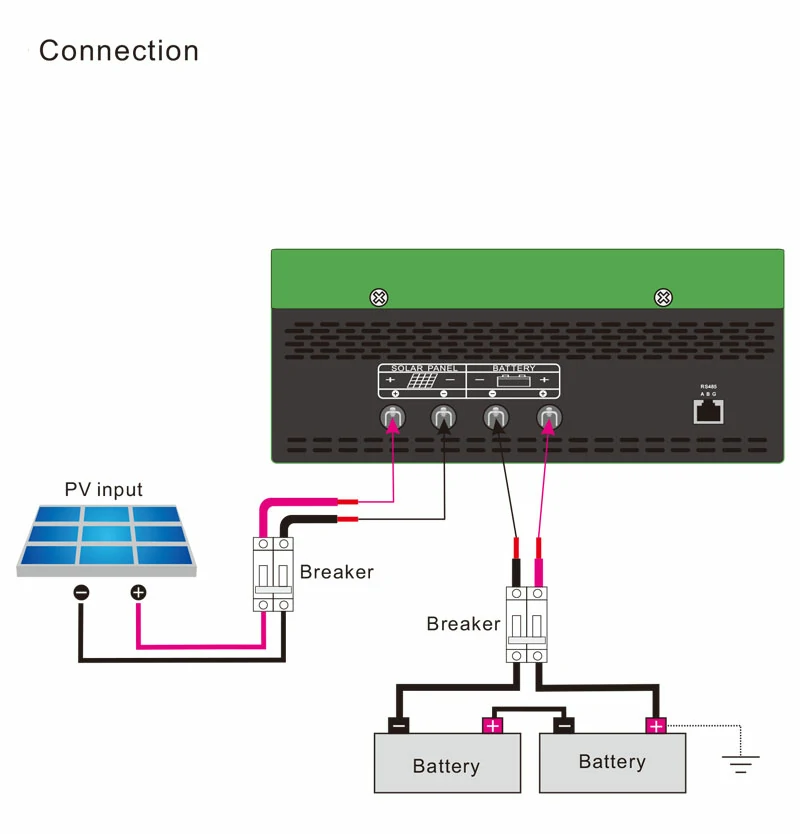

PV Module Configutation
System Battery VoltagePV Module Load Voltage (Recommended Value)
12V System18V-60V (30V Module*1 String, 36V Module*1 String)96V System
145V-200V (30V Module*4 String, 36V Module*4 String)
24V System36V-72V (30V Module*2 String, 36V Module*2 String)
48V System72V-144V (30V Module*3 String, 36V Module*3 String)
Product Sizes(mm)225*290*95270*365*120225*290*95270*365*120
N.W/G.W2.6/33/3.56.8/8.53/3.56.8/8.5
Package sizes345*255*160315*420*170345*255*160315*420*170
