Best 1KW 1.5KW 2KW 3KW 4KW 5KW 6KW Off Grid Low Frequency Pure Sine Wave Inverter for Home Solar Systems 12V 24V 48V 96V

Description

1. Double CPU intelligent control technology, excellent performance
2. The grid mode /battery mode could be set, application flexible
3. Charge current/battery type could be set, convenient and practical
4. Intelligent fan control, safe and reliable
5. Low frequency toroidal transformer increase efficiency;Pure sine wave AC output, and be adapt to all kinds of loads;
6. LCD display equipment parameter in real-time, operation status be clear at a glance
7. Output overload, short circuit protection, various of automatic protection and alarm warning;
8. Three types working modes adjustable:AC first, DC first, energy-saving mode
9 .AC charge current 0-30A adjustable; battery capacity configuration more flexible
10. Supports diesel or gasoline generator, adapt any tough electricity situation

Parameter

1. Input Voltage:12v/24/48/96V ( optional)
2.Output Voltage:110VAC / 120VAC / 220VAC / 230VAC/ 240VAC(±2%) ( optional)
3.Protection:Over-voltage/low voltage/overload/short circuit etc.
4.Output Waveform:Pure sine wave solar inverter
4.Warranty:18 months

Product Details

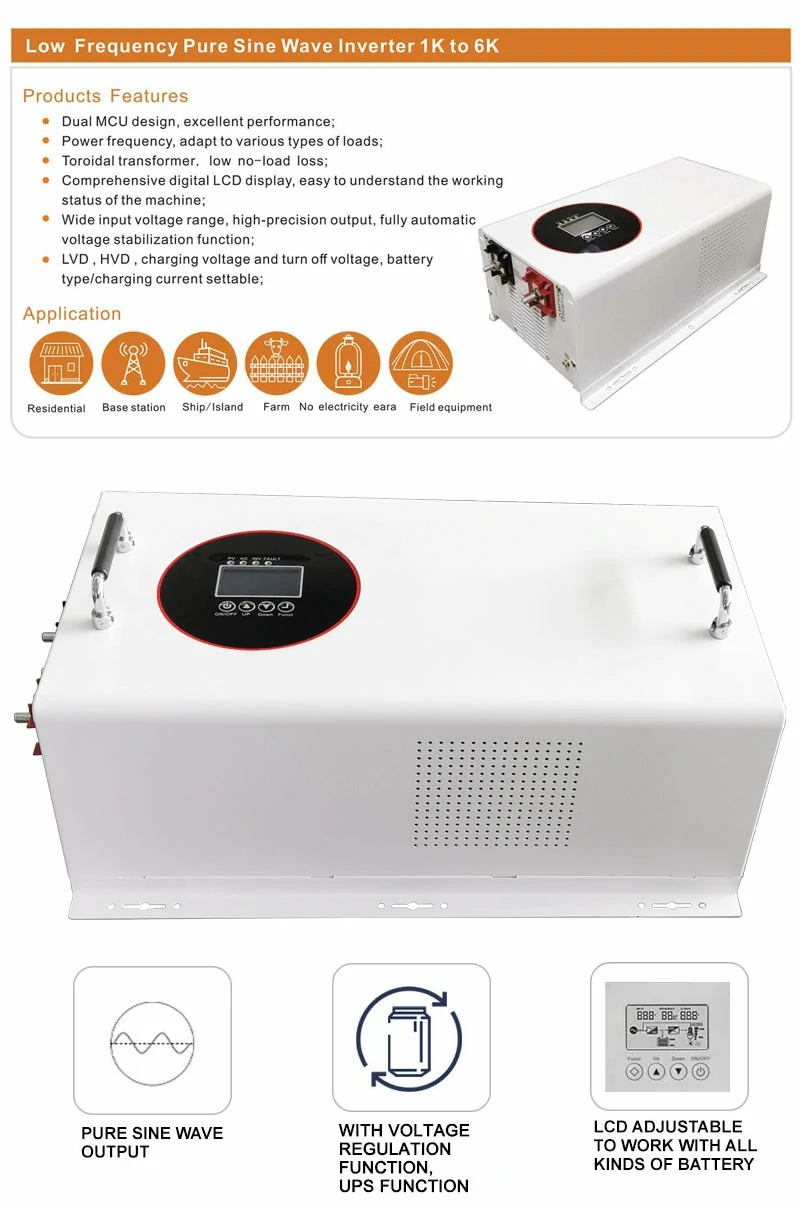

6000W low frequency pure sine wave inverter 7

6000W low frequency pure sine wave inverter 8

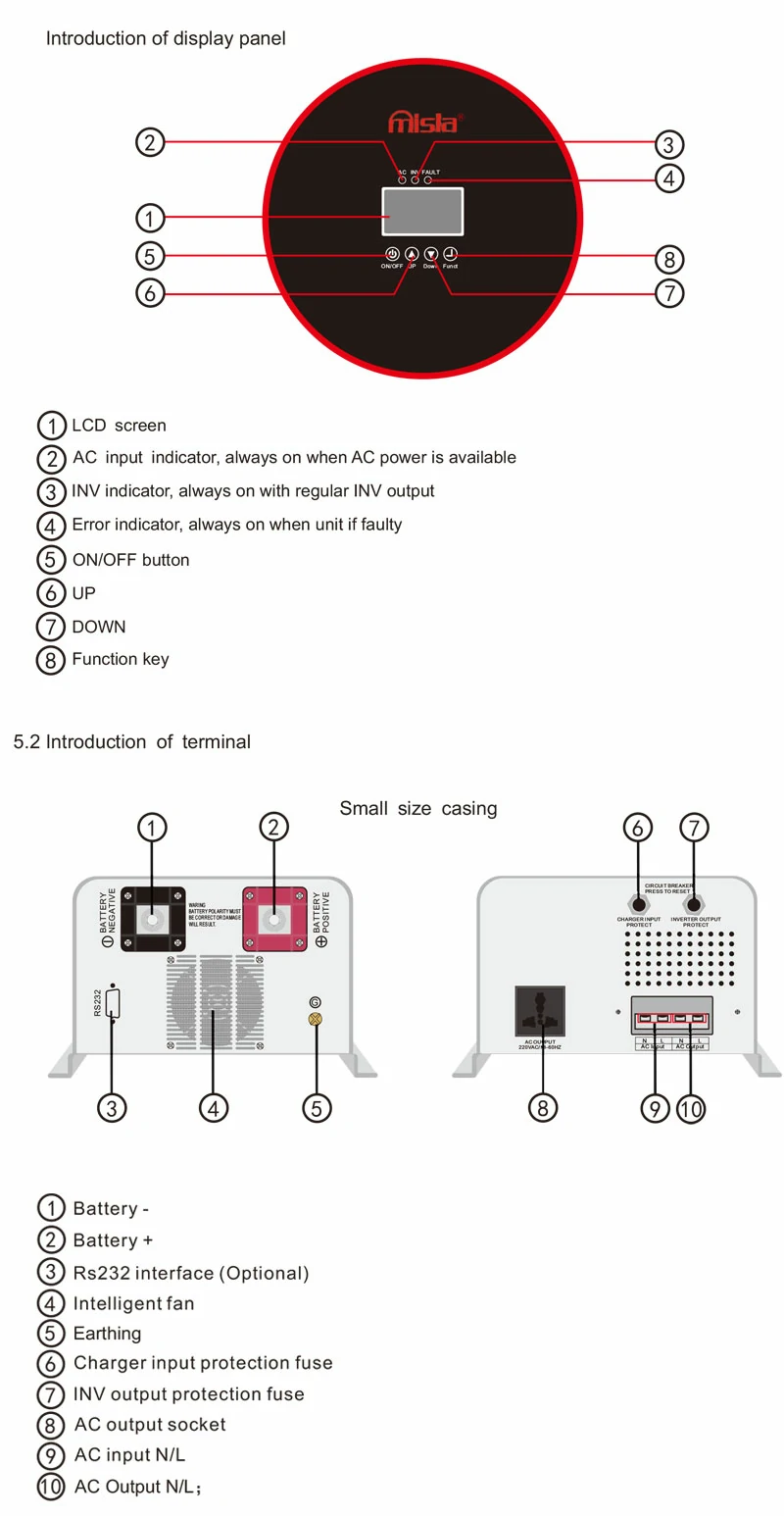

6000W low frequency pure sine wave inverter 9

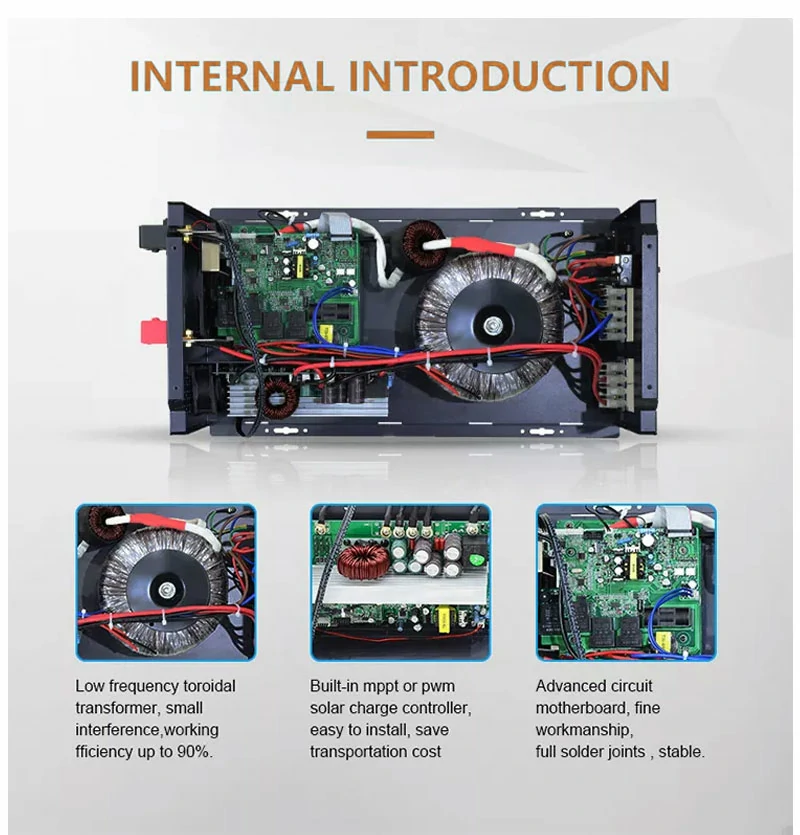

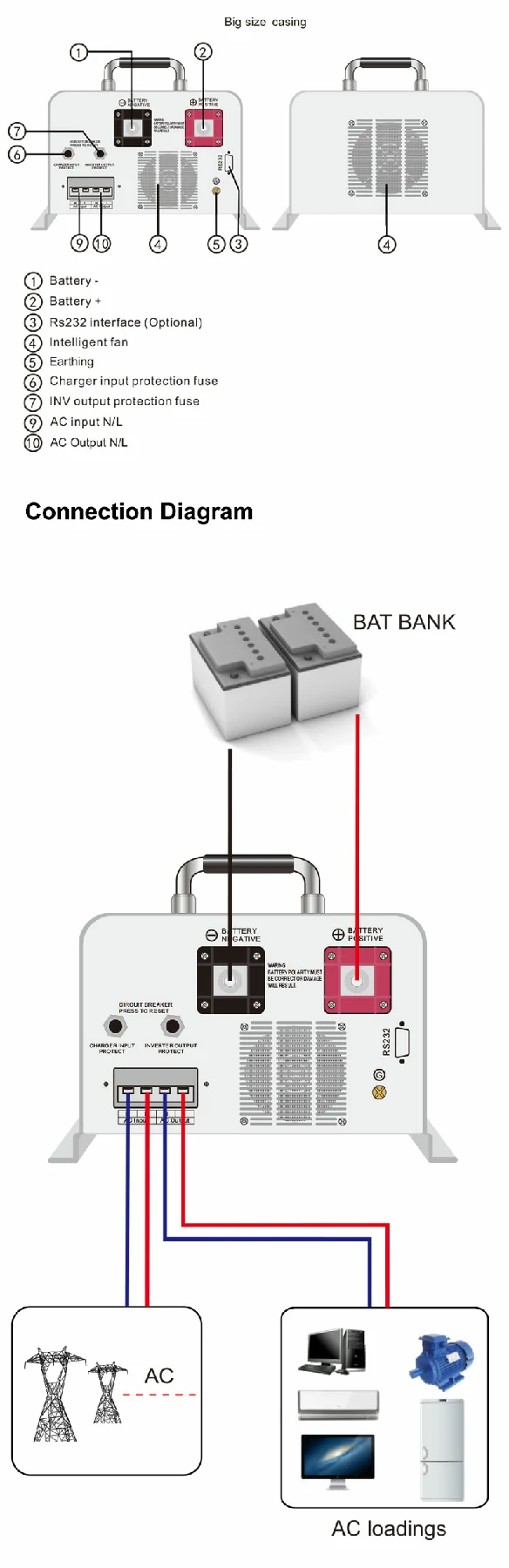

6000W low frequency pure sine wave inverter 10

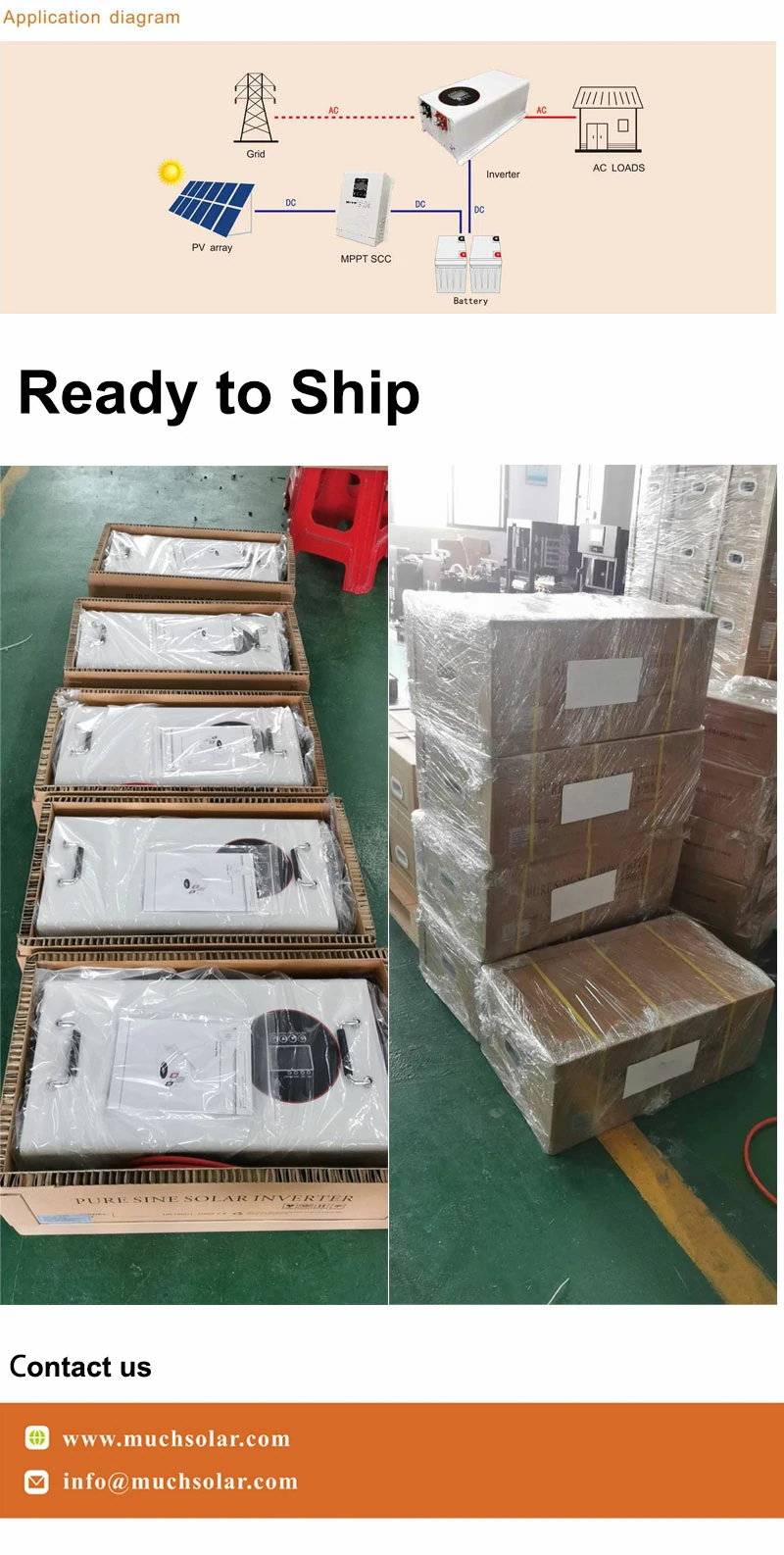

6000W low frequency pure sine wave inverter 11

Specification
Low Frequency Inverter Technical Specification
ModelMuch 1KMuch 1.5KMuch 2KMuch 3KMuch 4KMuch 5KMuch 6K
Rated Power1000W1500W2000W3000W4000W5000W6000W
Market comparison (VA)1500VA2000VA3000VA5000VA7000VA8000VA10000VA
Start Motor1HP1.5HP2HP3HP3HP4HP4HP
Battery Voltage12/24/48VDC24/48VDC48V/96VDC
Size(L*W*Hmm) 535*262*185575*337*215
Packing Size(L*W*Hmm)575*312*235615*387*265
N.W.(kg)10.512.51517.5202425
G.W.(kg)(Carton Packing)131517.520232728
Installation MethodWall-Mounted
Parameter
InputDC Input Voltage Range10.5-15VDC(Single battery voltage)
AC Input Voltage Range85VAC~138VAC(110VAC)/ 95VAC~148VAC(120VAC / 170VAC~275VAC(220VAC / 180VAC~285VAC(230VAC)
/ 190VAC~295VAC(240VAC)
AC Input Frequency Range45Hz~55Hz(50Hz) / 55Hz~65Hz(60Hz)
Max AC charging current0~30A(Depending on the model)
AC charging methodThree-stage (constant current, constant voltage, floating charge)
OutputEfficiency(Battery Mode)≥85%
Output Voltage(Battery Mode)110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2% / 240VAC±2%
Output Frequency(Battery Mode)50/60Hz±1%
Output Wave(Battery Mode)Pure Sine Wave
Efficiency(AC Mode)>99%
Output Voltage(AC Mode)110VAC±10% / 120VAC±10% / 220VAC±10% / 230VAC±10% / 240VAC±10%
Output Frequency(AC Mode)Follow input
Output waveform distortion≤3%(Linear load)
(Battery Mode)
No load loss(Battery Mode)≤0.8% rated power
No load loss(AC Mode) ≤2% rated power( charger does not work in AC mode)
No load loss(Energy saving Mode)≤10W
Battery TypeVRLA BatteryCharge Voltage :14V; Float Voltage:13.8V( 12V system; 24V system x2 ; 48V system x4;96V system x8)
Customize batteryCharging and discharging parameters of different types of batteries can be customized according to user requirements
 (charging and discharging parameters of different types of batteries can be set through the operation panel)
ProtectionBattery undervoltage alarmFactory default: 11V(12V system; 24V system x2; 48V system x4)
Battery undervoltage protectionFactory default: 10.5V(12V system; 24V system x2; 48V system x4)
Battery overvoltage alarmFactory default: 15V(12V system; 24V system x2; 48V system x4)
Battery overvoltage protectionFactory default:  17V(12V system; 24V system x2; 48V system x4)
Battery overvoltage recovery voltageFactory default:  14.5V(12V system; 24V system x2; 48V system x4)
Overload power protectionAutomatic protection (battery mode), circuit breaker or insurance (AC mode)
Inverter output short circuit protectionAutomatic protection (battery mode), circuit breaker or insurance (AC mode)
Temperature protection>90°C(Shut down output)
AlarmANormal working condition, buzzer has no alarm sound
BBuzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection
CWhen the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal
Working ModeBattery First/AC First/Saving Energy Mode
Transfer Time≤4ms
DisplayLCD(External LCD Display(Optional))
Thermal methodCooling fan in intelligent control
Communication(Optional)RS485/APP(WIFI monitoring or GPRS monitoring)
