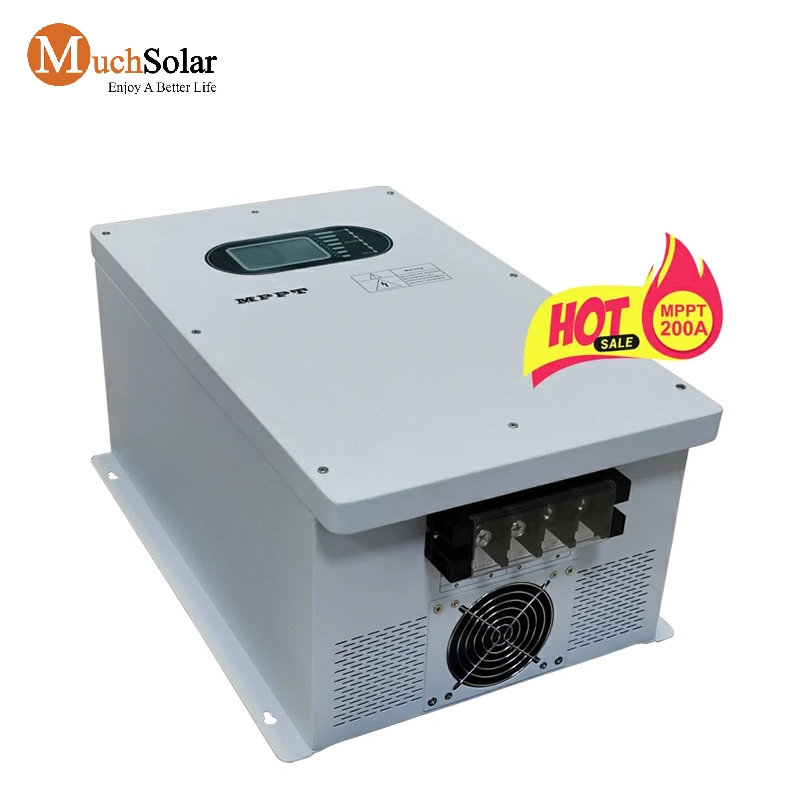

Best 150 180 200 Amp DC 48V 96V Mppt Smart PV 250V 300V Solar Panel Charge Controller

Product Description

Much Solar MH PV 250V 350V series MPPT DC 48V 96V controller is an advanced, efficient and versatile photovoltaic product. It uses innovative maximum power point tracking technology to significantly improve the energy efficiency of solar energy systems with a conversion efficiency of 97%.
The controller adopts intelligent battery charging management and has temperature compensation function to effectively manage the battery and extend the battery life.
The controller integrates RS485 communication interface, which can provide communication protocol, which is convenient for customers to integrate and manage.

Product Features:
1. Intelligent maximum power tracking technology
2. High precision and high effciency with DSP chip control
3. The widely PV range voltage input , three s tage charging technology
4. The photovoltaic/battery connection reverse protection short-circuit protection /over current protection
5. Rs485 remote communication and data transmission(optional)

Key Features

1. Product name:MPPT Solar Charge Controller
2. Brand Name:Much Solar
3.Model : MPPT 48V 96V 150A 180A 200A
4. Max Solar Input Voltage :250V / 300V
5.Type of protection:Short Circuit Protect
6.Display:LCD+LED
7.Warranty:18 Months

Free Quote
Product Details

200 amp mppt charge controller 5

200 amp mppt charge controller 6

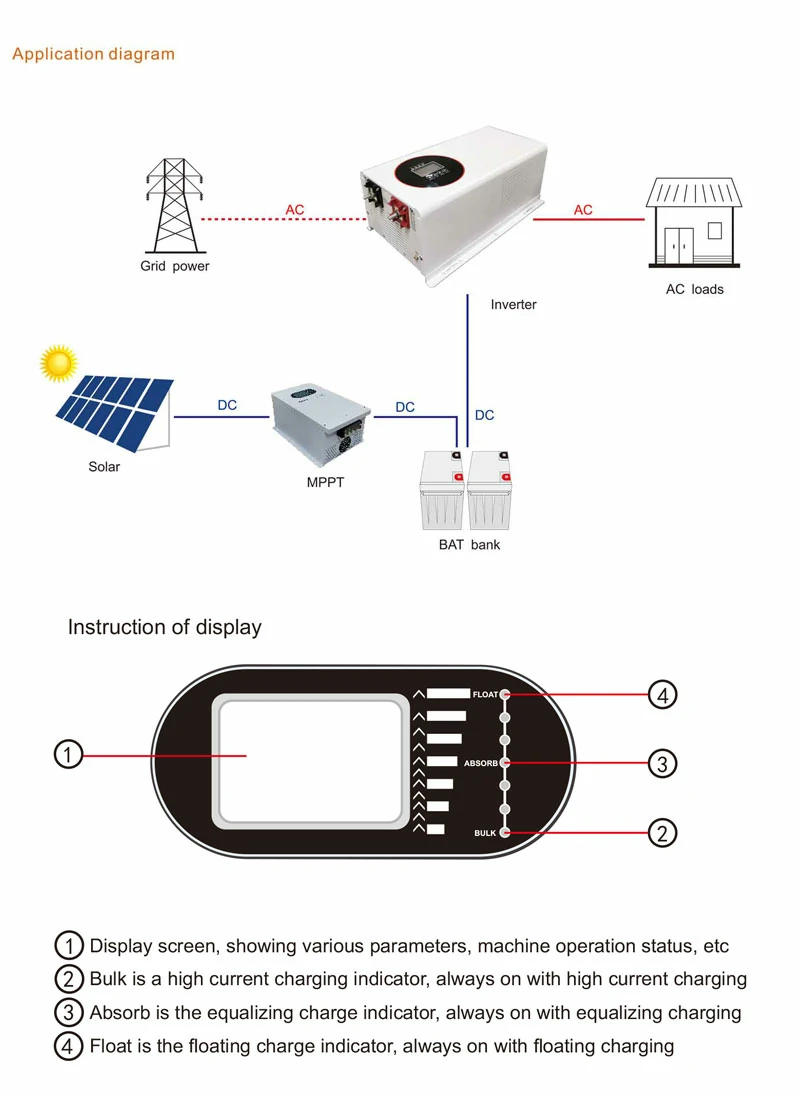

200 amp mppt charge controller 7

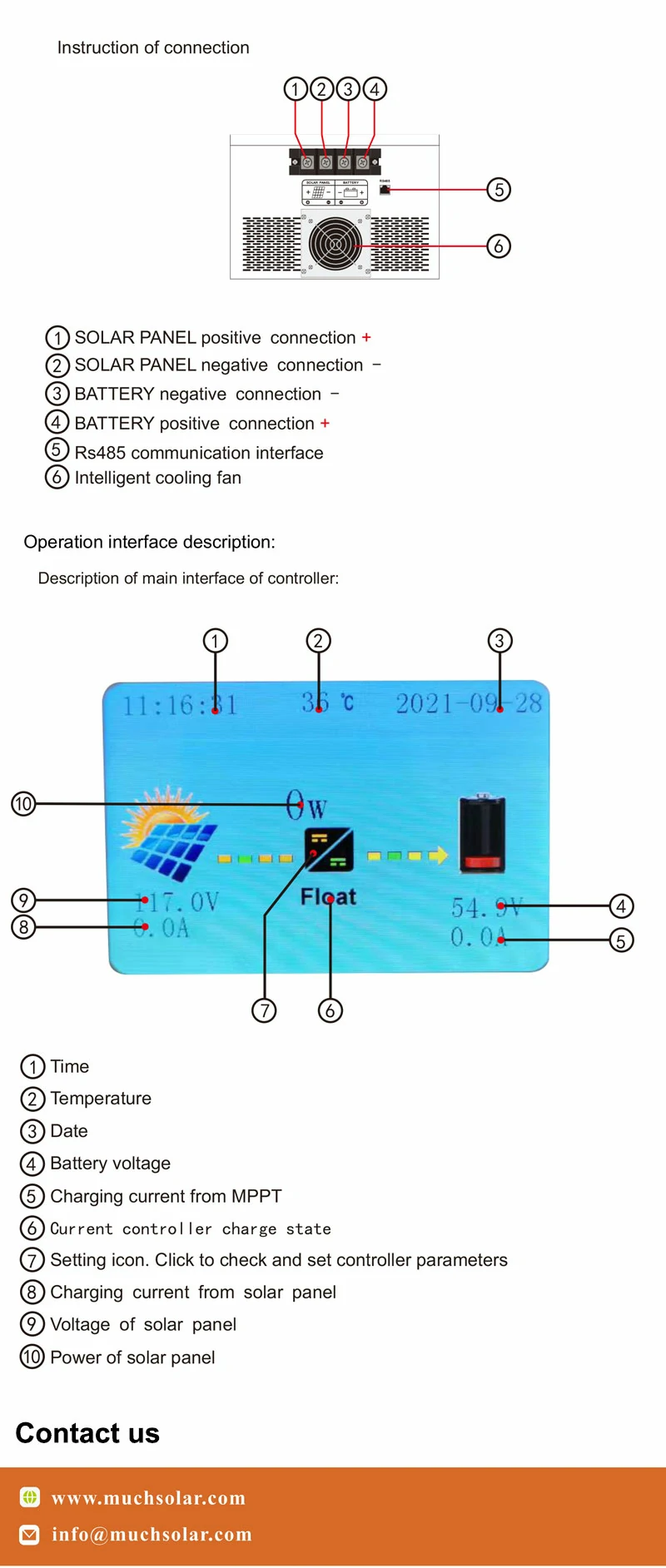

200 amp mppt charge controller 8

Specification
Much Solar mppt solar charge controller 48V 96V 150A 180A 200A Technical Parameters
Model150A-48/PV250V180A-48/PV250V200A-48/PV250V150A-96/PV300V180A-96/PV300V200A-96/PV300V
Rated current150A180A200A150A180A200A
Max current151A181A201A151A181A201A
System voltage48V96V
Size:(L*W*Hmm)515*346*225515*346*225
package size (121WIHmm)650*400*280650*400*280
N.W. (KG)17.0 17.5
G.W.(KG)19.5 20.0
Charge modeMPPT Automatic maximum power point tracking
Charge methodThree stage:Boost, Equalize,Float
Start up time<10s
Dynamic response time to recover<500us
Quiescent dissipation<2W
Efficiency96.5%
Identify range of battery voltage48V : DC36V-60V96V : DC72V-120V
MPPT working Range48V: DC65V-250V96V: DC130V-300V
Max PV input7200W8640W9600W14400W17280W19200W
Display LCD+LED
Input polarity reverse
connection protection		Yes
Output polarity reverse
connection protection 		Yes
Low voltage protection Yes
High voltage protection Yes
Short circuit protection Yes
Over temperature protection +85°
Cooling methodair cooling, fan speed is regulated by temperature, when internal
temperature is low; when the controller stops working, the fan stops working
Noicy <50dB
humidity <95% (without condesing)
Height 0~3000M
Temperature -20°C+40°C
Storage temperature -40°C-+70°C
*The above data is for reference. If there is any change, please refer to the real object.
