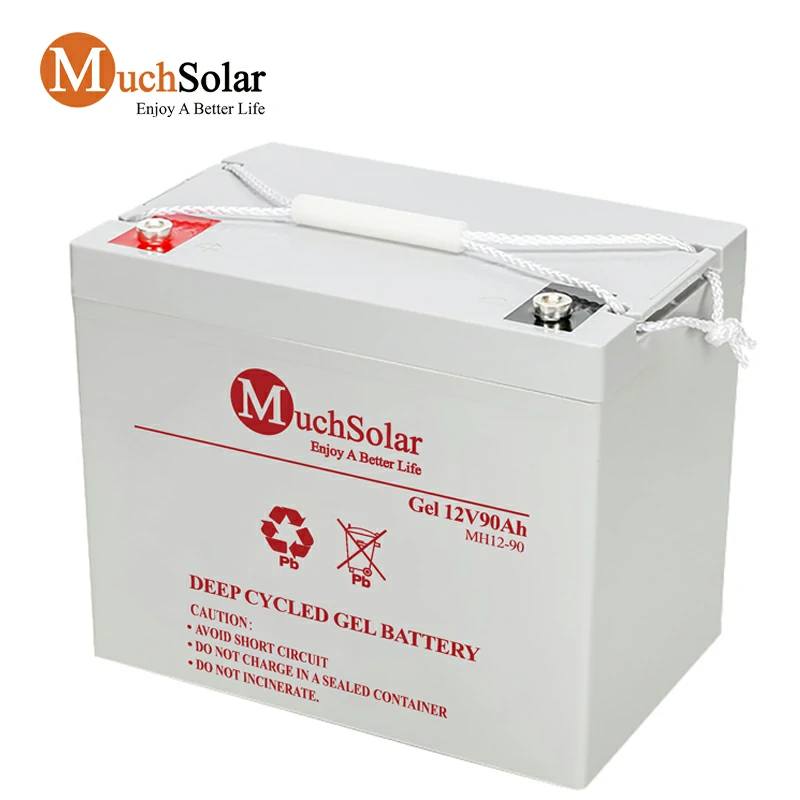

12V 90AH Gel Battery
12V 80AH Gel Battery
12V 65AH Gel Battery
12V 70AH Gel Battery
12V 90AH Gel Battery
12V 80AH Gel Battery
12V 65AH Gel Battery
12V 70AH Gel Battery

Best 12V 90ah 80ah 70ah 65ah Deep Cycle Lead Acid AGM Gel Storage Solar Battery For Inverter

Description

Key Features :
♦Gelled electrolyte made by mixing sulfuric acid with silica fume.
♦The electrolyte is gel like ,immobile and does not leak ,enabling
uniform reaction of each part of the plate .
♦High rate discharge performance due to tight assembly technology
♦Strong heat dissipation and wide operating temperature range
♦Avoid acid mist being separated out , environment friendliness
♦Efficient venting system release excessive gas automatically

Applications :
♦EPS and UPS battery backup
♦Solar and wind energy storage system
♦Telecommunication Equipment
♦Power plant and transmission system
♦Signal system , emergency lighting system , security system

Parameter

Model:MH 12V 90AH / MH 12V 80AH / MH 12V 70AH / MH 12V 65AH
Capacity:90Ah / 80AH / 70AH / 65AH
Container Material:ABS
Weight:23KG / 19KG /17.5KG /17KG
Warranty (months):36 Months
Customized Packing & Brand Name:Yes
OEM & ODM Service:Yes

Much Solar 12V 90AH 80AH 70AH 65AH Agm Battery Specification
ModelMH12-90MH12-80MH12-70MH12-65
Nominal Voltage12V12V12V12V
Nominal Capacity (10 hour rate)  90Ah80Ah70Ah65Ah
Battery(L×W×H)mm30*172*220350*166*175350*166*175350*166*175
Weight23KG19KG17.5KG17KG
Capacity 25℃(77°F)10 hour rate 90Ah80Ah70Ah65Ah
3 hour rate 67.5Ah60Ah55.8Ah48.6Ah
1 hour rate 49.5Ah46.5Ah45.5Ah35.8Ah
Internal ResistanceFull Charged Battery 25℃(77°F)≤5mΩ≤5mΩ≤5mΩ≤5mΩ
Cyclic Life50%(C10) Depth of discharge700Times700Times700Times700Times
Float Life25℃(77°F) Float charge at 13.8VAbout 5 YearsAbout 5 YearsAbout 5 YearsAbout 5 Years
Capacity
affected by Temperature  (10 hour )
40℃ (104°F)102.00%102.00%102.00%102.00%
25℃ (77°F)100.00%100.00%100.00%100.00%
0℃ (32°F)85.00%85.00%85.00%85.00%
-15℃ (5°F)65.00%65.00%65.00%65.00%
Self-Discharge
25℃(77°F)
Capacity after 3 month storage90.00%90.00%90.00%90.00%
Capacity after 6 month storage80.00%80.00%80.00%80.00%
Capacity after 12 month storage62.00%62.00%62.00%62.00%
Charge
(Constant Voltage)
 25℃(77°F)
CycleInitial Charging Current
Less than 27A
Initial Charging Current
Less than 24A
Initial Charging Current
Less than 21A
Initial Charging Current
Less than 19.5A
Voltage 14.6-15.0VVoltage 14.6-15.0VVoltage 14.6-15.0VVoltage 14.6-15.0V
FloatVoltage 13.5-13.8VVoltage 13.5-13.8VVoltage 13.5-13.8VVoltage 13.5-13.8V
