Solar Submersible Water Pumps PV 430V

Features

4iSC A/D

4iLR A/D

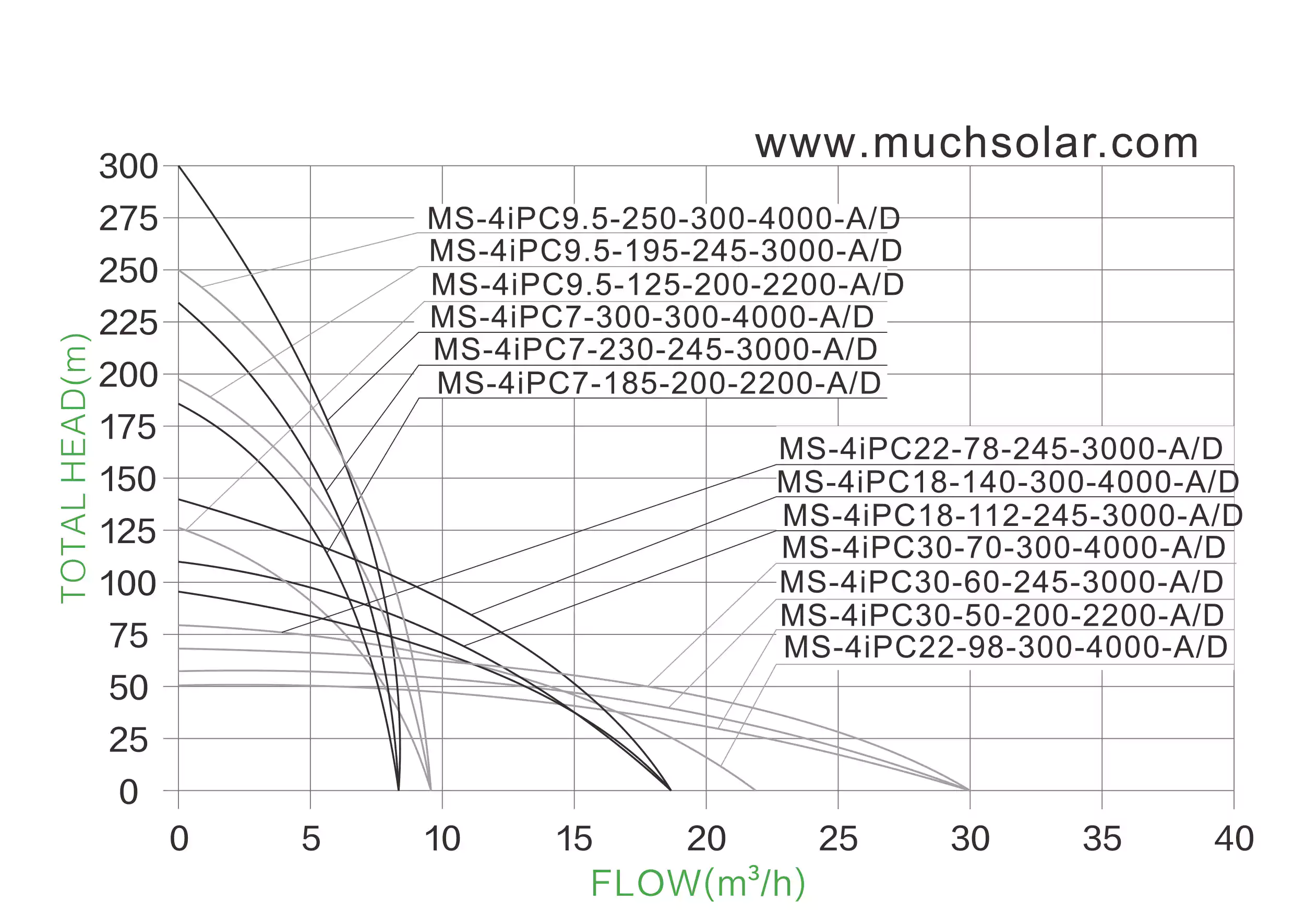

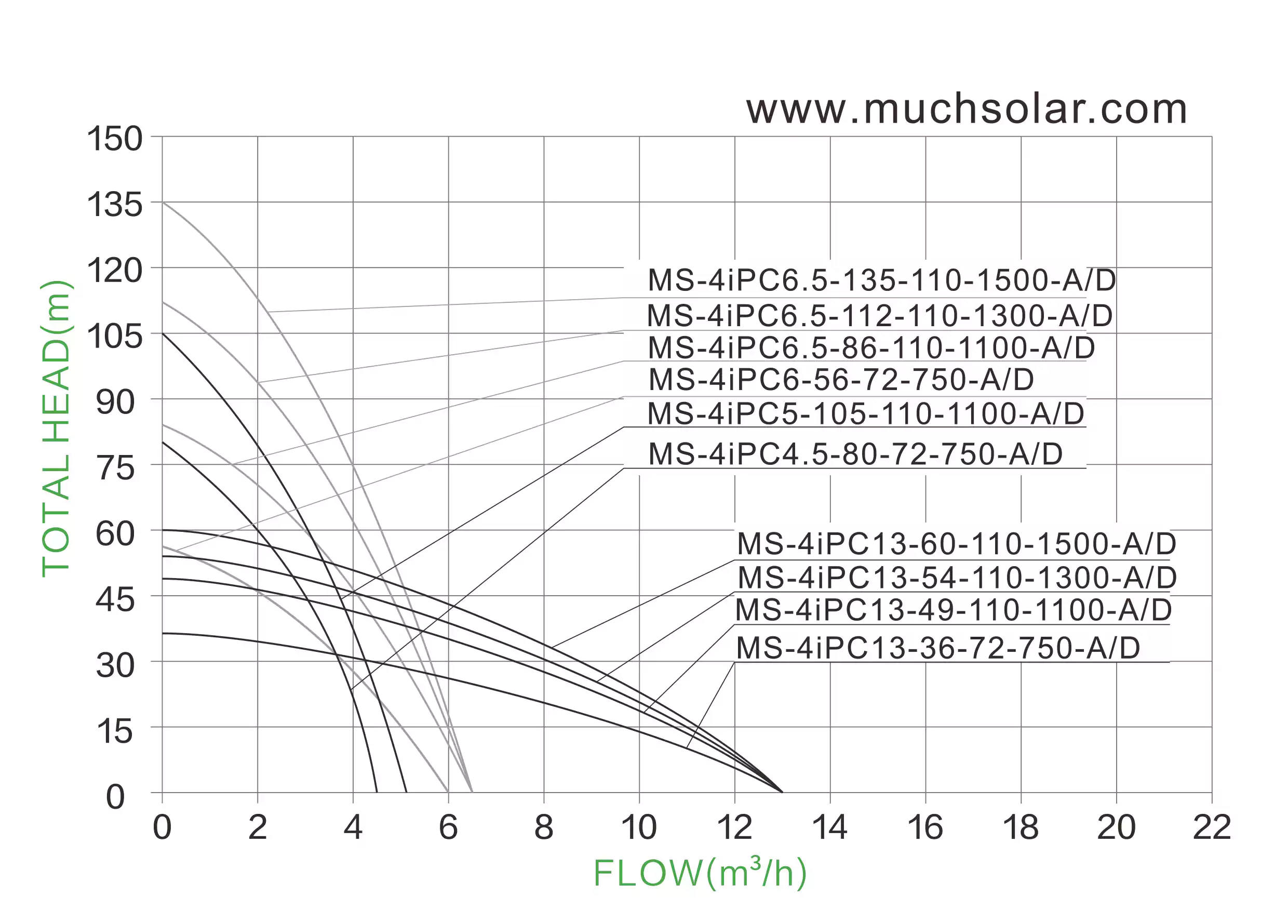

4iPC A/D

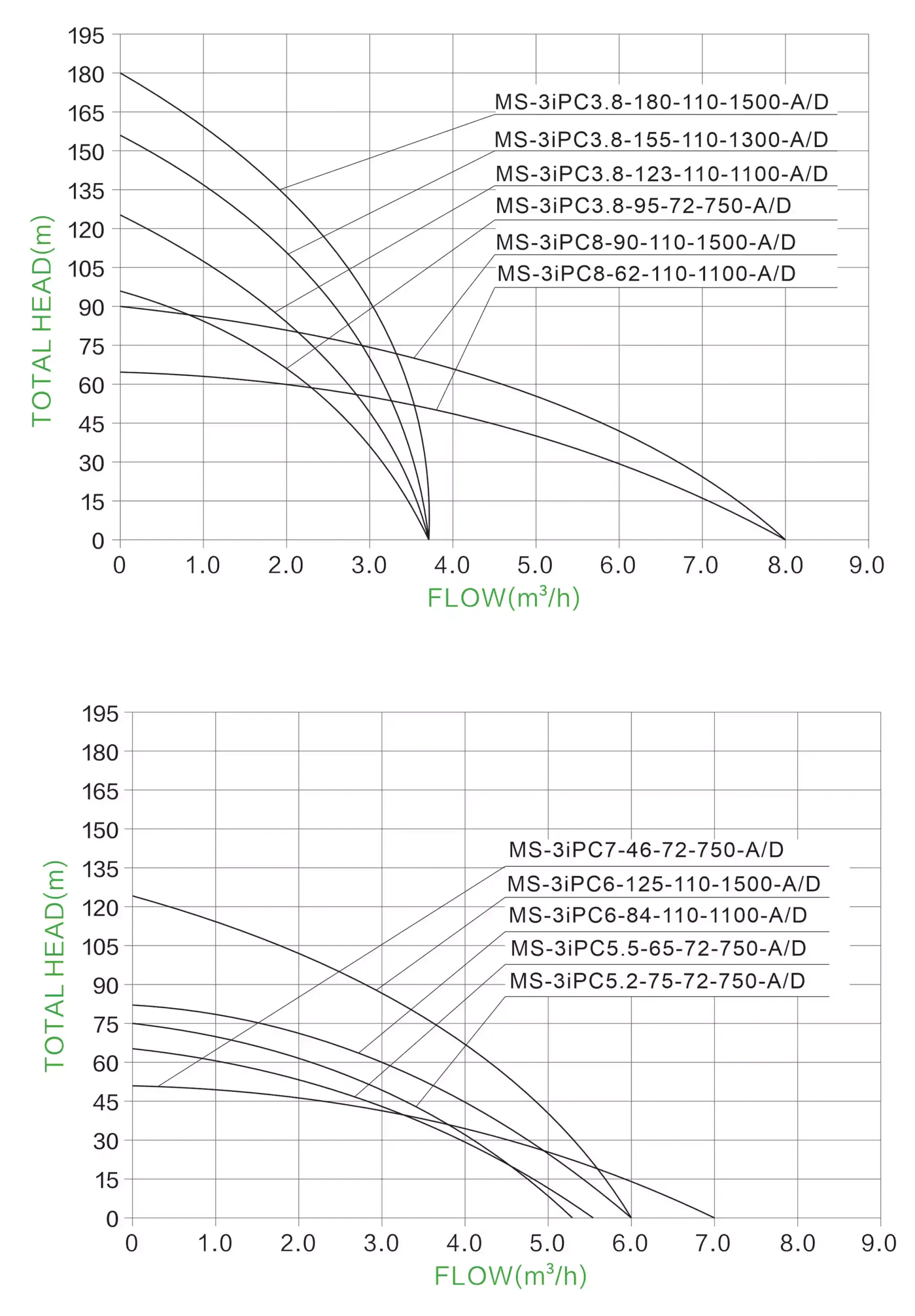

3iPC A/D

Features

4iSC A/D

Much Solar 4″– 4iSC AC DC Solar submersible water pumps

#	Model	Pump Voltage (DC)	(AC) Voltage	(DC) Voltage	Power	Max. Flow	Max Head	Outlet	Cable	Open circuit voltage (VOC)	Solar Panel Power
1	MS-4iSC3.5-105-72-750-A/D	72V	85V-280V	80V-430V	750W	3.5m³/h	105m	1.25″	2m	<430V	≥1.3*PUMP POWER
2	MS-4iSC3.5-140-110-1100-A/D	110V	85V-280V	80V-430V	750W	3.5m³/h	140m	1.25″	2m	<430V	≥1.3*PUMP POWER
3	MS-4iSC4.8-203-110-1500-A/D	110V	85V-280V	80V-430V	1500W	4.8m³/h	203m	1.25″	2m	<430V	≥1.3*PUMP POWER
4	MS-4iSC6-67-72-750-A/D	72V	85V-280V	80V-430V	750W	6m³/h	67m	1.25″	2m	<430V	≥1.3*PUMP POWER
5	MS-4iSC6-101-110-1100-A/D	110V	85V-280V	80V-430V	1100W	6m³/h	101m	1.25″	2m	<430V	≥1.3*PUMP POWER
6	MS-4iSC6-146-110-1300-A/D	110V	85V-280V	80V-430V	1300W	6m³/h	146m	1.25″	2m	<430V	≥1.3*PUMP POWER
7	MS-4iSC9.5-50-72-750-A/D	72V	85V-280V	80V-430V	750W	9.5m³/h	50m	2″	2m	<430V	≥1.3*PUMP POWER
8	MS-4iSC9.5-75-110-1100-A/D	110V	85V-280V	80V-430V	1100W	9.5m³/h	75m	2″	2m	<430V	≥1.3*PUMP POWER
9	MS-4iSC9.5-90-110-1500-A/D	110V	85V-280V	80V-430V	1500W	9.5m³/h	90m	2″	2m	<430V	≥1.3*PUMP POWER
10	MS-4iSC15-45-72-750-A/D	72V	85V-280V	80V-430V	750W	15m³/h	45m	2″	2m	<430V	≥1.3*PUMP POWER
11	MS-4iSC15-55-110-1100-A/D	110V	85V-280V	80V-430V	1100W	15m³/h	55m	2″	2m	<430V	≥1.3*PUMP POWER
12	MS-4iSC16-70-110-1500-A/D	110V	85V-280V	80V-430V	1500W	16m³/h	70m	2″	2m	<430V	≥1.3*PUMP POWER
13	MS-4iSC20-48-110-1500-A/D	110V	85V-280V	80V-430V	1500W	20m³/h	48m	2″	2m	<430V	≥1.3*PUMP POWER
14	MS-4iSC25-26-110-1500-A/D	110V	85V-280V	80V-430V	1500W	25m³/h	26m	2″	2m	<430V	≥1.3*PUMP POWER
15	MS-4/6iSC30-19-110-1100-A/D	110V	85V-280V	80V-430V	1100W	30m³/h	19m	3″	2m	<430V	≥1.3*PUMP POWER
16	MS-4/6iSC30-31-110-1500-A/D	110V	85V-280V	80V-430V	1500W	30m³/h	31m	3″	2m	<430V	≥1.3*PUMP POWER
17	MS-4/6iSC36-22-110-1500-A/D	110V	85V-280V	80V-430V	1500W	36m³/h	22m	3″	2m	<430V	≥1.3*PUMP POWER
18	MS-4iSC6-255-200-2200-A/D	200V	85V-280V	80V-430V	2200W	6m³/h	255m	1.25″	2m	<430V	≥1.3*PUMP POWER
19	MS-4iSC6-300-245-3000-A/D	245V	85V-280V	80V-430V	3000W	6m³/h	300m	1.25″	2m	<430V	≥1.3*PUMP POWER
20	MS-4iSC6-360-300-4000-A/D	300V	85V-280V	80V-430V	4000W	6m³/h	360m	1.25″	2m	<430V	≥1.3*PUMP POWER
21	MS-4iSC9.5-136-200-2200-A/D	200V	85V-280V	80V-430V	2200W	9.5m³/h	136m	2″	2m	<430V	≥1.3*PUMP POWER
22	MS-4iSC9.5-220-245-3000-A/D	245V	85V-280V	80V-430V	3000W	9.5m³/h	220m	2″	2m	<430V	≥1.3*PUMP POWER
23	MS-4iSC9.5-275-300-4000-A/D	300V	85V-280V	80V-430V	4000W	9.5m³/h	275m	2″	2m	<430V	≥1.3*PUMP POWER
24	MS-4iSC18-95-200-2200-A/D	200V	85V-280V	80V-430V	2200W	18m³/h	95m	2″	2m	<430V	≥1.3*PUMP POWER
25	MS-4iSC18-137-245-3000-A/D	245V	85V-280V	80V-430V	3000W	18m³/h	137m	2″	2m	<430V	≥1.3*PUMP POWER
26	MS-4iSC18-168-300-4000-A/D	300V	85V-280V	80V-430V	4000W	18m³/h	168m	2″	2m	<430V	≥1.3*PUMP POWER
27	MS-4iSC20-70-200-2200-A/D	200V	85V-280V	80V-430V	2200W	20m³/h	70m	2″	2m	<430V	≥1.3*PUMP POWER
28	MS-4iSC20-82-245-3000-A/D	245V	85V-280V	80V-430V	3000W	20m³/h	82m	2″	2m	<430V	≥1.3*PUMP POWER
29	MS-4iSC22-115-300-4000-A/D	300V	85V-280V	80V-430V	4000W	22m³/h	115m	2″	2m	<430V	≥1.3*PUMP POWER
30	MS-4iSC30-36-200-2200-A/D	200V	85V-280V	80V-430V	2200W	30m³/h	36m	2″	2m	<430V	≥1.3*PUMP POWER
31	MS-4iSC30-52-245-3000-A/D	245V	85V-280V	80V-430V	3000W	30m³/h	52m	2″	2m	<430V	≥1.3*PUMP POWER
32	MS-4iSC30-74-300-4000-A/D	300V	85V-280V	80V-430V	4000W	30m³/h	74m	2″	2m	<430V	≥1.3*PUMP POWER
33	MS-4/6iSC30-52-200-2200-A/D	200V	85V-280V	80V-430V	2200W	30m³/h	52m	3″	2m	<430V	≥1.3*PUMP POWER
34	MS-4/6iSC30-70-245-3000-A/D	245V	85V-280V	80V-430V	3000W	30m³/h	70m	3″	2m	<430V	≥1.3*PUMP POWER
35	MS-4/6iSC30-100-300-4000-A/D	300V	85V-280V	80V-430V	4000W	30m³/h	100m	3″	2m	<430V	≥1.3*PUMP POWER
36	MS-4/6iSC36-38-200-2200-A/D	200V	85V-280V	80V-430V	2200W	36m³/h	38m	3″	2m	<430V	≥1.3*PUMP POWER
37	MS-4/6iSC36-56-245-3000-A/D	245V	85V-280V	80V-430V	3000W	36m³/h	56m	3″	2m	<430V	≥1.3*PUMP POWER
38	MS-4/6iSC36-80-300-4000-A/D	300V	85V-280V	80V-430V	4000W	36m³/h	80m	3″	2m	<430V	≥1.3*PUMP POWER
39	MS-4/6iSC46-51-245-3000-A/D	245V	85V-280V	80V-430V	3000W	46m³/h	51m	3″	2m	<430V	≥1.3*PUMP POWER
40	MS-4/6iSC46-68-300-4000-A/D	300V	85V-280V	80V-430V	4000W	46m³/h	68m	3″	2m	<430V	≥1.3*PUMP POWER
41	MS-4/6iSC65-42-300-4000-A/D	300V	85V-280V	80V-430V	4000W	65m³/h	42m	3″	2m	<430V	≥1.3*PUMP POWER

Performance Data for 4iSC AC DC Stainless Steel Impeller Series Pump Much Solar

Model 1: MS-4iSC3.5-105-72-750-A/D (Max Flow: 3.5 m³/h, Max Head: 105m)
Head (m)	1	12	24	35	47	58	70	81	93	104	105
Flow (m³/h)	3.50	3.14	2.77	2.41	2.04	1.68	1.31	0.95	0.58	0.22	0.10

Model 2: MS-4iSC3.5-140-110-1100-A/D (Max Flow: 3.5 m³/h, Max Head: 140m)
Head (m)	1	11	21	31	41	51	61	71	81	91	101	111	121	131	140
Flow (m³/h)	3.50	3.22	2.94	2.66	2.38	2.10	1.82	1.54	1.26	0.98	0.70	0.42	0.28	0.14	0.10

Model 3: MS-4iSC4.8-203-110-1500-A/D (Max Flow: 4.8 m³/h, Max Head: 203m)
Head (m)	1	15	30	44	59	73	88	102	117	131	146	160	175	189	203
Flow (m³/h)	4.80	4.39	3.98	3.57	3.16	2.75	2.34	1.93	1.52	1.11	0.70	0.42	0.28	0.14	0.10

Model 4: MS-4iSC6-67-72-750-A/D (Max Flow: 6 m³/h, Max Head: 67m)
Head (m)	1	8	15	22	30	37	44	52	59	67
Flow (m³/h)	6.00	5.39	4.78	4.17	3.56	2.95	2.34	1.73	1.12	0.10

Model 5: MS-4iSC6-101-110-1100-A/D (Max Flow: 6 m³/h, Max Head: 101m)
Head (m)	1	12	23	34	45	56	67	78	89	100	101
Flow (m³/h)	6.00	5.36	4.72	4.08	3.44	2.80	2.16	1.52	0.88	0.24	0.10

Model 6: MS-4iSC6-146-110-1300-A/D (Max Flow: 6 m³/h, Max Head: 146m)
Head (m)	1	11	21	32	42	53	63	74	84	95	105	116	126	137	146
Flow (m³/h)	6.00	5.53	5.06	4.59	4.12	3.65	3.18	2.71	2.24	1.77	1.30	0.83	0.36	0.18	0.10

Model 7: MS-4iSC9.5-50-72-750-A/D (Max Flow: 9.5 m³/h, Max Head: 50m)
Head (m)	1	6	12	17	23	28	34	39	45	50
Flow (m³/h)	9.50	8.56	7.62	6.68	5.74	4.80	3.86	2.92	1.98	0.10

Model 8: MS-4iSC9.5-75-110-1100-A/D (Max Flow: 9.5 m³/h, Max Head: 75m)
Head (m)	1	9	17	25	33	41	49	57	65	75
Flow (m³/h)	9.50	8.40	7.30	6.20	5.10	4.00	2.90	1.80	0.70	0.10

Model 9: MS-4iSC9.5-90-110-1500-A/D (Max Flow: 9.5 m³/h, Max Head: 90m)
Head (m)	1	11	20	30	40	50	60	70	80	90
Flow (m³/h)	9.50	8.36	7.22	6.08	4.94	3.80	2.66	1.52	0.38	0.10

Model 10: MS-4iSC15-45-72-750-A/D (Max Flow: 15 m³/h, Max Head: 45m)
Head (m)	1	6	11	16	21	26	31	36	41	45
Flow (m³/h)	15.00	13.49	11.98	10.47	8.96	7.45	5.94	4.43	2.92	0.10

Model 11: MS-4iSC15-55-110-1100-A/D (Max Flow: 15 m³/h, Max Head: 55m)
Head (m)	1	7	13	19	25	31	37	43	49	55
Flow (m³/h)	15.00	13.34	11.68	10.02	8.36	6.70	5.04	3.38	1.72	0.10

Model 12: MS-4iSC16-70-110-1500-A/D (Max Flow: 16 m³/h, Max Head: 70m)
Head (m)	1	8	16	24	31	39	47	54	62	70
Flow (m³/h)	16.00	14.15	12.30	10.45	8.60	6.75	4.90	3.05	1.20	0.10

Model 13: MS-4iSC20-48-110-1500-A/D (Max Flow: 20 m³/h, Max Head: 48m)
Head (m)	1	6	12	17	23	28	34	39	44	48
Flow (m³/h)	20.00	17.96	15.92	13.88	11.84	9.80	7.76	5.72	3.68	0.10

Model 14: MS-4iSC25-26-110-1500-A/D (Max Flow: 25 m³/h, Max Head: 26m)
Head (m)	1	4	7	10	13	16	19	22	25	26
Flow (m³/h)	25.00	22.24	19.48	16.72	13.96	11.20	8.44	5.68	2.92	0.10

Model 15: MS-4/6iSC30-19-110-1100-A/D (Max Flow: 30 m³/h, Max Head: 19m)
Head (m)	1	3	5	7	9	11	13	15	17	19
Flow (m³/h)	30.00	26.65	23.30	19.95	16.60	13.25	9.90	6.55	3.20	0.10

Model 16: MS-4/6iSC30-31-110-1500-A/D (Max Flow: 30 m³/h, Max Head: 31m)
Head (m)	1	4	8	11	15	18	22	25	29	31
Flow (m³/h)	30.00	26.61	23.22	19.83	16.44	13.05	9.66	6.27	2.88	0.10

Model 17: MS-4/6iSC36-22-110-1500-A/D (Max Flow: 36 m³/h, Max Head: 22m)
Head (m)	1	3	6	8	10	13	15	18	20	22
Flow (m³/h)	36.00	32.01	28.02	24.03	20.04	16.05	12.06	8.07	4.08	0.10

Model 18: MS-4iSC6-255-200-2200-A/D (Max Flow: 6 m³/h, Max Head: 255m)
Head (m)	1	19	37	55	73	91	109	127	145	163	181	199	217	235	255
Flow (m³/h)	6.00	5.47	4.94	4.41	3.88	3.35	2.82	2.29	1.76	1.23	0.70	0.35	0.24	0.12	0.10

Model 19: MS-4iSC6-300-245-3000-A/D (Max Flow: 6 m³/h, Max Head: 300m)
Head (m)	1	22	43	64	86	107	128	150	171	193	214	236	257	279	300
Flow (m³/h)	6.00	5.47	4.94	4.41	3.88	3.35	2.82	2.29	1.76	1.23	0.70	0.35	0.24	0.12	0.10

Model 20: MS-4iSC6-360-300-4000-A/D (Max Flow: 6 m³/h, Max Head: 360m)
Head (m)	1	26	52	77	103	129	154	180	206	231	257	283	308	334	360
Flow (m³/h)	6.00	5.47	4.94	4.41	3.88	3.35	2.82	2.29	1.76	1.23	0.70	0.35	0.24	0.12	0.10

Model 21: MS-4iSC9.5-136-200-2200-A/D (Max Flow: 9.5 m³/h, Max Head: 136m)
Head (m)	1	10	20	29	39	48	58	67	77	86	96	105	115	124	136
Flow (m³/h)	9.50	8.77	8.04	7.31	6.58	5.85	5.12	4.39	3.66	2.93	2.20	1.47	0.74	0.22	0.10

Model 22: MS-4iSC9.5-220-245-3000-A/D (Max Flow: 9.5 m³/h, Max Head: 220m)
Head (m)	1	16	32	47	63	78	94	110	125	141	157	172	188	204	220
Flow (m³/h)	9.50	8.74	7.98	7.22	6.46	5.70	4.94	4.18	3.42	2.66	1.90	1.14	0.38	0.19	0.10

Model 23: MS-4iSC9.5-275-300-4000-A/D (Max Flow: 9.5 m³/h, Max Head: 275m)
Head (m)	1	20	39	59	78	98	117	137	156	176	195	215	234	254	275
Flow (m³/h)	9.50	8.71	7.92	7.13	6.34	5.55	4.76	4.97	3.18	2.39	1.60	0.81	0.38	0.19	0.10

Model 24: MS-4iSC18-95-200-2200-A/D (Max Flow: 18 m³/h, Max Head: 95m)
Head (m)	1	11	21	31	42	52	63	73	84	95
Flow (m³/h)	18.00	15.85	13.70	11.55	9.40	7.25	5.10	2.95	0.80	0.10

Model 25: MS-4iSC18-137-245-3000-A/D (Max Flow: 18 m³/h, Max Head: 137m)
Head (m)	1	10	20	29	39	49	58	68	78	88	97	107	117	127	137
Flow (m³/h)	18.00	16.62	15.24	13.86	12.48	11.10	9.72	8.34	6.96	5.58	4.20	2.82	1.44	0.24	0.10

Model 26: MS-4iSC18-168-300-4000-A/D (Max Flow: 18 m³/h, Max Head: 168m)
Head (m)	1	12	24	36	48	60	72	84	96	108	120	132	144	156	168
Flow (m³/h)	18.00	16.55	15.10	13.65	12.20	10.75	9.30	7.85	6.40	4.95	3.50	2.05	0.60	0.30	0.10

Model 27: MS-4iSC20-70-200-2200-A/D (Max Flow: 20 m³/h, Max Head: 70m)
Head (m)	1	8	16	24	31	39	47	54	62	70
Flow (m³/h)	20.00	17.67	15.34	13.01	10.68	8.35	6.02	3.69	1.36	0.10

Model 28: MS-4iSC20-82-245-3000-A/D (Max Flow: 20 m³/h, Max Head: 82m)
Head (m)	1	10	19	28	37	46	55	64	73	82
Flow (m³/h)	20.00	17.56	15.12	12.68	10.24	7.80	5.36	2.92	0.48	0.10

Model 29: MS-4iSC22-115-300-4000-A/D (Max Flow: 22 m³/h, Max Head: 115m)
Head (m)	1	9	17	25	34	42	50	58	66	74	82	90	98	106	115
Flow (m³/h)	22.00	20.27	18.54	16.81	15.08	13.35	11.62	9.89	8.16	6.43	4.70	2.97	1.24	0.31	0.10

Model 30: MS-4iSC30-36-200-2200-A/D (Max Flow: 30 m³/h, Max Head: 36m)
Head (m)	1	5	9	13	17	21	25	29	33	36
Flow (m³/h)	30.00	26.63	23.26	19.89	16.52	13.15	9.78	6.41	3.04	0.10

Model 31: MS-4iSC30-52-245-3000-A/D (Max Flow: 30 m³/h, Max Head: 52m)
Head (m)	1	6	12	18	24	30	35	41	47	52
Flow (m³/h)	30.00	26.47	22.94	19.41	15.88	12.35	8.82	5.29	1.76	0.10

Model 32: MS-4iSC30-74-300-4000-A/D (Max Flow: 30 m³/h, Max Head: 74m)
Head (m)	1	9	17	25	33	41	49	57	65	74
Flow (m³/h)	30.00	26.38	22.76	19.14	15.52	11.90	8.28	4.66	1.04	0.10

Model 33: MS-4/6iSC30-52-200-2200-A/D (Max Flow: 30 m³/h, Max Head: 52m)
Head (m)	1	6	12	18	24	30	35	41	47	52
Flow (m³/h)	30.00	26.47	22.94	19.41	15.88	12.35	8.82	5.29	1.76	0.10

Model 34: MS-4/6iSC30-70-245-3000-A/D (Max Flow: 30 m³/h, Max Head: 70m)
Head (m)	1	8	16	24	31	39	47	54	62	70
Flow (m³/h)	30.00	26.42	22.84	19.26	15.68	12.10	8.52	4.94	1.36	0.10

Model 35: MS-4/6iSC30-100-300-4000-A/D (Max Flow: 30 m³/h, Max Head: 100m)
Head (m)	1	8	15	22	29	36	43	50	57	64	71	78	85	92	100
Flow (m³/h)	30.00	27.61	25.22	22.83	20.44	18.05	15.66	13.27	10.88	8.49	6.10	3.71	1.32	0.24	0.10

Model 36: MS-4/6iSC36-38-200-2200-A/D (Max Flow: 36 m³/h, Max Head: 38m)
Head (m)	1	5	10	14	18	23	27	31	36	38
Flow (m³/h)	36.00	31.92	27.84	23.76	19.68	15.60	11.52	7.44	3.36	0.10

Model 37: MS-4/6iSC36-56-245-3000-A/D (Max Flow: 36 m³/h, Max Head: 56m)
Head (m)	1	7	13	19	25	31	37	43	49	56
Flow (m³/h)	36.00	31.85	27.70	23.55	19.40	15.25	11.10	6.95	2.80	0.10

Model 38: MS-4/6iSC36-80-300-4000-A/D (Max Flow: 36 m³/h, Max Head: 80m)
Head (m)	1	9	18	26	34	42	50	58	66	80
Flow (m³/h)	36.00	31.77	27.54	23.31	19.08	14.85	10.62	6.39	2.16	0.10

Model 39: MS-4/6iSC46-51-245-3000-A/D (Max Flow: 46 m³/h, Max Head: 51m)
Head (m)	1	6	12	18	24	30	36	42	47	51
Flow (m³/h)	46.00	40.62	35.24	29.86	24.48	19.10	13.72	8.34	2.96	0.10

Model 40: MS-4/6iSC46-68-300-4000-A/D (Max Flow: 46 m³/h, Max Head: 68m)
Head (m)	1	8	16	24	31	39	47	54	62	68
Flow (m³/h)	46.00	40.56	35.12	29.68	24.24	18.80	13.36	7.92	2.48	0.10

Model 41: MS-4/6iSC65-42-300-4000-A/D (Max Flow: 65 m³/h, Max Head: 42m)
Head (m)	1	5	10	14	19	23	28	32	37	42
Flow (m³/h)	65.00	57.68	50.36	43.04	35.72	28.40	21.08	13.76	6.44	0.10

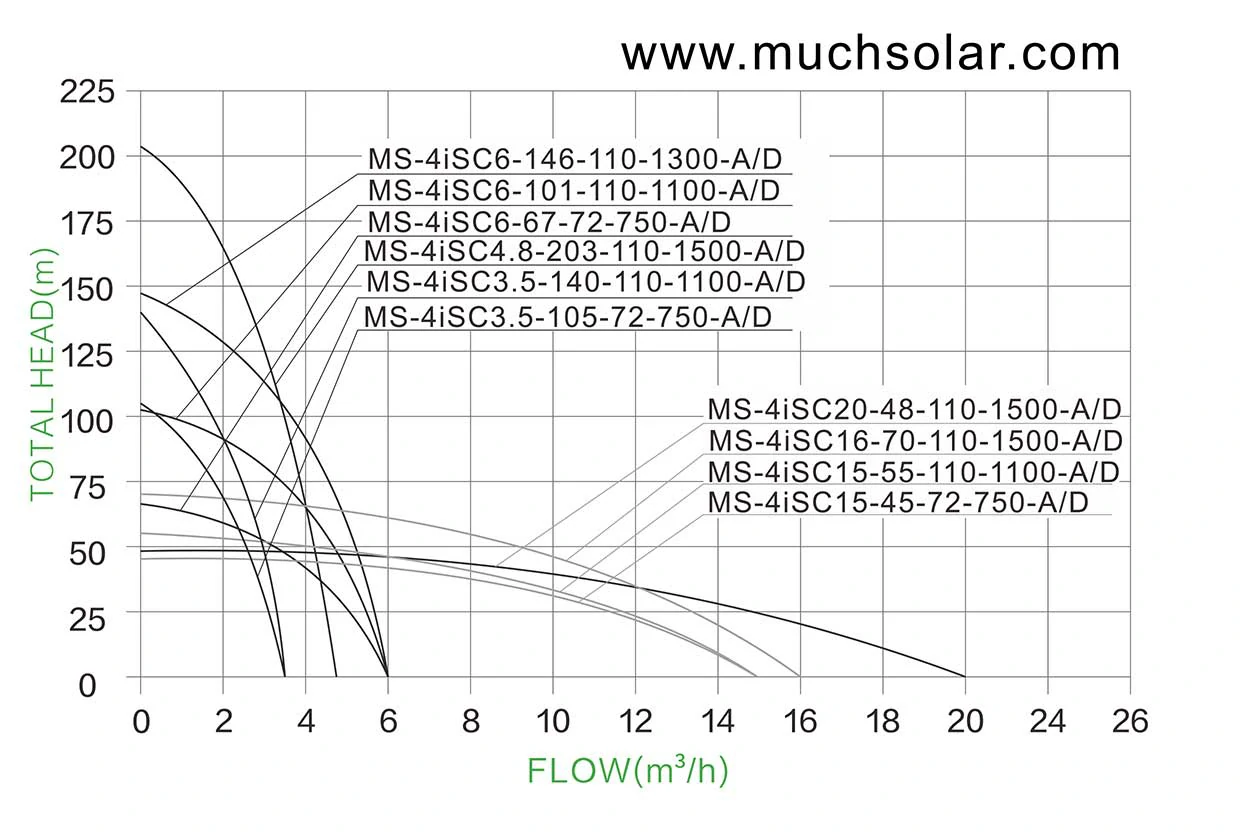

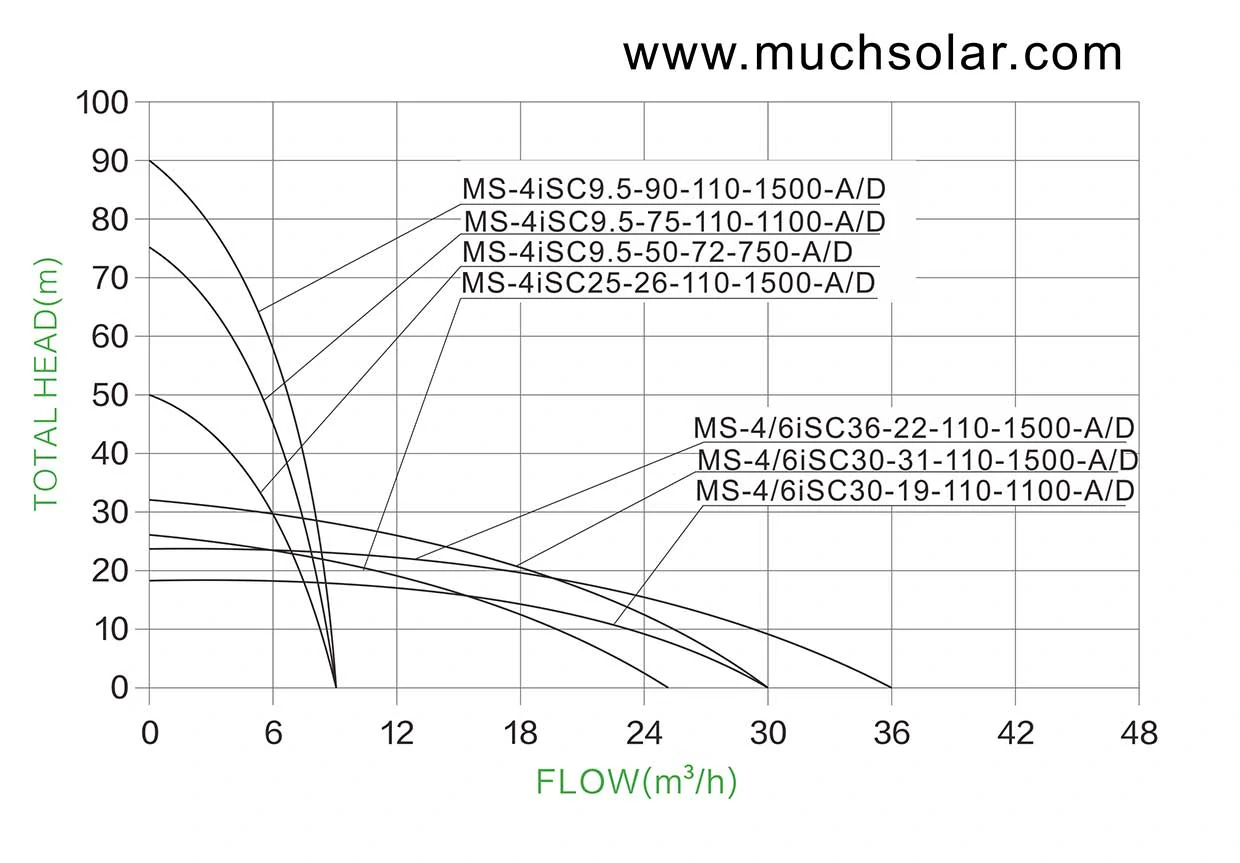

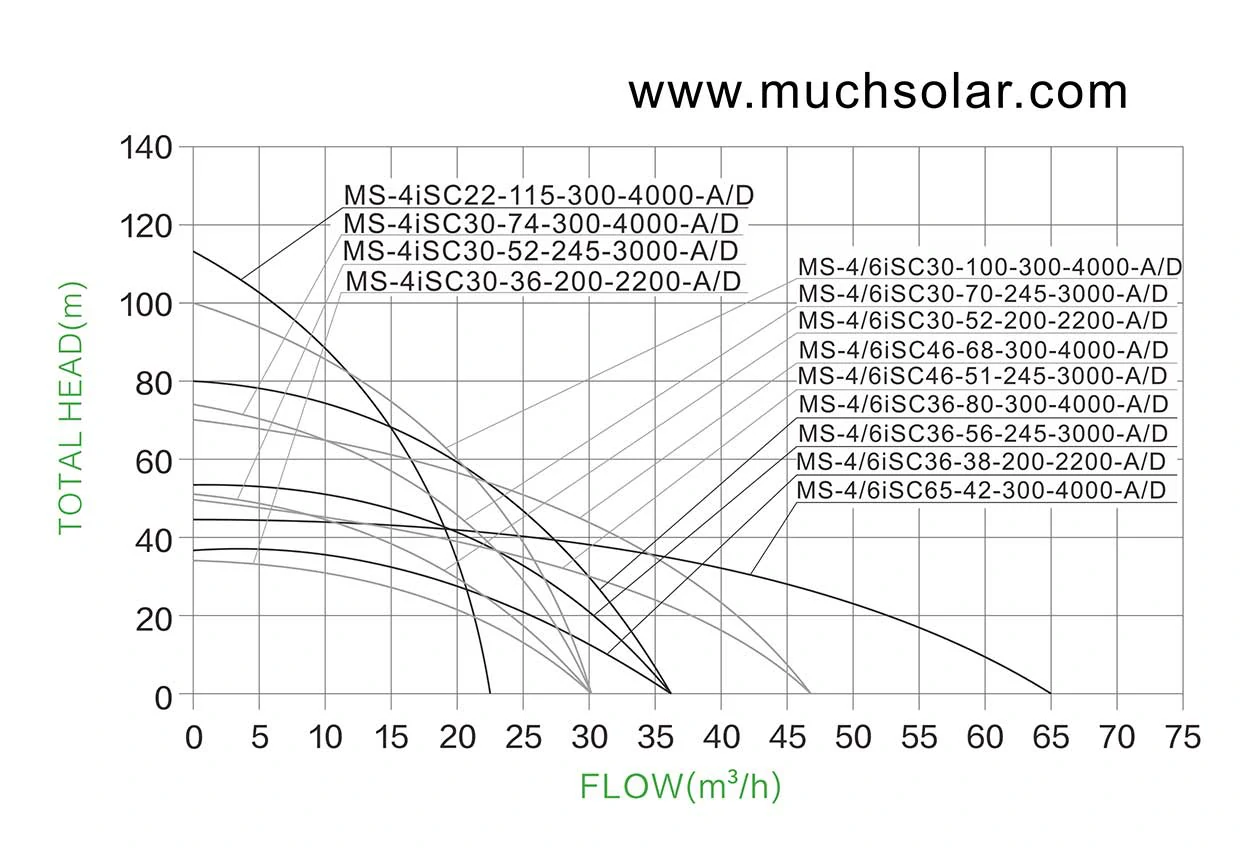

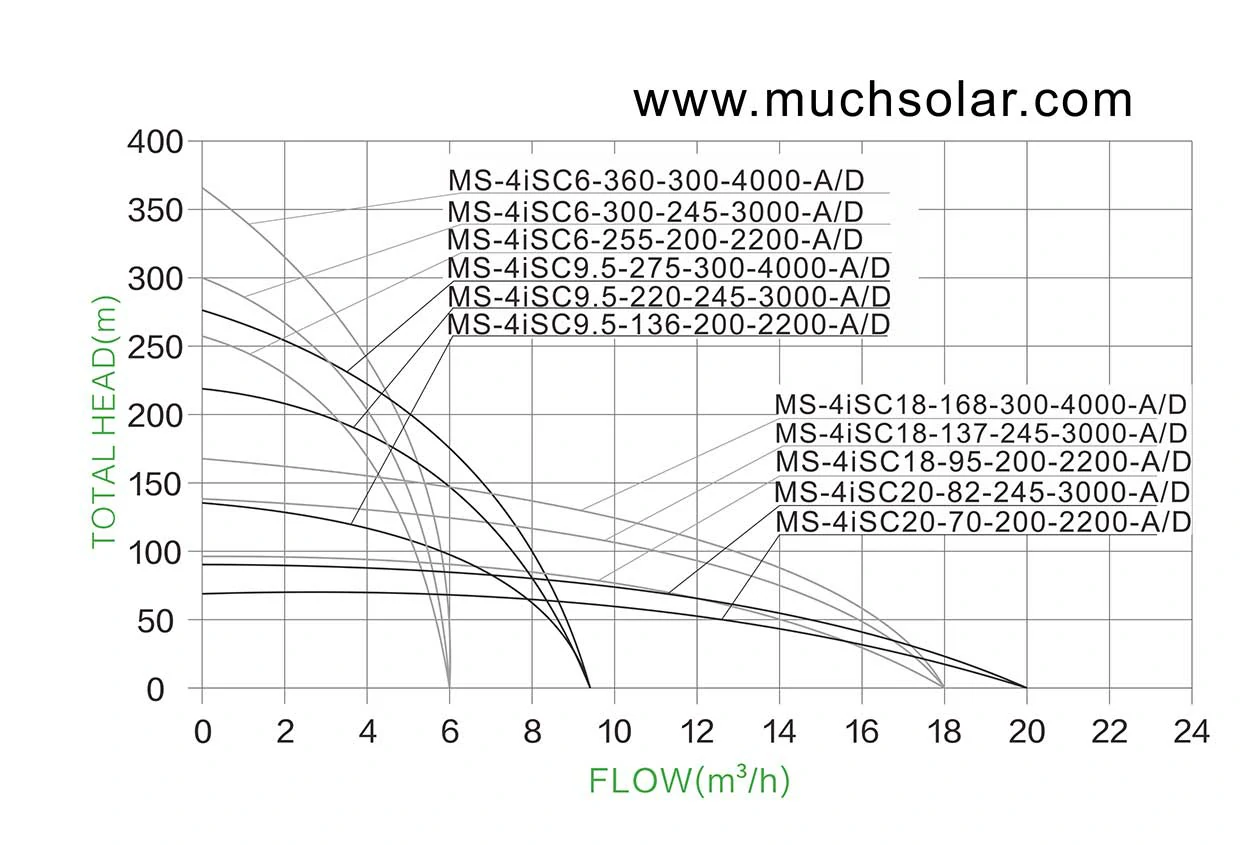

Much Solar 4iSC AC DC Stainless Steel Impeller SOLAR PUMP HYDRAULIC PERFORMANCE CURVES

1749811066 Much Solar 4iSC AC DC Stainless Steel Impeller SOLAR PUMP HYDRAULIC PERFORMANCE CURVES (1)

1749811067 Much Solar 4iSC AC DC Stainless Steel Impeller SOLAR PUMP HYDRAULIC PERFORMANCE CURVES (2)

1749811069 Much Solar 4iSC AC DC Stainless Steel Impeller SOLAR PUMP HYDRAULIC PERFORMANCE CURVES (3)

1749811070 Much Solar 4iSC AC DC Stainless Steel Impeller SOLAR PUMP HYDRAULIC PERFORMANCE CURVES (4)

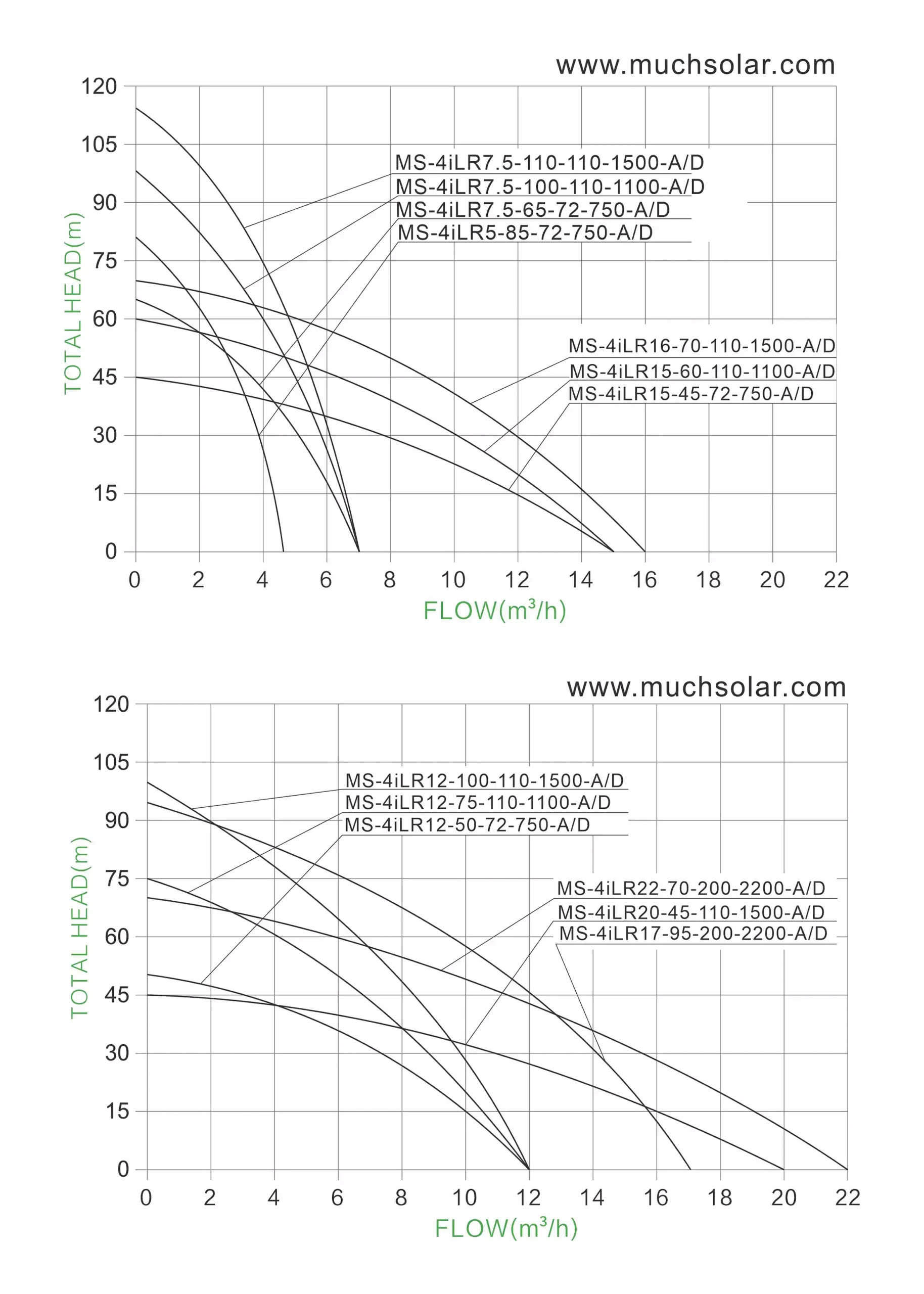

4iLR A/D

Much Solar 4″– 4iLR AC DC Solar submersible water pumps

#	MODEL	Pump Voltage (DC)	(AC) Voltage	(DC) Voltage	Power	Max. Flow	Max. Head	Outlet	Cable	Open circuit voltage (VOC)	Solar Panel Power
1	MS-4iLR5-85-72-750-A/D	72V	85V-280V	80V-430V	750W	5 m³/h	85m	1.25″	2m	<430V	≥1.3*PUMP POWER
2	MS-4iLR7.5-65-72-750-A/D	72V	85V-280V	80V-430V	750W	7.5 m³/h	65m	2″	2m	<430V	≥1.3*PUMP POWER
3	MS-4iLR7.5-100-110-1100-A/D	110V	85V-280V	80V-430V	1100W	7.5 m³/h	100m	2″	2m	<430V	≥1.3*PUMP POWER
4	MS-4iLR7.5-110-110-1500-A/D	110V	85V-280V	80V-430V	1500W	7.5 m³/h	110m	2″	2m	<430V	≥1.3*PUMP POWER
5	MS-4iLR12-50-72-750-A/D	72V	85V-280V	80V-430V	750W	12 m³/h	50m	2″	2m	<430V	≥1.3*PUMP POWER
6	MS-4iLR12-75-110-1100-A/D	110V	85V-280V	80V-430V	1100W	12 m³/h	75m	2″	2m	<430V	≥1.3*PUMP POWER
7	MS-4iLR12-100-110-1500-A/D	110V	85V-280V	80V-430V	1500W	12 m³/h	100m	2″	2m	<430V	≥1.3*PUMP POWER
8	MS-4iLR15-45-72-750-A/D	72V	85V-280V	80V-430V	750W	15 m³/h	45m	2″	2m	<430V	≥1.3*PUMP POWER
9	MS-4iLR15-60-110-1100-A/D	110V	85V-280V	80V-430V	1100W	15 m³/h	60m	2″	2m	<430V	≥1.3*PUMP POWER
10	MS-4iLR16-70-110-1500-A/D	110V	85V-280V	80V-430V	1500W	15 m³/h	70m	2″	2m	<430V	≥1.3*PUMP POWER
11	MS-4iLR17-95-200-2200-A/D	200V	85V-280V	80V-430V	2200W	15 m³/h	95m	2″	2m	<430V	≥1.3*PUMP POWER
12	MS-4iLR20-45-110-1500-A/D	110V	85V-280V	80V-430V	1500W	15 m³/h	45m	2″	2m	<430V	≥1.3*PUMP POWER
13	MS-4iLR22-70-200-2200-A/D	200V	85V-280V	80V-430V	2200W	22 m³/h	70m	2″	2m	<430V	≥1.3*PUMP POWER

Performance Data for 4iLR AC DC Plastic Impeller Series Pump Much Solar

Model 1: MS-4iLR5-85-750-72V (Max Flow: 5 m³/h, Max Head: 85m)
Head (m)	1	10	19	28	37	46	55	65	75	85
Flow (m³/h)	5.00	4.54	4.09	3.64	3.18	2.73	2.27	1.82	1.36	0.10

Model 2: MS-4iLR7.5-65-750-72V (Max Flow: 7.5 m³/h, Max Head: 65m)
Head (m)	1	8	15	22	29	37	44	51	58	65
Flow (m³/h)	7.50	6.68	5.87	5.05	4.24	3.42	2.61	1.79	0.97	0.10

Model 3: MS-4iLR7.5-100-1100-110V (Max Flow: 7.5 m³/h, Max Head: 100m)
Head (m)	1	8	15	22	29	36	43	50	57	64	71	78	85	92	100
Flow (m³/h)	7.50	7.03	6.56	6.09	5.62	5.15	4.68	4.21	3.74	3.27	2.80	2.32	1.85	1.38	0.10

Model 4: MS-4iLR7.5-110-1500-110V (Max Flow: 7.5 m³/h, Max Head: 110m)
Head (m)	1	9	17	25	33	41	49	57	65	73	81	89	97	105	110
Flow (m³/h)	7.50	7.03	6.56	6.09	5.62	5.15	4.68	4.21	3.74	3.27	2.80	2.32	1.85	1.38	0.10

Model 5: MS-4iLR12-50-750-72V (Max Flow: 12 m³/h, Max Head: 50m)
Head (m)	1	6	12	17	23	28	34	39	45	50
Flow (m³/h)	12.00	10.65	9.29	7.94	6.59	5.24	3.88	2.53	1.18	0.10

Model 6: MS-4iLR12-75-1100-110V (Max Flow: 12 m³/h, Max Head: 75m)
Head (m)	1	9	17	25	33	41	49	57	65	75
Flow (m³/h)	12.00	10.81	9.62	8.43	7.24	6.05	4.86	3.67	2.49	0.10

Model 7: MS-4iLR12-100-1500-110V (Max Flow: 12 m³/h, Max Head: 100m)
Head (m)	1	8	15	22	29	36	43	50	57	64	71	78	85	92	100
Flow (m³/h)	12.00	11.29	10.58	9.87	9.16	8.45	7.74	7.03	6.32	5.61	4.90	4.19	3.48	2.77	0.10

Model 8: MS-4iLR15-45-750-72V (Max Flow: 15 m³/h, Max Head: 45m)
Head (m)	1	6	11	16	21	26	31	36	41	45
Flow (m³/h)	15.00	13.34	11.68	10.02	8.36	6.70	5.04	3.38	1.72	0.10

Model 9: MS-4iLR15-60-1100-110V (Max Flow: 15 m³/h, Max Head: 60m)
Head (m)	1	7	14	20	27	33	40	46	53	60
Flow (m³/h)	15.00	13.65	12.30	10.94	9.59	8.24	6.89	5.54	4.19	0.10

Model 10: MS-4iLR16-70-1500-110V (Max Flow: 15 m³/h, Max Head: 70m)
Head (m)	1	8	15	22	29	36	43	50	57	70
Flow (m³/h)	15.00	13.79	12.58	11.37	10.16	8.95	7.74	6.53	5.32	0.10

Model 11: MS-4iLR17-95-2200-200V (Max Flow: 15 m³/h, Max Head: 95m)
Head (m)	1	8	15	22	29	36	43	50	57	64	71	78	85	92	95
Flow (m³/h)	15.00	14.07	13.14	12.21	11.28	10.35	9.42	8.49	7.56	6.63	5.70	4.77	3.84	2.91	0.10

Model 12: MS-4iLR20-45-1500-110V (Max Flow: 15 m³/h, Max Head: 45m)
Head (m)	1	6	11	16	21	26	31	36	41	45
Flow (m³/h)	15.00	13.34	11.68	10.02	8.36	6.70	5.04	3.38	1.72	0.10

Model 13: MS-4iLR22-70-2200-200V (Max Flow: 22 m³/h, Max Head: 70m)
Head (m)	1	8	15	22	29	36	43	50	57	70
Flow (m³/h)	22.00	20.16	18.32	16.48	14.64	12.80	10.96	9.12	7.28	0.10

Much Solar 4iLR AC DC Plastic Impeller SOLAR PUMP HYDRAULIC PERFORMANCE CURVES

1749550953 Much Solar 4iLR AC DC Stainless Steel Impeller SOLAR PUMP HYDRAULIC PERFORMANCE CURVES

4iPC A/D

Much Solar 4″– 4iPC AC DC Solar submersible water pumps

#	Model	Pump Voltage (DC)	(AC) Voltage	(DC) Voltage	Power	Max. Flow	Max. Head	Outlet	Cable	Solar panel open circuit voltage (VOC)	Solar Panel Power
1	MS-4iPC4.5-80-72-750-A/D	72V	85V-280V	80V-430V	750W	4.5m³/h	80m	1.25″	2m	<430V	≥1.3*PUMP POWER
2	MS-4iPC5-105-110-1100-A/D	110V	85V-280V	80V-430V	1100W	5m³/h	105m	1.25″	2m	<430V	≥1.3*PUMP POWER
3	MS-4iPC6-56-72-750-A/D	72V	85V-280V	80V-430V	750W	6m³/h	56m	1.25″	2m	<430V	≥1.3*PUMP POWER
4	MS-4iPC6.5-86-110-1100-A/D	110V	85V-280V	80V-430V	1100W	6.5m³/h	86m	1.25″	2m	<430V	≥1.3*PUMP POWER
5	MS-4iPC6.5-112-110-1300-A/D	110V	85V-280V	80V-430V	1300W	6.5m³/h	112m	1.25″	2m	<430V	≥1.3*PUMP POWER
6	MS-4iPC6.5-135-110-1500-A/D	110V	85V-280V	80V-430V	1500W	6.5m³/h	135m	1.25″	2m	<430V	≥1.3*PUMP POWER
7	MS-4iPC9-45-72-750-A/D	72V	85V-280V	80V-430V	750W	9m³/h	45m	2″	2m	<430V	≥1.3*PUMP POWER
8	MS-4iPC9-58-110-1100-A/D	110V	85V-280V	80V-430V	1100W	9m³/h	58m	2″	2m	<430V	≥1.3*PUMP POWER
9	MS-4iPC9-71-110-1300-A/D	110V	85V-280V	80V-430V	1300W	9m³/h	71m	2″	2m	<430V	≥1.3*PUMP POWER
10	MS-4iPC9-85-110-1500-A/D	110V	85V-280V	80V-430V	1500W	9m³/h	85m	2″	2m	<430V	≥1.3*PUMP POWER
11	MS-4iPC13-36-72-750-A/D	72V	85V-280V	80V-430V	750W	13m³/h	36m	2″	2m	<430V	≥1.3*PUMP POWER
12	MS-4iPC13-49-110-1100-A/D	110V	85V-280V	80V-430V	1100W	13m³/h	49m	2″	2m	<430V	≥1.3*PUMP POWER
13	MS-4iPC13-54-110-1300-A/D	110V	85V-280V	80V-430V	1300W	13m³/h	54m	2″	2m	<430V	≥1.3*PUMP POWER
14	MS-4iPC13-60-110-1500-A/D	110V	85V-280V	80V-430V	1500W	13m³/h	60m	2″	2m	<430V	≥1.3*PUMP POWER
15	MS-4iPC17-48-110-1500-A/D	110V	85V-280V	80V-430V	1500W	17m³/h	48m	2″	2m	<430V	≥1.3*PUMP POWER
16	MS-4iPC7-185-200-2200-A/D	200V	85V-280V	80V-430V	2200W	7m³/h	185m	1.25″	2m	<430V	≥1.3*PUMP POWER
17	MS-4iPC7-230-245-3000-A/D	245V	85V-280V	80V-430V	3000W	7m³/h	230m	1.25″	2m	<430V	≥1.3*PUMP POWER
18	MS-4iPC7-300-300-4000-A/D	300V	85V-280V	80V-430V	4000W	7m³/h	300m	1.25″	2m	<430V	≥1.3*PUMP POWER
19	MS-4iPC9.5-125-200-2200-A/D	200V	85V-280V	80V-430V	2200W	9.5m³/h	125m	2″	2m	<430V	≥1.3*PUMP POWER
20	MS-4iPC9.5-195-245-3000-A/D	245V	85V-280V	80V-430V	3000W	9.5m³/h	195m	2″	2m	<430V	≥1.3*PUMP POWER
21	MS-4iPC9.5-250-300-4000-A/D	300V	85V-280V	80V-430V	4000W	9.5m³/h	250m	2″	2m	<430V	≥1.3*PUMP POWER
22	MS-4iPC12-150-200-2200-A/D	200V	85V-280V	80V-430V	2200W	12m³/h	150m	2″	2m	<430V	≥1.3*PUMP POWER
23	MS-4iPC12-175-245-3000-A/D	245V	85V-280V	80V-430V	3000W	12m³/h	175m	2″	2m	<430V	≥1.3*PUMP POWER
24	MS-4iPC12-213-300-4000-A/D	300V	85V-280V	80V-430V	4000W	12m³/h	213m	2″	2m	<430V	≥1.3*PUMP POWER
25	MS-4iPC14-125-200-2200-A/D	200V	85V-280V	80V-430V	2200W	14m³/h	125m	2″	2m	<430V	≥1.3*PUMP POWER
26	MS-4iPC14-150-245-3000-A/D	245V	85V-280V	80V-430V	3000W	14m³/h	150m	2″	2m	<430V	≥1.3*PUMP POWER
27	MS-4iPC14-190-300-4000-A/D	300V	85V-280V	80V-430V	4000W	14m³/h	190m	2″	2m	<430V	≥1.3*PUMP POWER
28	MS-4iPC18-112-245-3000-A/D	245V	85V-280V	80V-430V	3000W	18m³/h	112m	2″	2m	<430V	≥1.3*PUMP POWER
29	MS-4iPC18-140-300-4000-A/D	300V	85V-280V	80V-430V	4000W	18m³/h	140m	2″	2m	<430V	≥1.3*PUMP POWER
30	MS-4iPC22-78-245-3000-A/D	245V	85V-280V	80V-430V	3000W	22m³/h	78m	2″	2m	<430V	≥1.3*PUMP POWER
31	MS-4iPC22-98-300-4000-A/D	300V	85V-280V	80V-430V	4000W	22m³/h	98m	2″	2m	<430V	≥1.3*PUMP POWER
32	MS-4iPC30-50-200-2200-A/D	200V	85V-280V	80V-430V	2200W	30m³/h	50m	2″	2m	<430V	≥1.3*PUMP POWER
33	MS-4iPC30-60-245-3000-A/D	245V	85V-280V	80V-430V	3000W	30m³/h	60m	2″	2m	<430V	≥1.3*PUMP POWER
34	MS-4iPC30-70-300-4000-A/D	300V	85V-280V	80V-430V	4000W	30m³/h	70m	2″	2m	<430V	≥1.3*PUMP POWER
35	MS-4iPC36-45-200-2200-A/D	200V	85V-280V	80V-430V	2200W	36m³/h	45m	3″	2m	<430V	≥1.3*PUMP POWER
36	MS-4iPC41-52-245-3000-A/D	245V	85V-280V	80V-430V	3000W	41m³/h	52m	3″	2m	<430V	≥1.3*PUMP POWER
37	MS-4iPC41-60-300-4000-A/D	300V	85V-280V	80V-430V	4000W	41m³/h	60m	3″	2m	<430V	≥1.3*PUMP POWER

Performance Data for 4iPC AC DC Plastic Impeller Series Pump Much Solar

Model 1: MS-4iPC4.5-80-72-750-A/D (Max Flow: 4.5 m³/h, Max Head: 80m)
Head (m)	1	9	18	27	36	44	53	62	71	80
Flow (m³/h)	4.50	4.02	3.48	2.94	2.40	1.92	1.38	0.84	0.30	0.10

Model 2: MS-4iPC5-105-110-1100-A/D (Max Flow: 5 m³/h, Max Head: 105m)
Head (m)	1	8	15	23	30	38	45	53	60	68	75	83	90	98	105
Flow (m³/h)	5.00	4.62	4.24	3.82	3.44	3.06	2.68	2.30	1.92	1.54	1.16	0.78	0.40	0.20	0.10

Model 3: MS-4iPC6-56-72-750-A/D (Max Flow: 6 m³/h, Max Head: 56m)
Head (m)	1	7	13	19	25	31	37	43	49	56
Flow (m³/h)	6.00	5.38	4.76	4.14	3.52	2.90	2.28	1.66	1.04	0.10

Model 4: MS-4iPC6.5-86-110-1100-A/D (Max Flow: 6.5 m³/h, Max Head: 86m)
Head (m)	1	10	19	28	37	46	55	64	73	86
Flow (m³/h)	6.50	5.80	5.10	4.40	3.70	3.00	2.30	1.60	0.90	0.10

Model 5: MS-4iPC6.5-112-110-1300-A/D (Max Flow: 6.5 m³/h, Max Head: 112m)
Head (m)	1	9	16	24	32	40	48	56	64	72	80	88	96	104	112
Flow (m³/h)	6.50	6.04	5.58	5.11	4.65	4.19	3.73	3.27	2.80	2.34	1.88	1.42	0.96	0.49	0.10

Model 6: MS-4iPC6.5-135-110-1500-A/D (Max Flow: 6.5 m³/h, Max Head: 135m)
Head (m)	1	10	20	29	39	48	58	67	77	86	96	105	115	124	135
Flow (m³/h)	6.50	6.00	5.46	4.96	4.46	3.96	3.46	2.96	2.46	1.96	1.46	0.96	0.46	0.20	0.10

Model 7: MS-4iPC9-45-72-750-A/D (Max Flow: 9 m³/h, Max Head: 45m)
Head (m)	1	6	10	15	20	25	30	34	39	45
Flow (m³/h)	9.00	8.10	7.30	6.40	5.50	4.60	3.70	2.90	2.00	0.10

Model 8: MS-4iPC9-58-110-1100-A/D (Max Flow: 9 m³/h, Max Head: 58m)
Head (m)	1	7	13	20	26	32	38	45	51	58
Flow (m³/h)	9.00	8.05	7.10	6.05	5.10	4.15	3.20	2.15	1.20	0.10

Model 9: MS-4iPC9-71-110-1300-A/D (Max Flow: 9 m³/h, Max Head: 71m)
Head (m)	1	8	16	24	32	40	48	55	63	71
Flow (m³/h)	9.00	8.00	6.90	5.80	4.70	3.60	2.50	1.50	0.60	0.10

Model 10: MS-4iPC9-85-110-1500-A/D (Max Flow: 9 m³/h, Max Head: 85m)
Head (m)	1	10	19	28	37	46	55	64	73	85
Flow (m³/h)	9.00	8.00	7.00	6.00	5.00	4.00	3.00	2.00	1.00	0.10

Model 11: MS-4iPC13-36-72-750-A/D (Max Flow: 13 m³/h, Max Head: 36m)
Head (m)	1	5	9	13	17	21	25	29	33	36
Flow (m³/h)	13.00	11.62	10.24	8.86	7.48	6.10	4.72	3.34	1.96	0.10

Model 12: MS-4iPC13-49-110-1100-A/D (Max Flow: 13 m³/h, Max Head: 49m)
Head (m)	1	6	11	17	22	28	33	39	44	49
Flow (m³/h)	13.00	11.60	10.20	8.70	7.30	5.80	4.40	2.90	1.50	0.10

Model 13: MS-4iPC13-54-110-1300-A/D (Max Flow: 13 m³/h, Max Head: 54m)
Head (m)	1	7	12	18	24	30	36	42	48	54
Flow (m³/h)	13.00	11.50	10.00	8.50	7.00	5.50	4.00	2.50	1.00	0.10

Model 14: MS-4iPC13-60-110-1500-A/D (Max Flow: 13 m³/h, Max Head: 60m)
Head (m)	1	7	14	20	27	33	40	46	53	60
Flow (m³/h)	13.00	11.50	9.90	8.40	6.80	5.30	3.70	2.20	0.60	0.10

Model 15: MS-4iPC17-48-110-1500-A/D (Max Flow: 17 m³/h, Max Head: 48m)
Head (m)	1	6	11	16	22	27	32	38	43	48
Flow (m³/h)	17.00	15.15	13.30	11.45	9.50	7.65	5.80	3.85	1.90	0.10

Model 16: MS-4iPC7-185-200-2200-A/D (Max Flow: 7 m³/h, Max Head: 185m)
Head (m)	1	14	27	40	53	66	79	92	105	118	131	144	157	171	185
Flow (m³/h)	7.00	6.50	6.00	5.50	5.00	4.50	4.00	3.50	3.00	2.50	2.00	1.50	1.00	0.50	0.10

Model 17: MS-4iPC7-230-245-3000-A/D (Max Flow: 7 m³/h, Max Head: 230m)
Head (m)	1	17	33	49	66	82	98	115	131	148	164	180	197	213	230
Flow (m³/h)	7.00	6.50	6.00	5.50	4.99	4.49	3.99	3.49	2.99	2.49	1.99	1.49	0.99	0.49	0.10

Model 18: MS-4iPC7-300-300-4000-A/D (Max Flow: 7 m³/h, Max Head: 300m)
Head (m)	1	22	43	64	86	107	128	150	171	193	214	236	257	278	300
Flow (m³/h)	7.00	6.50	6.00	5.50	4.99	4.49	3.99	3.49	2.99	2.49	1.99	1.49	0.99	0.49	0.10

Model 19: MS-4iPC9.5-125-200-2200-A/D (Max Flow: 9.5 m³/h, Max Head: 125m)
Head (m)	1	9	18	27	36	45	54	63	72	81	90	99	108	116	125
Flow (m³/h)	9.50	8.80	8.09	7.39	6.69	5.99	5.29	4.59	3.89	3.19	2.49	1.79	1.09	0.39	0.10

Model 20: MS-4iPC9.5-195-245-3000-A/D (Max Flow: 9.5 m³/h, Max Head: 195m)
Head (m)	1	14	28	42	56	70	84	98	111	125	139	153	167	181	195
Flow (m³/h)	9.50	8.80	8.09	7.39	6.69	5.99	5.29	4.59	3.89	3.19	2.49	1.79	1.09	0.39	0.10

Model 21: MS-4iPC9.5-250-300-4000-A/D (Max Flow: 9.5 m³/h, Max Head: 250m)
Head (m)	1	18	36	54	72	90	108	126	144	162	180	198	216	234	250
Flow (m³/h)	9.50	8.80	8.09	7.39	6.69	5.99	5.29	4.59	3.89	3.19	2.49	1.79	1.09	0.39	0.10

Model 22: MS-4iPC12-150-200-2200-A/D (Max Flow: 12 m³/h, Max Head: 150m)
Head (m)	1	11	22	32	43	53	64	75	86	96	107	118	128	139	150
Flow (m³/h)	12.00	11.10	10.20	9.30	8.40	7.50	6.60	5.70	4.80	3.90	3.00	2.10	1.20	0.30	0.10

Model 23: MS-4iPC12-175-245-3000-A/D (Max Flow: 12 m³/h, Max Head: 175m)
Head (m)	1	13	25	37	50	62	74	87	99	112	124	136	149	161	175
Flow (m³/h)	12.00	11.10	10.20	9.30	8.40	7.50	6.60	5.70	4.80	3.90	3.00	2.10	1.20	0.30	0.10

Model 24: MS-4iPC12-213-300-4000-A/D (Max Flow: 12 m³/h, Max Head: 213m)
Head (m)	1	16	31	46	61	76	91	106	121	136	152	167	182	197	213
Flow (m³/h)	12.00	11.10	10.20	9.30	8.40	7.50	6.60	5.70	4.80	3.90	3.00	2.10	1.20	0.30	0.10

Model 25: MS-4iPC14-125-200-2200-A/D (Max Flow: 14 m³/h, Max Head: 125m)
Head (m)	1	9	18	27	36	45	54	63	72	81	90	99	108	116	125
Flow (m³/h)	14.00	12.90	11.80	10.70	9.60	8.50	7.40	6.30	5.20	4.10	3.00	1.90	0.80	0.20	0.10

Model 26: MS-4iPC14-150-245-3000-A/D (Max Flow: 14 m³/h, Max Head: 150m)
Head (m)	1	11	22	32	43	53	64	75	86	96	107	118	128	139	150
Flow (m³/h)	14.00	12.90	11.80	10.70	9.60	8.50	7.40	6.30	5.20	4.10	3.00	1.90	0.80	0.20	0.10

Model 27: MS-4iPC14-190-300-4000-A/D (Max Flow: 14 m³/h, Max Head: 190m)
Head (m)	1	14	27	41	54	68	81	95	108	122	135	149	162	176	190
Flow (m³/h)	14.00	12.90	11.80	10.70	9.60	8.50	7.40	6.30	5.20	4.10	3.00	1.90	0.80	0.20	0.10

Model 28: MS-4iPC18-112-245-3000-A/D (Max Flow: 18 m³/h, Max Head: 112m)
Head (m)	1	9	16	24	32	40	48	56	64	72	80	88	96	104	112
Flow (m³/h)	18.00	16.60	15.20	13.80	12.40	11.00	9.60	8.20	6.80	5.40	4.00	2.60	1.20	0.30	0.10

Model 29: MS-4iPC18-140-300-4000-A/D (Max Flow: 18 m³/h, Max Head: 140m)
Head (m)	1	10	20	30	40	50	60	70	80	90	100	110	120	130	140
Flow (m³/h)	18.00	16.60	15.20	13.80	12.40	11.00	9.60	8.20	6.80	5.40	4.00	2.60	1.20	0.30	0.10

Model 30: MS-4iPC22-78-245-3000-A/D (Max Flow: 22 m³/h, Max Head: 78m)
Head (m)	1	9	18	26	35	43	52	60	69	78
Flow (m³/h)	22.00	19.60	17.10	14.60	12.10	9.70	7.20	4.70	2.20	0.10

Model 31: MS-4iPC22-98-300-4000-A/D (Max Flow: 22 m³/h, Max Head: 98m)
Head (m)	1	11	21	31	41	51	61	71	81	98
Flow (m³/h)	22.00	19.60	17.10	14.60	12.10	9.70	7.20	4.70	2.20	0.10

Model 32: MS-4iPC30-50-200-2200-A/D (Max Flow: 30 m³/h, Max Head: 50m)
Head (m)	1	6	12	17	23	28	34	39	45	50
Flow (m³/h)	30.00	26.60	23.20	19.90	16.50	13.20	9.80	6.50	3.10	0.10

Model 33: MS-4iPC30-60-245-3000-A/D (Max Flow: 30 m³/h, Max Head: 60m)
Head (m)	1	7	14	20	27	33	40	46	53	60
Flow (m³/h)	30.00	26.60	23.20	19.90	16.50	13.20	9.80	6.50	3.10	0.10

Model 34: MS-4iPC30-70-300-4000-A/D (Max Flow: 30 m³/h, Max Head: 70m)
Head (m)	1	8	16	23	31	38	46	53	61	70
Flow (m³/h)	30.00	26.60	23.20	19.90	16.50	13.20	9.80	6.50	3.10	0.10

Model 35: MS-4iPC36-45-200-2200-A/D (Max Flow: 36 m³/h, Max Head: 45m)
Head (m)	1	6	10	15	20	25	30	34	39	45
Flow (m³/h)	36.00	32.00	28.10	24.10	20.10	16.10	12.10	8.10	4.10	0.10

Model 36: MS-4iPC41-52-245-3000-A/D (Max Flow: 41 m³/h, Max Head: 52m)
Head (m)	1	6	12	17	23	28	34	39	45	52
Flow (m³/h)	41.00	36.40	31.80	27.30	22.70	18.20	13.60	9.10	4.50	0.10

Model 37: MS-4iPC41-60-300-4000-A/D (Max Flow: 41 m³/h, Max Head: 60m)
Head (m)	1	7	14	20	27	33	40	46	53	60
Flow (m³/h)	41.00	36.40	31.80	27.30	22.70	18.20	13.60	9.10	4.50	0.10

Much Solar 4iPC AC DC Plastic Impeller SOLAR PUMP HYDRAULIC PERFORMANCE CURVES

1748954953 Much Solar 4iPC AC DC Stainless Steel Impeller SOLAR PUMP HYDRAULIC PERFORMANCE CURVES (4)

1748954951 Much Solar 4iPC AC DC Stainless Steel Impeller SOLAR PUMP HYDRAULIC PERFORMANCE CURVES (3)

1748954949 Much Solar 4iPC AC DC Stainless Steel Impeller SOLAR PUMP HYDRAULIC PERFORMANCE CURVES (2)

1748954945 Much Solar 4iPC AC DC Stainless Steel Impeller SOLAR PUMP HYDRAULIC PERFORMANCE CURVES (1)

3iPC A/D

Much Solar 3″– 3iPC AC DC Solar submersible water pumps

#	Model	Pump Voltage (DC)	(AC) Voltage	(DC) Voltage	Power	Max. Flow	Max. Head	Outlet	Cable	Solar panel open circuit voltage (VOC)	Solar Panel Power
1	MS-3iPC3.8-95-72-750-A/D	72V	85V-280V	80V-430V	750W	3.8m³/h	95m	1.25″	2m	<430V	≥1.3*PUMP POWER
2	MS-3iPC3.8-123-110-1100-A/D	110V	85V-280V	80V-430V	1100W	3.8m³/h	123m	1.25″	2m	<430V	≥1.3*PUMP POWER
3	MS-3iPC3.8-155-110-1300-A/D	110V	85V-280V	80V-430V	1300W	3.8m³/h	155m	1.25″	2m	<430V	≥1.3*PUMP POWER
4	MS-3iPC3.8-180-110-1500-A/D	110V	85V-280V	80V-430V	1500W	3.8m³/h	180m	1.25″	2m	<430V	≥1.3*PUMP POWER
5	MS-3iPC5.2-75-72-750-A/D	72V	85V-280V	80V-430V	750W	5.2m³/h	75m	1.5″	2m	<430V	≥1.3*PUMP POWER
6	MS-3iPC5.5-65-72-750-A/D	72V	85V-280V	80V-430V	750W	5.5m³/h	65m	1.5″	2m	<430V	≥1.3*PUMP POWER
7	MS-3iPC6-84-110-1100-A/D	110V	85V-280V	80V-430V	1100W	6m³/h	84m	1.5″	2m	<430V	≥1.3*PUMP POWER
8	MS-3iPC6-125-110-1500-A/D	110V	85V-280V	80V-430V	1500W	6m³/h	125m	1.5″	2m	<430V	≥1.3*PUMP POWER
9	MS-3iPC7-46-72-750-A/D	72V	85V-280V	80V-430V	750W	7m³/h	46m	1.5″	2m	<430V	≥1.3*PUMP POWER
10	MS-3iPC8-62-110-1100-A/D	110V	85V-280V	80V-430V	1100W	8m³/h	62m	1.5″	2m	<430V	≥1.3*PUMP POWER
11	MS-3iPC8-90-110-1500-A/D	110V	85V-280V	80V-430V	1500W	8m³/h	90m	1.5″	2m	<430V	≥1.3*PUMP POWER

Performance Data for 3iPC AC DC Plastic Impeller Series Pump Much Solar

Model 1: MS-3iPC3.8-95-72-750-A/D (Max Flow: 3.8 m³/h, Max Head: 95m)
Head (m)	1	11	21	32	42	53	63	74	84	95
Flow (m³/h)	3.80	3.41	3.02	2.63	2.24	1.85	1.46	1.07	0.68	0.10

Model 2: MS-3iPC3.8-123-110-1100-A/D (Max Flow: 3.8 m³/h, Max Head: 123m)
Head (m)	1	10	19	28	37	46	55	64	73	82	91	100	109	118	123
Flow (m³/h)	3.80	3.50	3.20	2.90	2.60	2.30	2.00	1.70	1.40	1.10	0.80	0.50	0.30	0.20	0.10

Model 3: MS-3iPC3.8-155-110-1300-A/D (Max Flow: 3.8 m³/h, Max Head: 155m)
Head (m)	1	12	23	34	45	56	67	78	89	100	111	122	133	144	155
Flow (m³/h)	3.80	3.48	3.16	2.84	2.52	2.20	1.88	1.56	1.24	0.92	0.60	0.40	0.30	0.20	0.10

Model 4: MS-3iPC3.8-180-110-1500-A/D (Max Flow: 3.8 m³/h, Max Head: 180m)
Head (m)	1	14	27	40	53	66	79	92	105	118	131	144	157	170	180
Flow (m³/h)	3.80	3.46	3.12	2.78	2.44	2.10	1.76	1.42	1.08	0.74	0.50	0.40	0.30	0.20	0.10

Model 5: MS-3iPC5.2-75-72-750-A/D (Max Flow: 5.2 m³/h, Max Head: 75m)
Head (m)	1	9	17	25	33	41	49	57	65	75
Flow (m³/h)	5.20	4.65	4.10	3.55	3.00	2.45	1.90	1.35	0.80	0.10

Model 6: MS-3iPC5.5-65-72-750-A/D (Max Flow: 5.5 m³/h, Max Head: 65m)
Head (m)	1	8	15	22	29	36	43	50	57	65
Flow (m³/h)	5.50	4.94	4.38	3.82	3.26	2.70	2.14	1.58	1.02	0.10

Model 7: MS-3iPC6-84-110-1100-A/D (Max Flow: 6 m³/h, Max Head: 84m)
Head (m)	1	10	19	28	37	46	55	64	73	84
Flow (m³/h)	6.00	5.36	4.72	4.08	3.44	2.80	2.16	1.52	0.88	0.10

Model 8: MS-3iPC6-125-110-1500-A/D (Max Flow: 6 m³/h, Max Head: 125m)
Head (m)	1	10	19	28	37	46	55	64	73	82	91	100	109	118	125
Flow (m³/h)	6.00	5.53	5.06	4.59	4.12	3.65	3.18	2.71	2.24	1.77	1.30	0.83	0.36	0.20	0.10

Model 9: MS-3iPC7-46-72-750-A/D (Max Flow: 7 m³/h, Max Head: 46m)
Head (m)	1	6	11	16	21	26	31	36	41	46
Flow (m³/h)	7.00	6.26	5.52	4.78	4.04	3.30	2.56	1.82	1.08	0.10

Model 10: MS-3iPC8-62-110-1100-A/D (Max Flow: 8 m³/h, Max Head: 62m)
Head (m)	1	7	13	19	25	31	37	43	49	62
Flow (m³/h)	8.00	7.17	6.34	5.51	4.68	3.85	3.02	2.19	1.36	0.10

Model 11: MS-3iPC8-90-110-1500-A/D (Max Flow: 8 m³/h, Max Head: 90m)
Head (m)	1	10	19	28	37	46	55	64	73	90
Flow (m³/h)	8.00	7.13	6.26	5.39	4.52	3.65	2.78	1.91	1.04	0.10

Much Solar 3iPC AC DC Plastic Impeller SOLAR PUMP HYDRAULIC PERFORMANCE CURVES

1746699996 3iPC AC DC Solar Submersible Water Pumps PV 430V Series HYDRAULIC PERFORMANCE CURVES – Much Solar

AC DC Solar Submersible Water Pumps PV 430VDC AC220V Series – Much Solar

Product Description

Key Features

PRODUCT

Contact Info

Product Category

Home Solar System

Solar Battery

Solar Lights

Solar Panel

Solar Inverter

Hot Products

400W Solar Panel

5500W Hybrid Inverter

200W Solar Flood Light

12V 200AH Gel Battery

100A MPPT Controller

Get Free Help – Message Us Today
