Best 192V 240V 360V 384V 50 60 80 100 120 Amp Mppt Solar Panel Charge Controller Regulator for Solar Pv System

Description

Much Solar Much-H series MPPT controller is an advanced, efficient and versatile photovoltaic product. It uses innovative maximum power point tracking technology to significantly improve the energy efficiency of solar energy systems with a conversion efficiency of 97%.
The controller adopts intelligent battery charging management and has temperature compensation function to effectively manage the battery and extend the battery life.
The controller integrates RS485 communication interface, which can provide communication protocol, which is convenient for customers to integrate and manage.

Product Features:
1. Intelligent maximum power tracking technology
2. High precision and high effciency with DSP chip control
3. The widely PV range voltage input , three s tage charging technology
4. The photovoltaic/battery connection reverse protection short-circuit protection /over current protection
5. Display technology parameter with 7 inch touch screen
6. Rs485 remote communication and data transmission(optional)

Parameter

1. Product name:MPPT Solar Charge Controller
2. Brand Name:Much Solar
3.Model : MPPT 192V 240V 360V 384V 50A 60A 80A 100A 120A
4. Max Solar Input Voltage (VOC) :450VDC 750VDC
5.Type of protection:Short Circuit Protect
6.Display:LCD+LED
7.Warranty:18 Months

Product Details

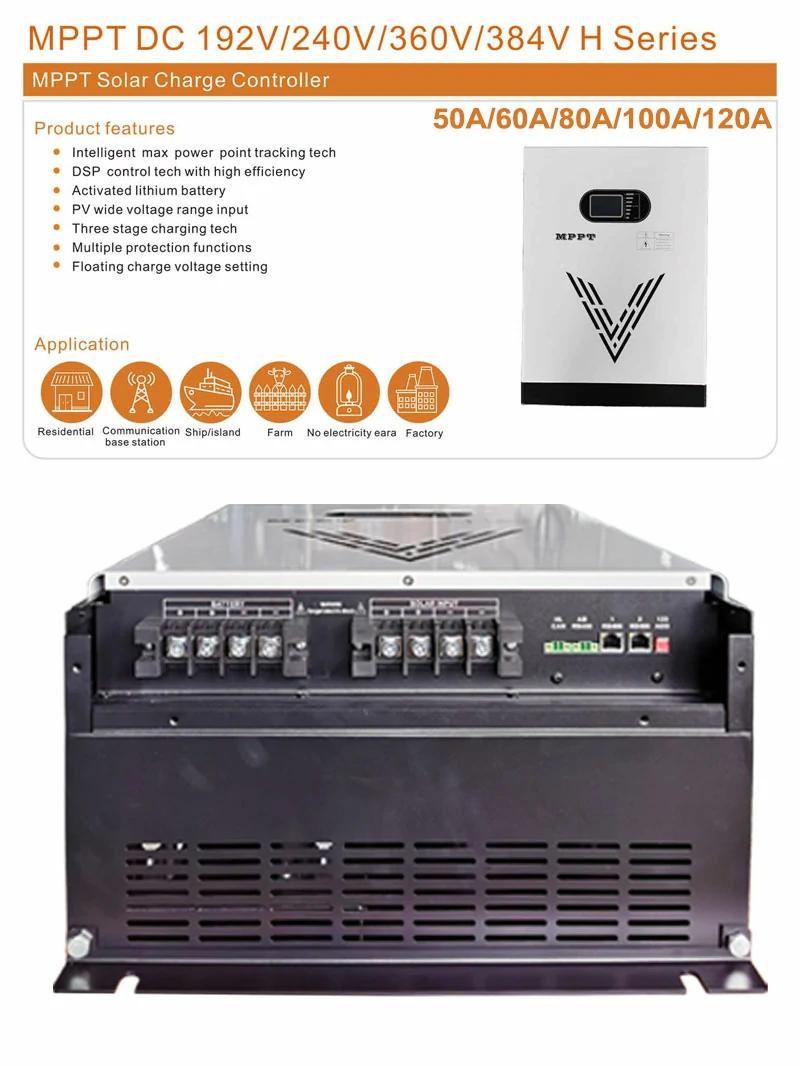

360v mppt charge controller 1 1

360v mppt charge controller 1 3

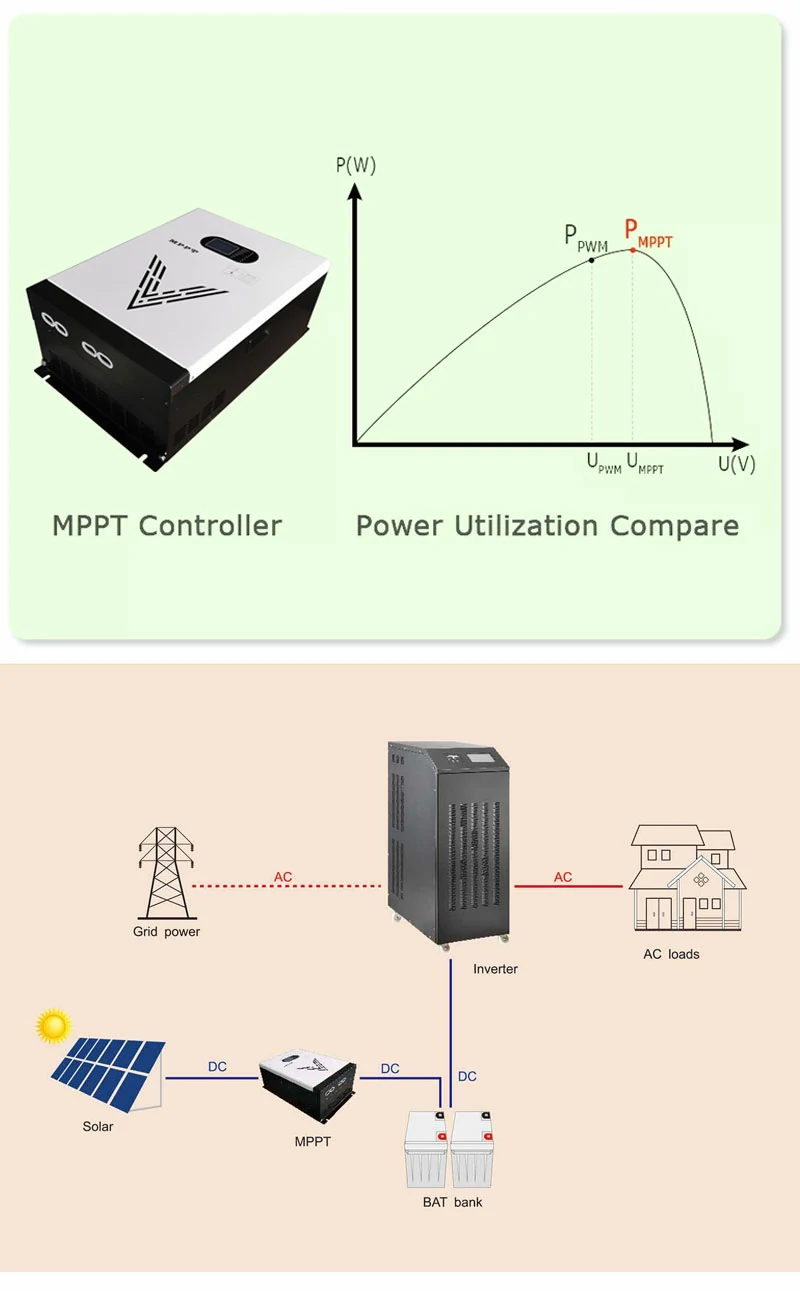

360v mppt charge controller 1 4

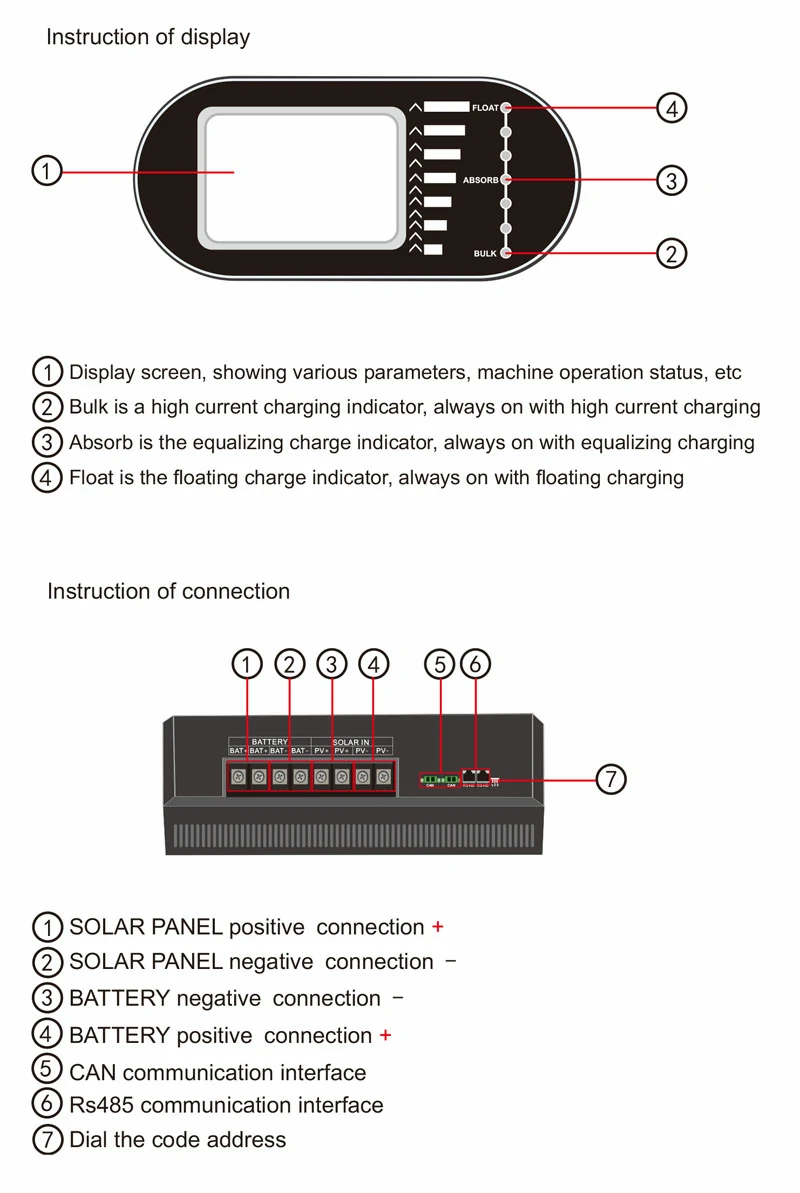

360v mppt charge controller 1 5

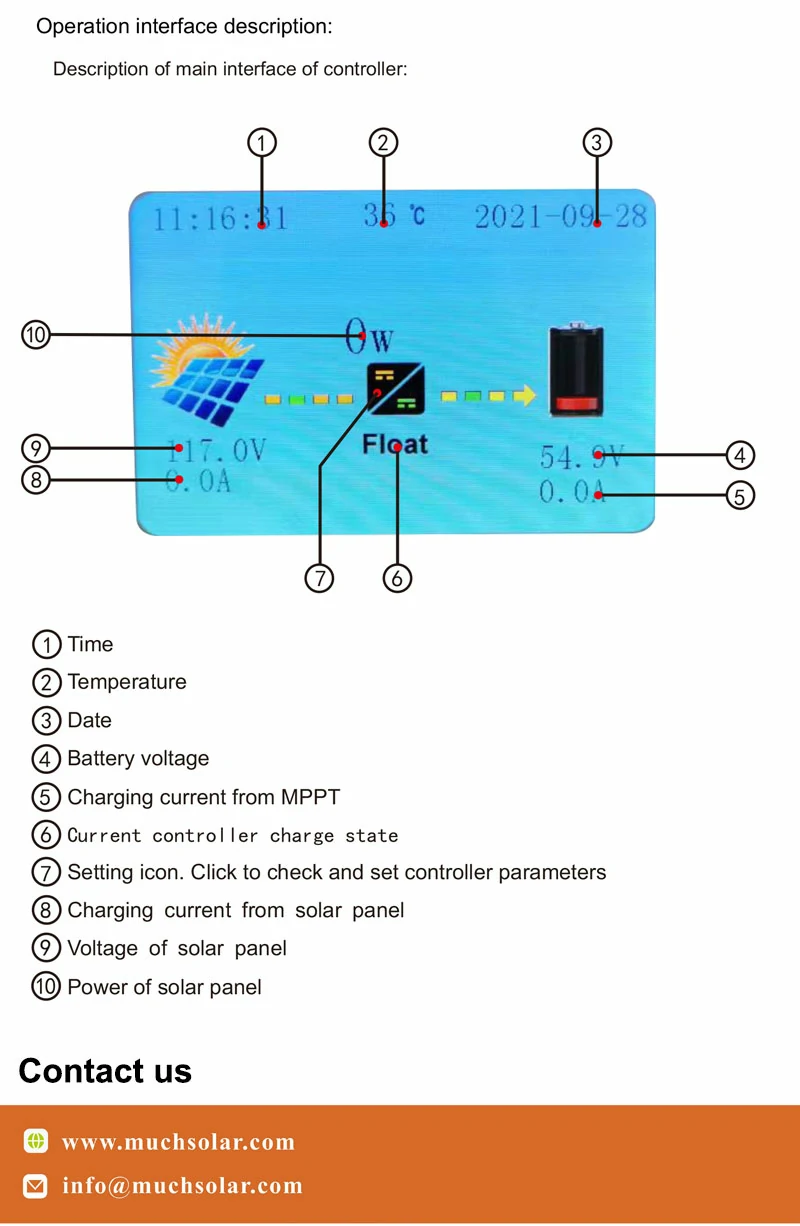

360v mppt charge controller 1 6

Specification
Much Solar DC 192V 240V 360V 384V  MPPT 50A 60A 80A 100A 120A Specification
ModelMuch-H 50AMuch-H 60AMuch-H 80AMuch-H 100AMuch-H 120A
Rated current50A60A80A100A120A
Max current51A61A81A101A121A
System voltage192V/220V/240V/360V/384V
Size:(L*W*H) mm700*490*185
package size
(L*W*H) mm
790″580*325
N.W. (KG)37.0 37.5 38.0 38.0 38.5
G.W.(KG)47.0 47.5 48.0 48.0 48.5
Charge modeMPPT Automatic maximum power point tracking
Charge methodThree stage:Boost,Equalize,Float
Start up time≤10s
Dynamic response time to recover≤500us
Quiescent dissipation≤2W
Efficiency≥96.5%
Identify range of battery voltage 192V: DC144V-240V 220V: DC160V-270V
 240V: DC180V-300V 360V: DC270V-450V
384V: DC288V-480V
MPPT working Range 192V: DC260V-450V 220V: DC260V-450V
 240V: DC280V-450V 360V: DC450V-750V
384V: DC450V-750V
Max PV input192V: 10KW/12KW/16.6KW/20KW/24KW 220V: 11KW/13. 2KW/18.7KW/22KW/26. 4KW
240V: 12KW/15KW/20KW/24KW/29KW 360V: 18KW/22KW/31KW/36KW/44KW
384V: 20KW/23KW/33KW/39KW/46KW
DisplayLCD+LED
Input polarity reverse
connection protection
Yes
Output polarity reverse connection protectionYes
Low voltage protectionYes
High voltage protectionYes
Short circuit protectionYes
Over temperature protection+85°C
Cooling methodair cooling, fan speed is regulated by temperature, when internal temperature is low; when the controller stops working, the fan stops working
Noicy50dB
humidity<95% (without condesing)
Height0-3000M
Temperature-20°C+40°C
Storage temperature-40°C–F70°C
*The above data is for reference. If there is any change, please refer to the real object.
